Product Details:
Payment & Shipping Terms:
|
| Warranty: | 2years | Driving Method: | 1/32scan, Constant Current |
|---|---|---|---|
| Package: | Wooden Case | Brightness: | 800nits /sqm |
| Contrast: | 4000:1 | Module Size: | 240X240mm |
| High Light: | indoor full color led display,LED Video Wall Screen |
||

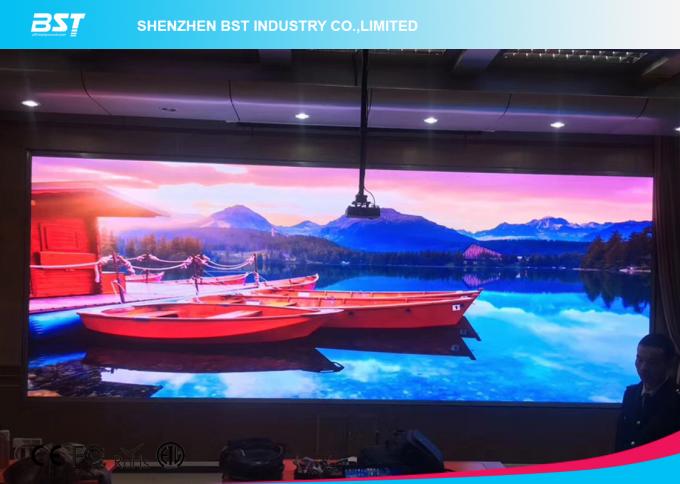

P2.5mm Ultral HD die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs
Products Description:
1) Price: we have the best competitive price, also have the same even better quality.
2) Performance Advantage: Best quality, high consistency, Big viewing angle
3) Quality: We control all steps, that's the guarantee of the quality
4) Service : Better service at same situation, better cooperation at same service!
5) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
7) To pictures and character, have clear, exquisite and real display effect
8) Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line
9) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Applications:
Usually apply for physical sports, advertisement, bank,station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment
Specification:
| SPECIFICATION | ||||
| IF-3 | IF-4 | IF-5 | IF-6 | |
| Physical Pitch | 3mm | 4mm | 5mm | 6mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 111,110pixels/sqm | 62,500pixels/sqm | 40,000 pixels/sqm | 27,777pixels/sqm |
| Module Dimensions (WXH)(mm) |
192X384 | 128X256 | 160X160 | 192X192 |
| Panel Dimensions(mm) | 768X768 | 768X768 | 960X960 | 960X960 |
| Physical Resolution of Module(WXH) |
64X128 | 32X64 | 32X32 | 32X32 |
| Physical Resolution of Panel(WXH) |
256X256 | 192X192 | 192X192 | 160X160 |
| Panel Material | Cold Steel | Cold Steel | Cold Steel | Cold Steel |
| Weight(sqm) | 28kg | 28kg | 42kg | 42kg |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Driving Method | 1/16scan | 1/16scan | 1/16scan | 1/16scan |
| Average Power Consumption |
300W/sqm | 280W/sqm | 240W/sqm | 200W/sqm |
| Refresh Rate | >1500Hz | >1500Hz | >1500Hz | >1500Hz |
| Brightess | ≥1,200nits | ≥1,200nits | ≥1,200nits | ≥1,200nits |
| Horizontal Viewing Angle |
160° | 160° | 160° | 160° |
| Vertical Viewing Angle |
140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rationg (Front/Rear) |
IP 40/IP21 | IP 40/IP21 | IP 40/IP21 | IP 40/IP21 |
| Operation Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
| Storage Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
Our main products include:
Indoor full color SMD: P1.6,P1.9,P2.5, P3, P4, P5, P6
Outdoor full color SMD: P5, P6, P8, P10 (high brightness),P16
Outdoor full color DIP: P8, P10 (high brightness)
Semi-outdoor single color SMD: P10 red/green/blue/white/purple etc.
Outdoor single color DIP: P10 red/ green/blue/white etc.
Why Choose us?
BST has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on
