Product Details:
Payment & Shipping Terms:
|
| Name: | Digital Advertising Display Boards | Protection Level:: | IP 40/IP21 |
|---|---|---|---|
| Working Voltage:: | AC 110V~220V±10% | Vertical Viewing Angle: | 140° |
| Horizontal Viewing Angle: | 160° | Brightess: | ≥1,200nits |
| Color: | Full Color | Refresh Rate: | >1920Hz |
| High Light: | hire led screen,LED video wall rental |
||

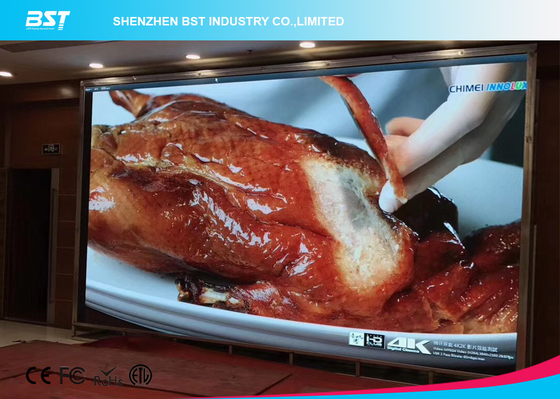

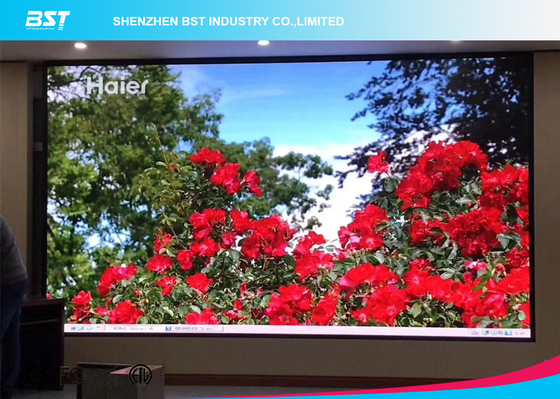

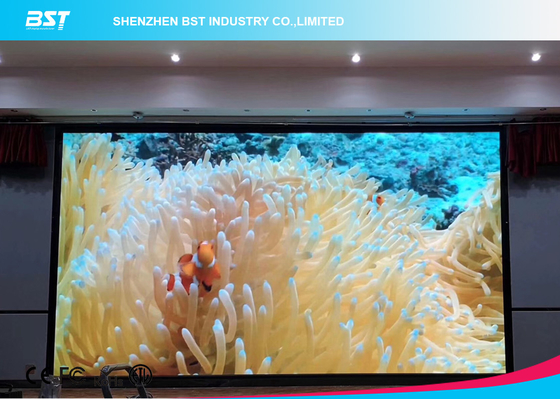

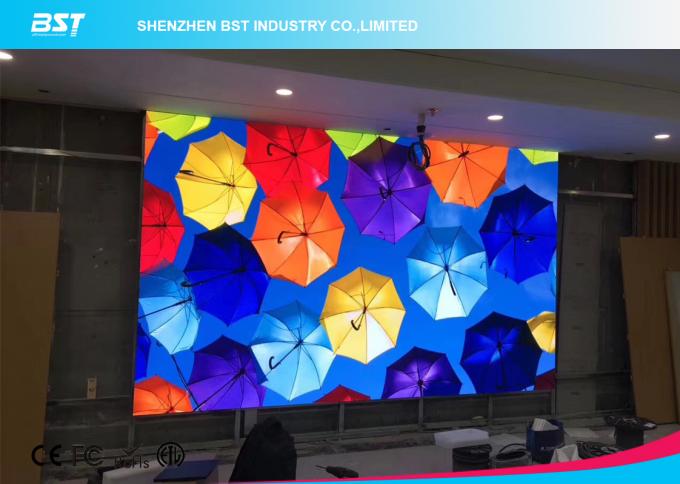

Full Color Digital Advertising Display Boards , Horizontal Hd LED Display
Digital Advertising Display Boards Feature
1.SMD2121 3 in 1 led encapsulation confirm wide view angle up to 140° for vertical and horizontal,and lower power consumption,energy saving.
2. Long life span over 50000Hours
3. Die-casting Aluminum material cabinet with slim thickness of 75mm ensure light weight, only 7kgs per panel, can be picked up by one hand, easy to install and dismantle, better for rental use,
4. High brightness up to 1500nits, close view distance,good performance.
5. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar.
6. Dot to dot maintainance, quick maintain and save cost.
7.No fans design, no noise caused, good environment protection.
8. Widely used for stage, concert, show, banquet, wedding,stage background,public advertising etc.
Digital Advertising Display Boards Parameters
| SPECIFICATION | |
| IRA-4 | |
| Physical Pitch | 4.81 |
| Pixel Configuration | SMD2121 |
| Pixel Density | 43,264 pixels/sqm |
| Module Dimensions (WXH)(mm) |
250X250 |
| Panel Dimensions(mm) | 500X500X75 / 500X1000X75 |
| No. of Modules Per Panel(WXH) |
2X2/2X4 |
| Physical Resolution of Module(WXH) |
52X52 |
| Physical Resolution of Panel(WXH) |
104X104/ 104X208 |
| Panel Material | Die-Casting Aluminum |
| Single Cabinet Weight |
8/14kg/panel |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000:1 |
| Average Power Consumption |
64/128 W/panel |
| Max Power Consumption |
192/384 W/panel |
| Operation Temp/ Humidity |
—10℃-60℃ /10%-60% |
| Storage Temp/ Humidity |
—30℃-60℃ /10%-60% |
| Refresh Rate | >1920Hz |
| Brightess | ≥1,200nits |
| Horizontal Viewing Angle |
160° |
| Vertical Viewing Angle |
140° |
| Expected Lifetime | 100,000Hrs |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Servicing | Front/Rear |
| IP Rationg (Front/Rear) |
IP 40/IP21 |
| Certification | CCC,CE,ETL,ROHS |
Digital Advertising Display Boards Application:
Sports Stadium, Outdoor Signage and advertisement, Entertainment centers, Building facilities, Community centers, Amusement parks, Auto Parts and Maintenance shops etc.
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact with sales in details.
Why choose BST
| 1. Our LED display signs have the ISO9001:2000 Quality System Certification; |
| 2. CE & RoHS Certification of our LED display signs; |
| 3. Excellent Technical Innovation; |
| 4. Contract Performance and Credibility; |
| 5. Price performance ratio; |
| 6. Modular LED display screens; |
| 7. LED displays with high brightness LED's; |
| 8. High ecperiences and know-how LED display products; |
| 9. Post sale assistance (after sale); |
| 10. Our LED display screens have a warranty up to 1-3 years (depending on configuration). |
| 11. Personalized sale and less than 24 hours response on all inquiries; |
