| Color: | Full Color | Type: | Outdoor Use |
|---|---|---|---|
| Size: | 256X256 | Material: | Steel |
| Feature: | Front Service,rear Service | Delivery Time: | 15-20days |
| Brightness: | ≥6,500nits | Refresh Rate: | >1920Hz |
| Package: | Wooden Case | Content: | Video,text, Picture Etc. |
| High Light: | led video display board,outdoor led panel |
||
Excent Vivid Image Front Service LED Display For Entertainment Events Advertising
Front Service LED Display Quick Detail:
1. Excent vivid image for advertising
2. Long lifespan and stable work, waterproof,
3. LED Display Cabinet design for easy install and dismantle.
4. Good quality with reasonable price.
5. Wide viewing angle: 140°(Horizontal )/140°(Vertical )
6. Ultral Brightness(cd/m2)≥ 7500
Front Service LED Display Application:
Stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, Stadium perimeter, mobile media, bus station, schools, telecommunications,entertainment events, business establishments, such as banks, etc;
Front Service LED Display Description:

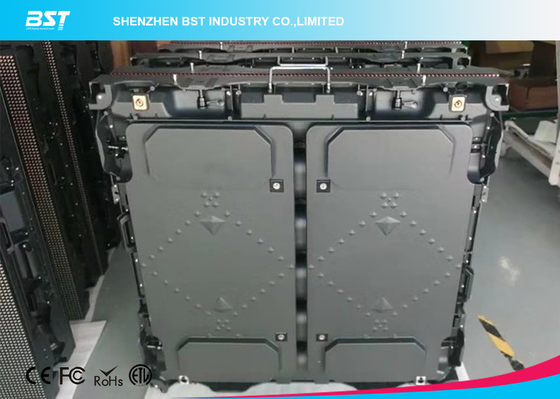

1, Maintenance can be conducted from either front or rear side.
This is front maintenance steel cabinet with frame and hydraulic lever, easy to maintain from front;
2, It can be installed without taking the space for maintenance channel into consideration, thus improving your work efficiency.
3, Long-term Brightness:7500-nit brightness(for outdoor full color) throughout product lifetime of the LED display
4, It Controlled with PC by synchronization, with high refresh rate;
5, 1% spare parts provided for customers to replace defective ones in the future.
Front Service LED Display Specifications:
| SPECIFICATION | ||||
| ODF-4 | ODF-6 | ODF-8 | ODF-10 | |
| Physical Pitch | 4.81mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD3535 | SMD3535 / DIP346 |
| Pixel Density | 43,264 pixels/sqm | 22,500 pixels/sqm | 15,625 pixels/sqm | 10,000pixels/sqm |
| Module Dimensions (WXH)(mm) | 250X250 | 320X320 | 256X256 | 320X320 |
| Panel Dimensions(mm) | 1000X1000 | 1280X960 | 1280X960 | 1280X960 |
| No. of Modules Per Panel(WXH) | 4X4 | 4X3 | 4X3 | 4X3 |
| Physical Resolution of Module(WXH) | 52X52 | 48X48 | 40X40 | 32X32 |
| Physical Resolution of Panel(WXH) | 208X208 | 192X144 | 160X120 | 128X96 |
| Panel Material | Cold Steel | Cold Steel | Cold Steel | Cold Steel |
| Weight per panel (kg) | 65 | 79 | 79 | 79 |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Driving Method | 1/9 scan | 1/4 scan | 1/4 scan | 1/4scan or 1/2scan |
| Average Power Consumption | 250 W/panel | 360 W/panel | 360 W/panel | 360 W/panel |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightess | ≥5,500nits | ≥6,500nits | ≥6,500nits | ≥6,500nits |
| Horizontal Viewing Angle | 140° | 160° | 160° | 160° /110° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° / 70° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rationg (Front/Rear) | IP 65/IP54 | IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
| Working Temperature | —20℃-50℃/—40℃-60℃ | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
| Working Humidity | 10%-90%RH/10%-85%RH | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
