| Name: | Rental LED Display | Protection Level:: | IP43 |
|---|---|---|---|
| Working Voltage:: | AC 110V~220V±10% | Module Dimensions: | 256X256mm |
| Viewing Angle:: | H 140°/V140° | Weight Of One Cabinet(Kg):: | 7kg |
| Color: | Full Color | Feature: | Ultra Thin |
| High Light: | hire led screen,LED video wall rental |
||

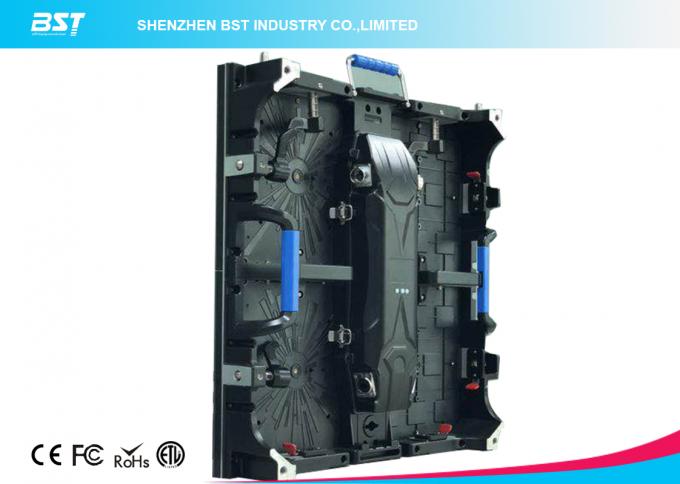

Ultra-Thin Rental LED Display With Good Heat Emission Capability Quick Installation
Rental LED Display Feature
1. Ultra-thin & ultra-light
2. Die -casting cabinets, high precision with seamless splicing
3. Standard cabinet size: 500x500mm, convenient for area calculation
4. Highly effective & quick for transportation and screen assembling
5. High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
6. Good heat emission capability.
Rental LED Display Parameters
| SPECIFICATION | ||
| IRA-2X | IRA-4 | |
| Physical Pitch | 2.6mm | 4.81 |
| Pixel Configuration | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/sqm | 43,264 pixels/sqm |
| Module Dimensions (WXH)(mm) |
250X250 | 250X250 |
| Panel Dimensions(mm) | 500X500X75 / 500X1000X75 |
500X500X75 / 500X1000X75 |
| No. of Modules Per Panel(WXH) |
2X2/2X4 | 2X2/2X4 |
| Physical Resolution of Module(WXH) |
96X96 | 52X52 |
| Physical Resolution of Panel(WXH) |
192X192/ 192X384 | 104X104/ 104X208 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight |
8/14kg/panel | 8/14kg/panel |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 |
| Average Power Consumption |
64/128 W/panel | 64/128 W/panel |
| Max Power Consumption |
192/384 W/panel | 192/384 W/panel |
| Operation Temp/ Humidity |
—10℃-60℃ /10%-60% | —10℃-60℃ /10%-60% |
| Storage Temp/ Humidity |
—30℃-60℃ /10%-60% | —30℃-60℃ /10%-60% |
| Refresh Rate | >1920Hz | >1920Hz |
| Brightess | ≥1,200nits | ≥1,200nits |
| Horizontal Viewing Angle |
160° | 160° |
| Vertical Viewing Angle |
140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Servicing | Front/Rear | Front/Rear |
| IP Rationg (Front/Rear) |
IP 40/IP21 | IP 40/IP21 |
| Certification | CCC,CE,ETL,ROHS | CCC,CE,ETL,ROHS |
Rental LED Display Application:
Sports Stadium, Outdoor Signage and advertisement, Entertainment centers, Building facilities, Community centers, Amusement parks, Auto Parts and Maintenance shops etc.
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact with sales in details.
Why choose BST
| 1. Our LED display signs have the ISO9001:2000 Quality System Certification; |
| 2. CE & RoHS Certification of our LED display signs; |
| 3. Excellent Technical Innovation; |
| 4. Contract Performance and Credibility; |
| 5. Price performance ratio; |
| 6. Modular LED display screens; |
| 7. LED displays with high brightness LED's; |
| 8. High ecperiences and know-how LED display products; |
| 9. Post sale assistance (after sale); |
| 10. Our LED display screens have a warranty up to 1-3 years (depending on configuration). |
| 11. Personalized sale and less than 24 hours response on all inquiries; |
