Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Display Screen | Viewing Angle:: | H:160° V:140° |
|---|---|---|---|
| LED Encapsulation:: | SMD3535 | Physical Pixel Density:: | 10000dots/sqm |
| Input Voltage:: | AC220V/50Hz ±10% | Operating Environment:: | Humidity:10%95%RH |
| High Light: | curved led panels,hd led screen |
||
Flexible SMD 3535 Curved Led Screen P10 Outdoor Led Display With High Brightness
Quick Detail:
1. Good quality, the brightness is adjustability
2. Good consistency,large stock
3, 2 year warranty
4, 45degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
5. 140 degree wide viewing angle
6. More than 100,000hours life span

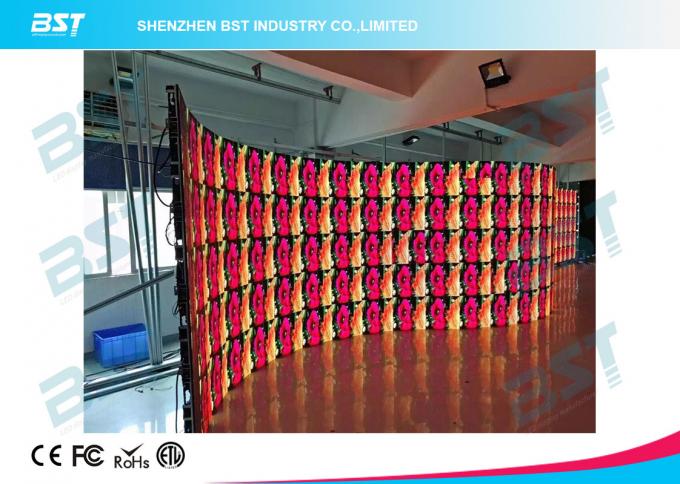

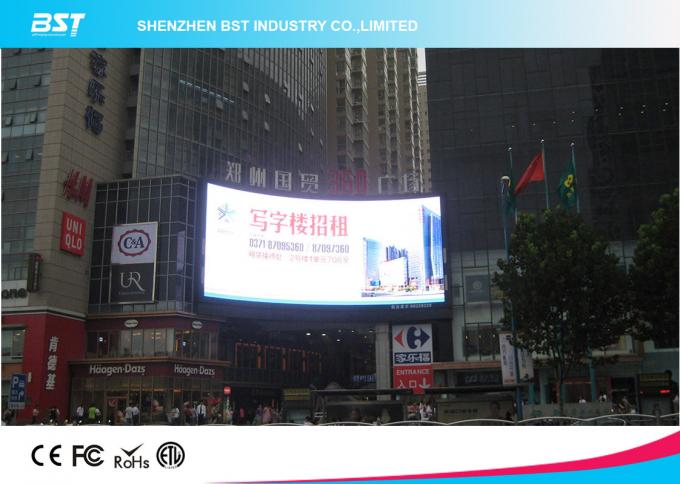

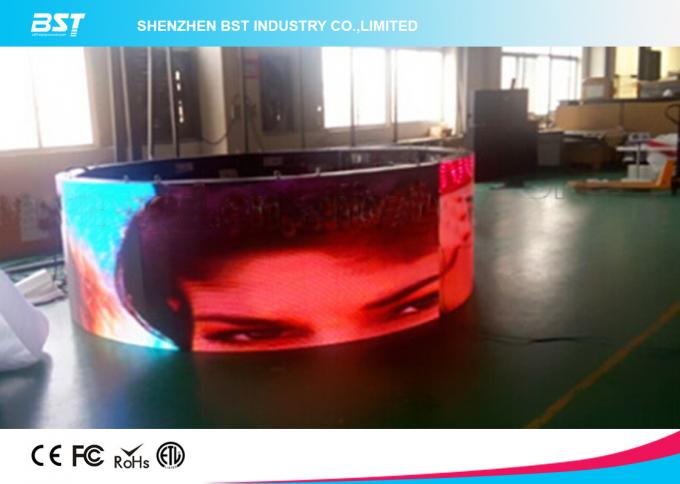

7. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
8, High resolution, high contrast ratio, wide viewing angle.
9. We make best design with high cost- efficiency due to different demands and we can offer OEM service
as well.
10. The brightness can be adjustable for different environment.
11. Easy to maintain and Operation
Specification:
|
Item |
Technical Specification |
|
Pixel |
Pixel pitch: 10mm |
|
Pixel configuration: SMD3535 1R1G1B |
|
|
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm |
|
|
Module resolution: 16×16pixels |
|
|
Module |
Module size: 160mmx160mm |
|

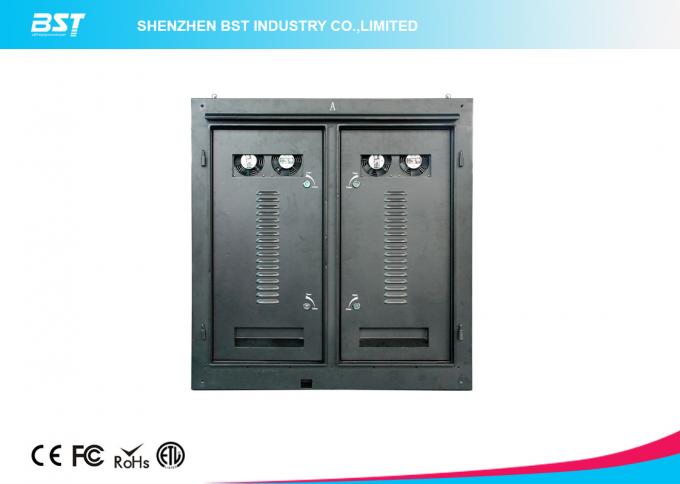

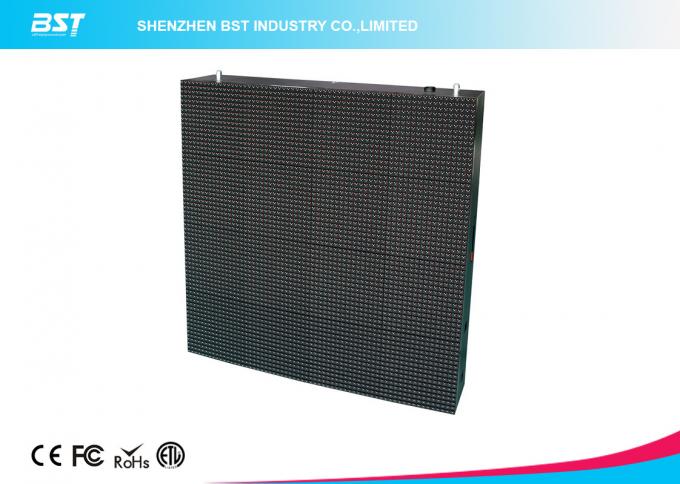

Cabinet size: 1280mm×960mm×150mm |
|
|
Cabinet |
Cabinet resolution: 12288 pixels |
|
Cabinet material: Steel |
|
|
Gross weight: 65kg |
|
|
Module quantity: 48pcs= 8(w) x 6(h) |
|
|
Power consumption : Max.:800W/m² Everage: 300W/m² |
|
|
Screen parameter |
Drive method: 1/4 scan |
|
Brightness: 5000cd/m² |
|
|
IC driver: MBI 5214 |
|
|
Density: 10000 pixel/m² |
|
|
Whole display flatness: ≤ 1mm juncture |
|
|
Best view distance: ≥ 10m |
|
|
Viewing angle: Horizontal: 140° Vertical: 140° |
|
|
Humidity(RH): ≤ 90~95% |
|
|
Working temperature: from -30°C to +60°C |
|
|
Working voltage: AC220V/110V±10% |
|
|
Refresh frequency: ≥ 1500Hz |
|
|
Frame rate: ≥ 60Hz |
|
|
Protection grade: IP65 |
|
|
MTBF: More than 10000hrs |
|
|
Life time: 100,000 hrs |
|
|
Control system |
Control system: Linsn |
|
Signal interface: DVI |
|
|
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m |
|
|
Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000, WIN8) |
P10mm flexible Curved LED display
Application:
Video, graphics, stadiums, banks, stock exchange centers, bus station, schools, railways, airports, harbors, telecommunications, studio, sports, animation, advertising, customs, exhibitions,shopping malls, etc;
Q1: What's the pixel pitch for Outdoor LED Display Screen ?
A1: Indoor&Outdoor (4mm/5mm/6mm / 8 mm/ 10mm/12mm/16mm )
Q2: Where is it used for?
A2:
•---Outdoor advertising, digital billboards, advertising in big companies
•---Sports halls, fields, playgrounds.
•---Airports, bus stations and railway passenger terminals.
•---Facades of shopping malls, department stores, banks and car dealerships.
•---Architecture and social projects, information systems in cities.
•---Show-business, concerts, festivals, motor shows and other public events.
environment.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar or Linsn controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Linsn. Also support other controlling system, like Novastar, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.

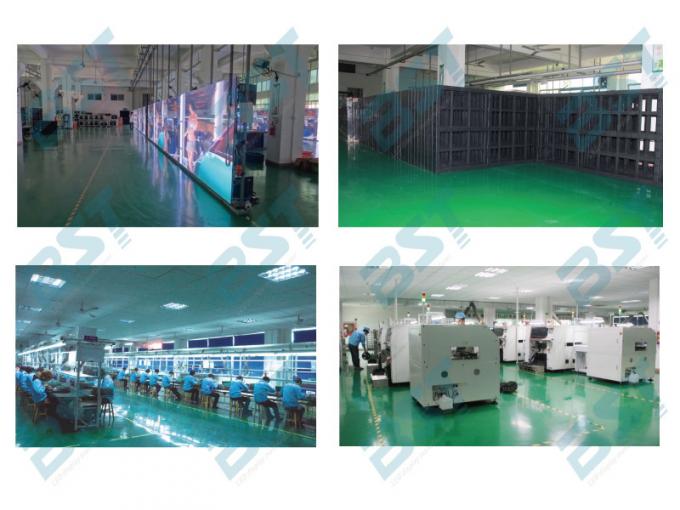

BST has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
