P2.5mm Ultral HD die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

China P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs supplier
P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs supplier P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs supplier

Large Image :  P2.5mm Ultral HD die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

Product Details:

Place of Origin: China
Brand Name: BST
Certification: CE,FCC, CCC, Rohs,ISO
Model Number: BST-IF2.5

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm / Piece
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7 - 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000sqm per month
Detailed Product Description
Warranty: 2years Driving Method: 1/32scan, Constant Current
Package: Wooden Case Brightness: 800nits /sqm
Contrast: 4000:1 Module Size: 240X240mm

P2.5mm Ultral HD die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs



Products Description:



 1)  Price: we have the best competitive price, also have the same even better quality.
 2)  Performance Advantage: Best quality, high consistency, Big viewing angle
 3)  Quality: We control all steps, that's the guarantee of the quality
 4)  Service : Better service at same situation, better cooperation at same service!

 5)  High intensity and can be adjusted, so can meet the request of the customers  according the application environment.
  7) To pictures and character, have clear, exquisite and real display effect
  8) Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line
  9) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs



Applications:



Usually apply for physical sports, advertisement, bank,station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment




Specification:



1.1.1LED Parameters

Item

Luminous Intensity

Viewing Angle(H/V)

Wavelength

Test Condition

Animation Video Outdoor LED Advertising Display , P3 Indoor 1R1G1B  Full HD LED Boards

Red LED

150-200mcd

160º/120º

620-630nm

25℃,20mA

Green LED

260-330mcd

160º/120º

520-535nm

25℃,20mA

Blue LED

55-65mcd

160º/120º

465-475nm

25℃,20mA

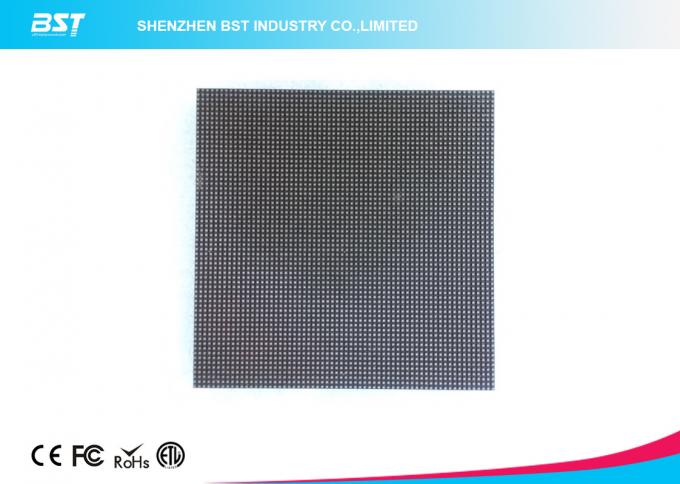

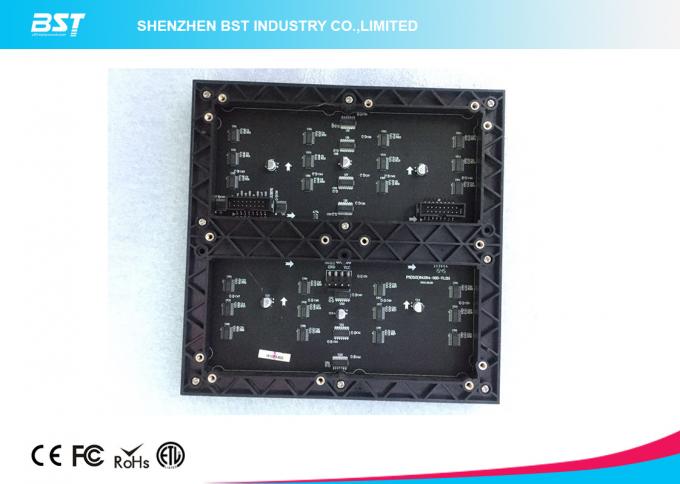

1.1.2Module Parameters

Pixel Pitch

2.5mm

P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

Pixel Configuration

1R1G1B SMD2121 3in1

Module Resolution

96dots*96dots for real

Module Pixels

9216 dots

Module Size

240mm*240mm

Module Weight

0.5KG

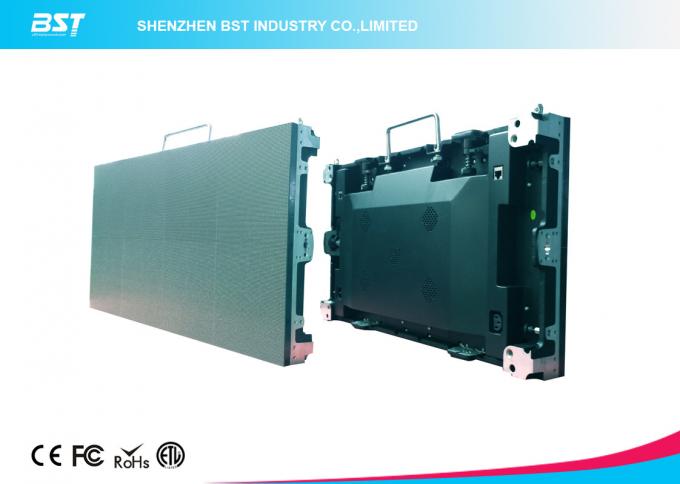

1.1.3Cabinet Parameters

Cabinet Size(W*H*D)

480*480*160(mm) or Customized

 P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

Cabinet Resolution

192dot*192dot for real

Module Quantity

4 pcs

Cabinet Pixels

36864 dots

Pixel Density

160000 dot/sqm

Avg. Power Consumption

200W/sqm

Max. Power Consumption

600W/sqm

Material

Die casting Aluminum

Cabinet Weight

7KG for aluminum cabinet



1.1.4Screen Parameters

Brightness

≥800cd/sqm

Contrasts (Max. /Min.)

1.1:1

Driving Method

1/32 scan constant current

View Angle

Horizontal 160° Vertical 120°

Optimal Viewing Distance

3m to 50m

Brightness Control

Red, Green and Blue 256 Grade/Each

Fresh Frequency

≥1500Hz

Frame Frequency

50 - 60Hz

Input Voltage

AC220V/50Hz or AC110V/60Hz

Defects Rate

≤0.00001

Screen Weight

≤28kg/sqm for Aluminum cabinet

MTBF

>10,000 hours

Life Span

≥100,000 hours

Brightness Uniformity

<3%

Earth Leakage Current

<3mA

Protective Grade

IP45

Temperature-operating

﹣40°C to 60°C

Humidity-operating

10% to 90%

Operating System

Windows98/me/2000/NT/XP/Win7/Win8/Win10



Our main products include:

Indoor full color SMD: P1.6,P1.9,P2.5, P3, P4, P5, P6

Outdoor full color SMD: P5, P6, P8, P10 (high brightness),P16

Outdoor full color DIP: P8, P10 (high brightness)

Semi-outdoor single color SMD: P10 red/green/blue/white/purple etc.

Outdoor single color DIP: P10 red/ green/blue/white etc.



P2.5mm Indoor Full color LED Display

P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDsP2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs





Controller and Accessory



P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDsP2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

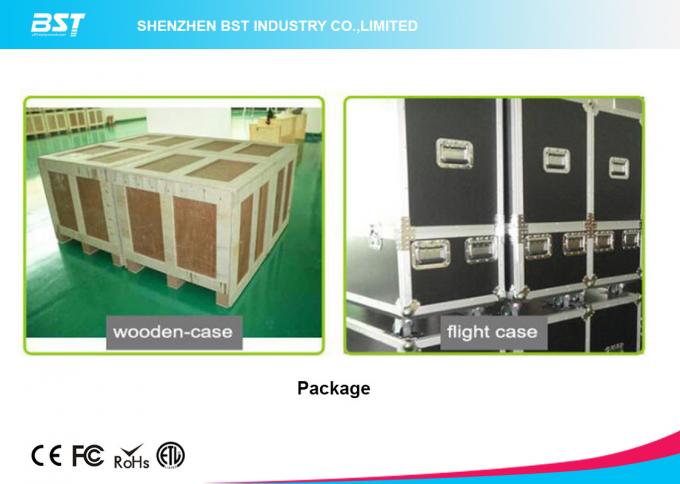

Packing and Shipment

P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs

P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs





Why Choose us?



   BST has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.



 Pre-sale service:

 1. Reply enquiries in 24 hours.

 2. Market research and forecast for customer.

 3. Provide unique and professional solutions based on customer's requirement.

 4. Data sheet and samples offer.

 5. Other services, such as special packing design, factory visiting and so on.



In-sale service:

1. Tracking report in producing.

2. Quality test report for every order.

3. Photos and videos as per customer's requirement.

4. Free spare parts.



After-sale service:

1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on

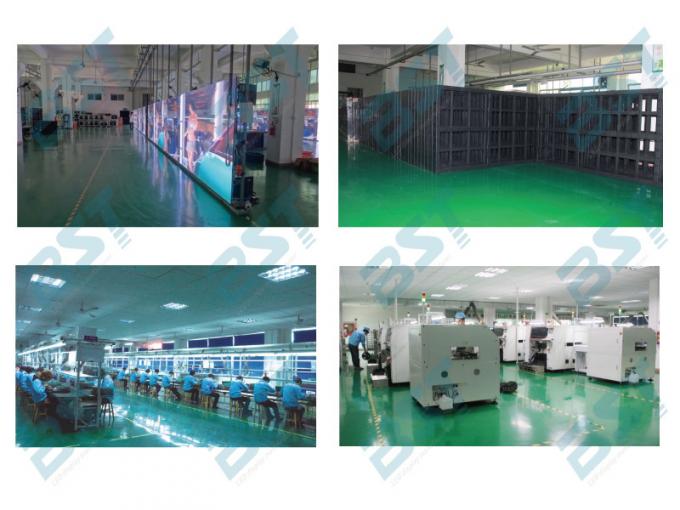

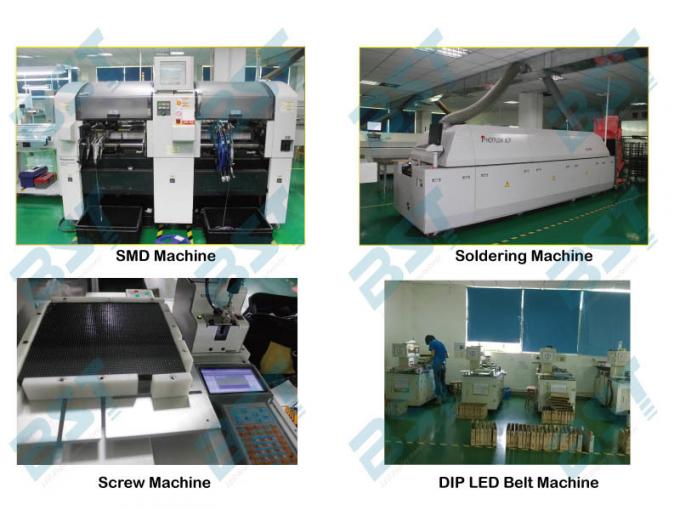

Workshop



P2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDsP2.5mm Ultral HD  die-casting aluminum indoor Full Color LED screen With SMD2121 LEDs
