Product Details:
Payment & Shipping Terms:
|
| LED Encapsulation:: | Epistar Black SMD 2121 | Brightness:: | >1200cd/sqm |
|---|---|---|---|
| Power Supply:: | Meanwell/YHY/G-energy | Working Voltage:: | AC 110V~220V±10% |
| Drive IC:: | JXI5020/MBI5120MBI5124 | Viewing Angle:: | H 140°/V140° |
| High Light: | hire led screen,LED video wall rental |
||
SMD 1R1G1B Rental LED Display Screen , P4.81 Indoor Led Billboard Die Casting aluminum
Light: Cabinet size 500mm*1000mm, only14kg comparing to more than 25 kg of common cabinet. Saving time and labor cost.
Thin: It is die-casting aluminum cabinet, thus it is featured by high strength, toughness, precision and it is hard to be deformed. The edge is just 70mm comparing to the 160mm of common cabinet.
High Quality: Using latest driving IC technology ,low brightness and high grey level , high refresh rate ;High quality brand LED chip and high anti- ESD capacity
Fast: There is fast locking device in four corners. It takes only 10 seconds to assemble one cabinet by pushing the handle 90 degree. It is fast and precise assembling. Can be fastly built-up and dismantled with fast locks on each panel .
High Contrast: Completely black LED with high contrast.
Easy: The cabinet is modular designed, each cabinet of the screen can be easily dismantled and assembled(replaced).
Noiseless: No fans, mute when operation,and good heat dissipation
Compatible: New structure design satisfies hoisting and ground-support assembling. P3.91, P4.81, P5.95,P6.25
View Angle: SMD technology , large viewing angle (H >140°H ; V >140°W) and high flatness ;
Low: Excellent heat dissipation design, no fans and air conditioning are required. Low noise, light weight, low cost for transportation and assembling without tools with low cost for assembling.
Parameters of BST-IRD-4.81
| Itemms | Parameter | ||
| Pixel Pitch | PH3.91mm | PH4.81mm | PH6.25mm |
| Module Resolution(W*H) | 128(W)*256(H) | 104(W)*208(H) | 80(W)*160(H) |
| Pixel Configuration | 1R1G1B(in 3 n 1) | ||
| LED Encapsulation | Black SMD 2121 | Black SMD 2121 | Black SMD3528 |
| Pixel Density | 65536/ Pixel m2 | 43264 Pixel /m2 | 25600/ Pixel m2 |
| Driving Method | 1/16 Scan | 1/15 Scan | 1/13 Scan |
| Refresh Frequency | ≥1500Hz | ≥1200Hz | ≥1200Hz |
| Driver IC | Special constant current IC with hight refresh rate & hight grey scale | ||
| Grey Scale | 16Bit(depending on zhe system and ICconfiguration) | ||
| Cabinet Size | 500*1000mm | ||
| White balance Brighthess | ≥1200cd/ m2 | ≥1200cd/ m2 | ≥1500cd/ m2 |
| Color Temperature | 8000K±500 (adjustable) | ||
| Viewing Angle | Horizontal 140°Vetical 140° | ||
| Optimal Viewing Distance | ＞4m | ＞4m | ＞5m |
| Working Voltage | AC 220V/110V ±10% | ||
| Module voltage | DC4.2V | ||
|
Max Power Consumption /per module |
400W/PCS | 400W/PCS | 400W/PCS |
|
Avg.Power Consumption /per module |
120W/PCS | 120W/PCS | 120W/PCS |
| Lifetime | 50000hours | ||
| Operating Temperature | –10℃ ～ 65℃ | ||
| Net weight | 14Kg/pcs | 14Kg/pcs | 14Kg/pcs |
|
|
Testing
Controller connection and Accessory

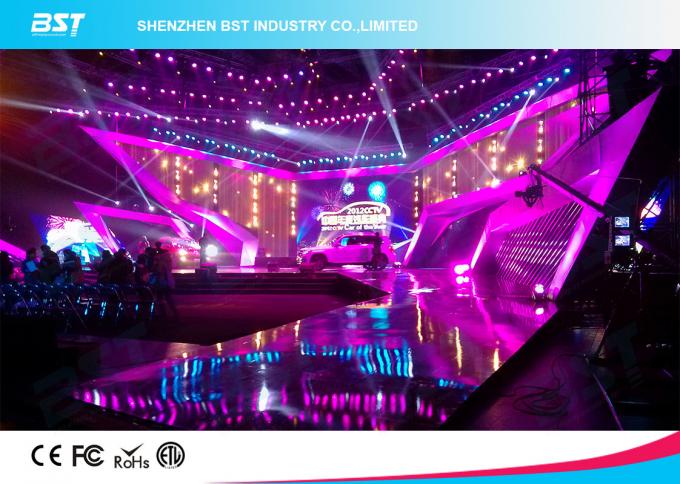

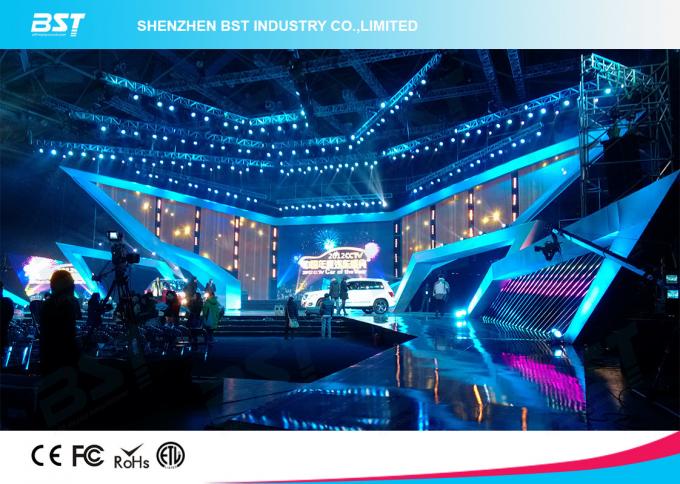

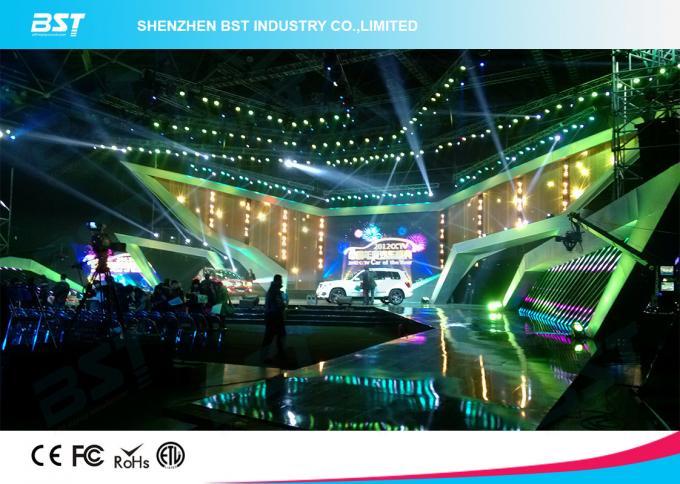

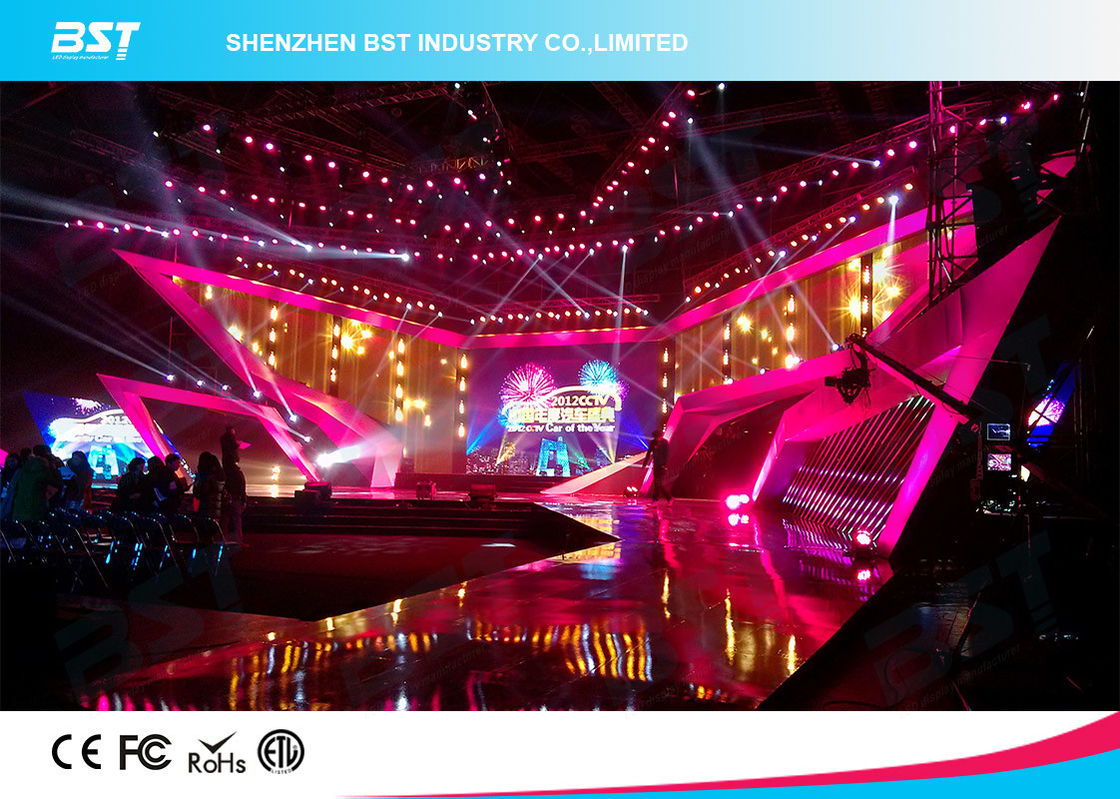

Application:
Entertainment events,Commercial advertising,Stadium perimeter, such as banks,schools, telecommunications, mobile media, night club, business establishments, customs, stadiums, studio, stock exchange centers, bus station, shopping malls, railways, airports, harbors, etc;

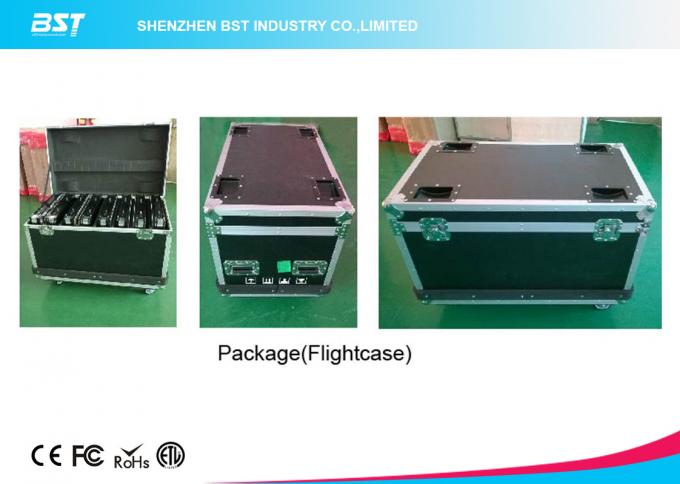

Packing and shipment
