| Outdoor Waterproof:: | IP65/IP54 | Viewing Angle:: | Horizontal:≥140°,Vertical:≥140° |
|---|---|---|---|
| Driving IC:: | MBI5124 | Density: | 27777dots/sqm |
| Cabinet Size: | 960mm X 960mm | LED Chip:: | Epistar+Silan |
| High Light: | outdoor advertising led display screen,outdoor full color led display |
||
P6 Full Color Large Outdoor Advertising LED Display Video High Resolution
Products Description:
1. Screen works directly under bright sunlight with high brightness: ≥6500 nits
2. Energy-saving,long life time,weather ability.
3.We choose epistar led as our standard led chip.also can be customized.outdoor p6 smd led module
4.we choose MBI5124 driving IC as standard outdoor product pointed band.
5.All modules,we use header signal connector on modules.it promise the stable signal output.
6.Control method:synchronous and asynchronous
8. With IP65 rating standard, which ensure its normally working under heavy raining environment
9.Good resistance to deformation with high hardness body, thickness: 170mm.
10.With excellent windy, corrosion resistance function after surface treatment
11.Installation become easily and more fasten with side locks on panel sides
13.Standardized installation framework (standard frame size 200CM wide X100CM height), small on-site construction difficulty, high precision, fast efficiency! The measure, the industry faster than 3-5 times, greatly reducing the body of the screen frame and fixed installation time, substantial savings in installation costs.
14. The screen is fixed to the body frame fixed firmware process is simple, easy to operate, completely within the industry complex and time-consuming step shortcomings.
Specification:
| Model Number | BST-OA5 | BST-OA6 | BST-OA8 | BST-OA10 |
| Pixel Pitch | 5mm | 6mm | 8mm | 10mm |
| Pixel Density/㎡ | 40,000 dots | 27,776 dots | 15,625 dots | 10000 dots |
| LED Configuration | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size | 160mm*160mm | 192mm*192mm | 256mm*256mm | 160mm*160mm |
| Module Resolution | 32*32 dots | 32*32 dots | 32*32 dots | 16*16dots |
| Panel Dimension (WxHxD) | 960mm*960mm | 960mm*960mm | 1024mm*768mm | 1280mm*960mm |
| Panel Resolution | 192*192 dots | 160*160 dots | 128*96 dots | 128*96 dots |
| Best Viewing Distance | 5-120 | 6-120 | 8-150 | 10-300 |
| Driving Mode | Constant 1/4 | Constant 1/4 | Constant 1/4 | Constant 1/4 |
| Refresh Rate | ≥ 1500 Hz | ≥ 1500 Hz | ≥ 1500 Hz | ≥ 1500 Hz |
| Brightness | ≥ 6500 cd/㎡ | ≥ 6500 cd/㎡ | ≥ 6500 cd/㎡ | ≥ 6000 cd/㎡ |
| Power Consumption | Avg: 350 W/Panel | Avg: 200 W/Panel | Avg: 300 W/Panel | Avg: 300 W/Panel |
| Gray Level (Colors) | 16.7 million | |||
| Viewing Angle (H/V) | 140°/140°(SMD) 120°/60°(DIP LEDs) | |||
| Lifespan | 100,000 hours at 50% brightness | |||
| Operating Temperature | -20℃~ +60℃ | |||
| IP Rating | IP65 | |||
| Control System | Novastar/Linsn | |||

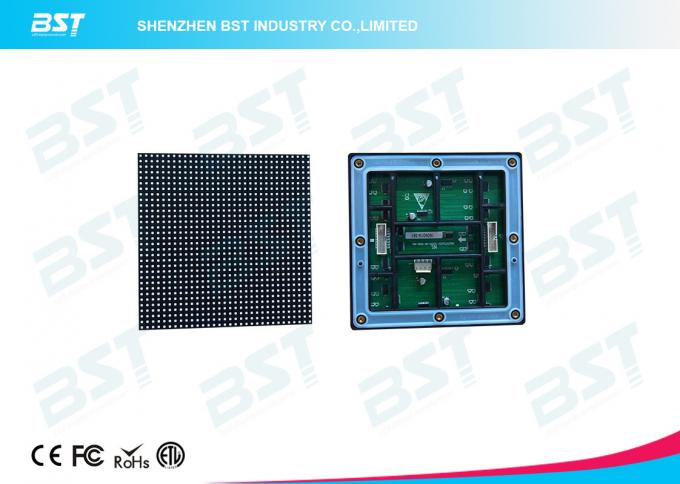

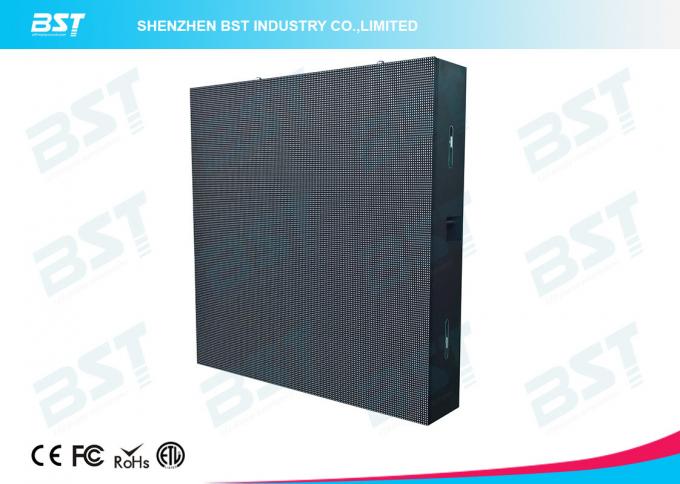

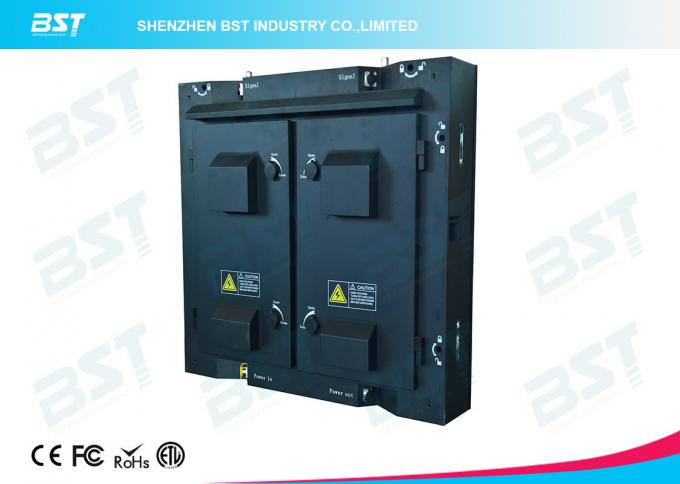

P6mm Outdoor Advertising LED display

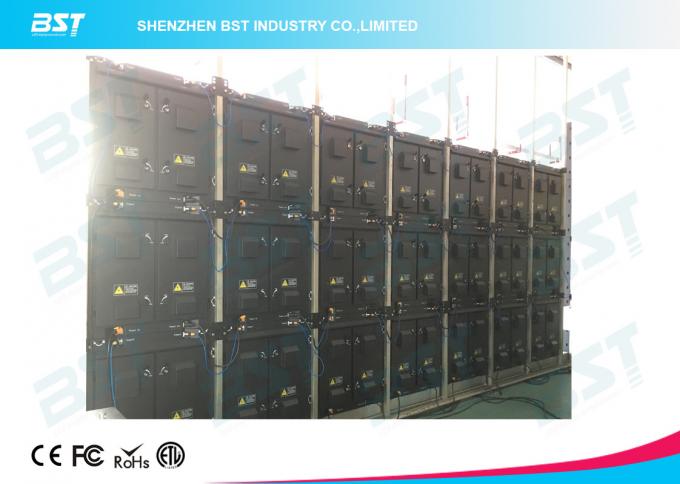

Controller connection and accessory

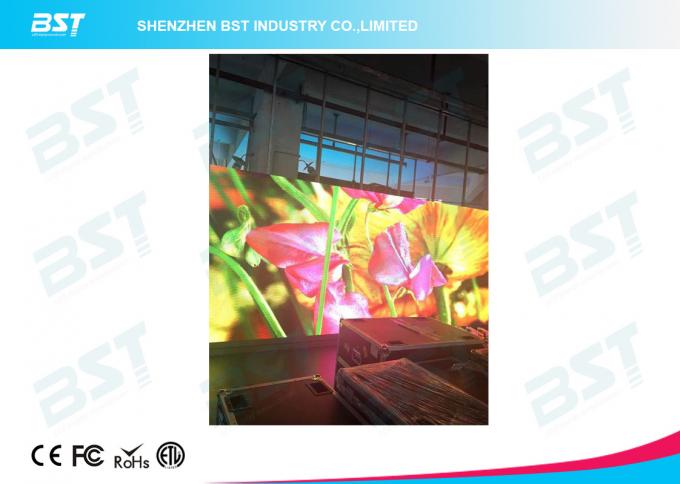

Agingt test

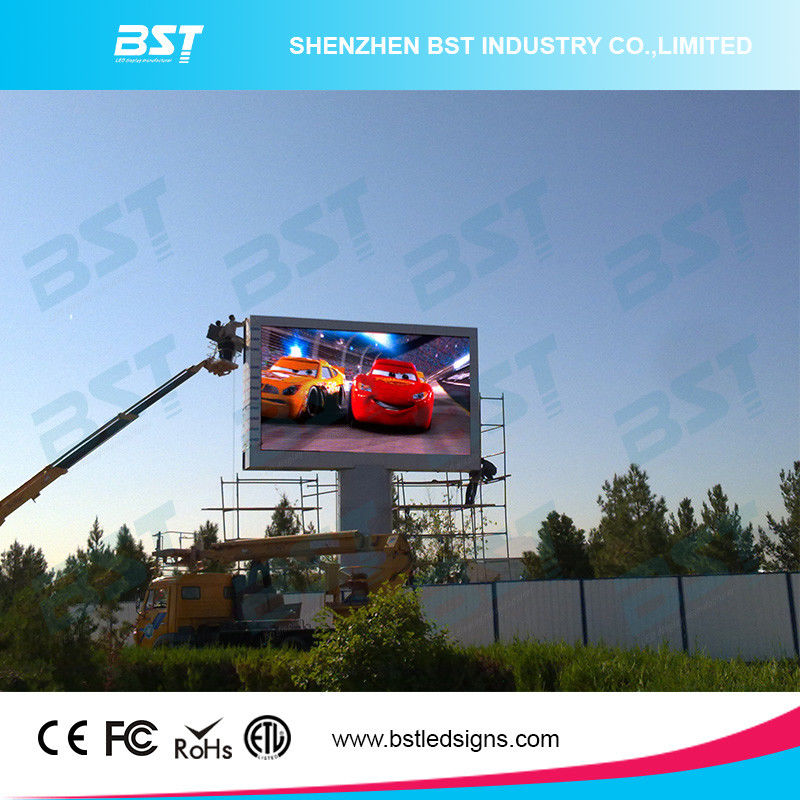

Packing and Installation

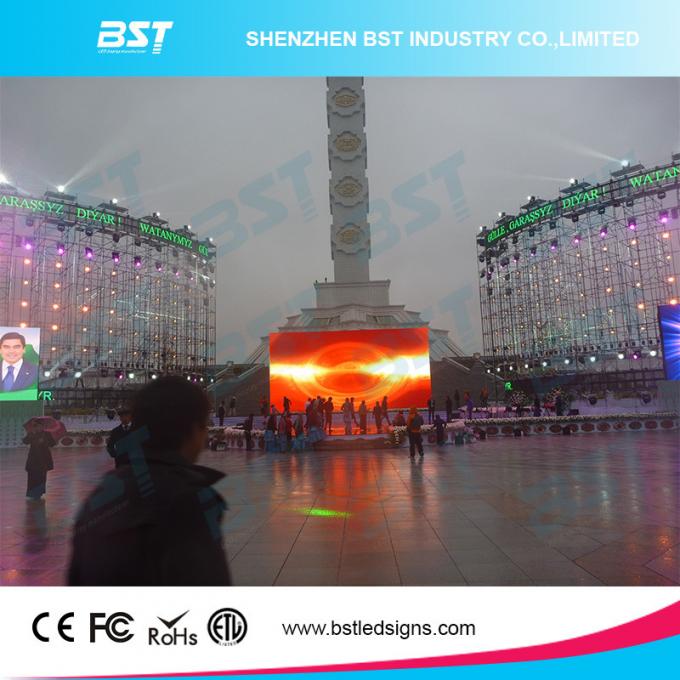

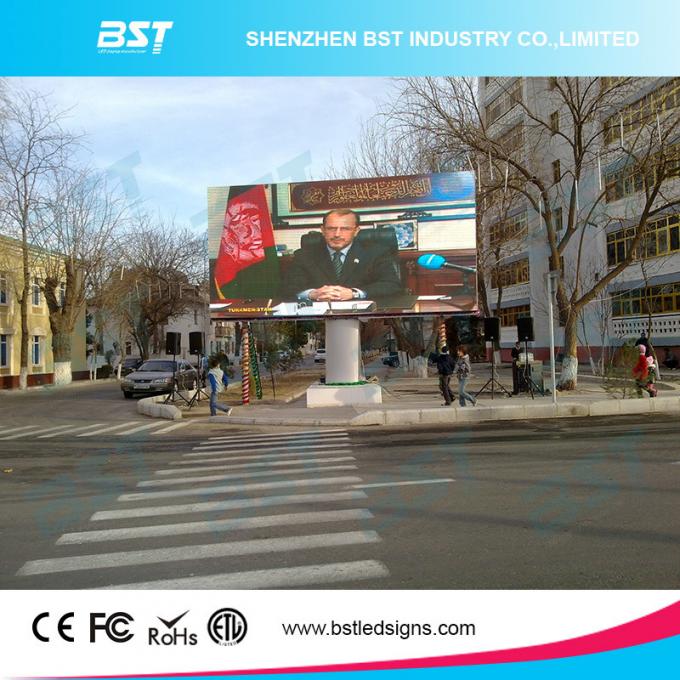

Application:
hotel and many other places for advertising and other usage, airport, meeting room, live show stage, sports field, entertainment place, supermarket, building
