| Density: | 62500 Dots Per Sqm | LED Type: | SMD2121, SMD2020 |
|---|---|---|---|
| Module Size: | 256mmX128 Mm | Cabinet Size: | 1024mmX1024mm |
| Warranty: | 2 Year | OEM: | Yes |
| Brightness: | >1200nits/sqm | Refresh Rate: | >1500hz |
| Color: | Full Color | Package: | Wooden Case Or Flight Case |
| Service: | Front And Rear | ||
| High Light: | flexible led screen,flexible led video screen |
||
P4mm Curve Flexible LED display Screen Wifi controlled with easy addressable
Quick Detail:
1. LED Modules with special Design For Curved or 360 Degree LED Display
2. LED Modules with MBI5124 Driving IC with High Refresh Rate
3. SMD LEDs with Gold Wire for Best Color Uniformity
Features
Flexible led display is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won't break LEDs as well design of mask covers.
1.Module with small-unit and flexible design, makes possibility of more complicated shapes for the video show.
2.Assembling screen with flexible led modules directly, saving time and effort, easy operation.
3.Magnet connection, easy to assemble & disassemble, it is frontal service maintenance.
4.No cabinet metal frame, drastically deducting the screen weight. we can design any shape of structure as you need.
5.Strict quality control and long-term application experience verified the stability and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.
Description:
1.High brightness 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2.Constant current chip driving IC MBI5124 to reduces the power consumption and prompts the stability, Simple modular design for easy maintanence.
3Neat appearance, light weight, small size and safe 5V low voltage power supply system all make the module more attractive.
4.Due to its locating holes and 4 in bracket design, it can be used on indoor curved led display and circle led screen.
5.Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.
Applications:

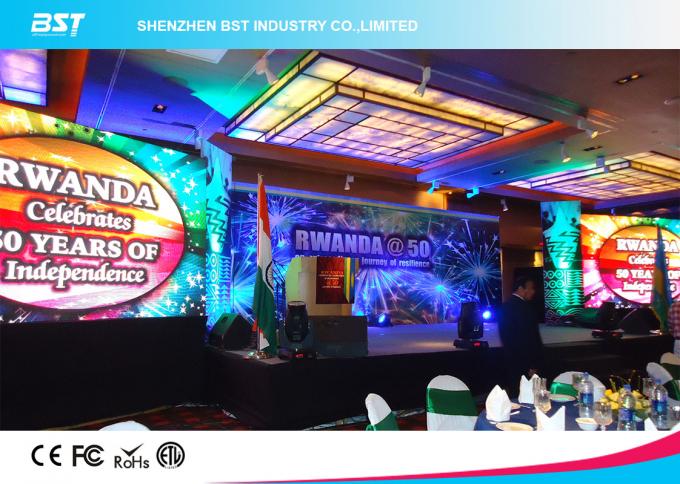

Widely applied in shaped stage background / exhibition / shopping mall etc.
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
BST-FL-4-F |
|
Pixel Pitch |
4mm |
|
Module Size |
256mm×128mm |
|
Module Resolution(Pixel) |
64dots×32dots |
|
Pixel Density |
62500dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/16 Duty Constant Current |
|
Cabinet Size |
Depends |
|
Cabinet Resolution |
depends |
|
Brightness |
≥1200cd/cd2 |
|
Contrast |
≥4000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Minimum Viewing Distance |
4m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
300W/m2 |
|
Average Power consumption |
1000W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85HZ |
|
Refresh Frequency |
>1500HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C~+85°C Working:-20°C~+60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000/Win 7/Win 8 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP40 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
