5000nits IP65 Outdoor LED Display Panel 23.5kg Die-Cast Aluminum

Large Image : 5000nits IP65 Outdoor LED Display Panel 23.5kg Die-Cast Aluminum

Product Details:

Place of Origin:	China
Brand Name:	Grace Visual
Certification:	CCC, CE, ETL, RoHS
Model Number:	ORA
Document:	OE.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	6
Packaging Details:	Flight case
Delivery Time:	7-10 days
Payment Terms:	T/T
Supply Ability:	500000

Contact Now

Detailed Product Description

Module Dimension(WxH):	500x250mm/ 19.68"x9.84"	Panel Dimension(WxHxD):	1000x1000mm / 39.37"x39.37"
No. Of Module/panel(WxH):	2x4	Panel Material:	Die-casting Aluminum
Panel Weight:	23.5kg( 51.8lbs)	Gray Scale:	16bit
Contrast Ratio:	4000:1	Refresh Rate:	3840hz
Brightness:	>=5000nits	Viewing Angle(H/V):	140/120
Expected Lifetime:	100,000hrs	Max. Stacking/Hanging:	10
Service:	Front	IP Rating(Front/Rear):	IP65/IP54
Certification:	CCC,CE,ETL,RoHS
Highlight:	5000nits outdoor LED display , IP65 waterproof LED panel , die-cast aluminum LED display

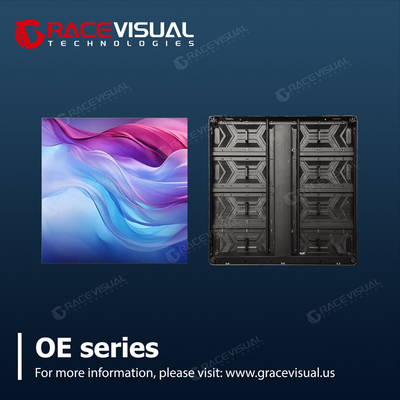

OE Series: 5000nits IP65 Weatherproof LED Billboards

23.5kg Ultra-Light Die-Cast Panels with EU Stock availability. Engineered for 24/7 advertising operation in all climate conditions.

Product Specifications

Attribute	Value
Module Dimension (WxH)	500x250mm / 19.68"x9.84"
Panel Dimension (WxHxD)	1000x1000mm / 39.37"x39.37"
No. of Module/panel (WxH)	2x4
Panel Material	Die-casting Aluminum
Panel Weight	23.5kg (51.8lbs)
Gray Scale	16bit
Contrast Ratio	4000:1
Refresh Rate	3840hz
Brightness	≥5000nits
Viewing Angle (H/V)	140/120
Expected Lifetime	100,000hrs
Max. Stacking/Hanging	10
Service	Front
IP Rating (Front/Rear)	IP65/IP54
Certification	CCC, CE, ETL, RoHS

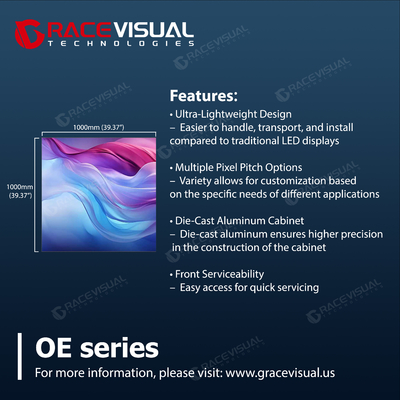

OE Series LED Display Features

Key Advantages

Ultra-Lightweight Design: Each panel weighs only 23.5kg (51.8 lbs), significantly reducing structural load and easing installation and transport.
Multiple Pixel Pitch Options: Available in 3.9mm, 4.8mm, 6.2mm, 7.8mm, and 10.4mm to meet various resolution and viewing distance requirements.
Stunning Visual Performance: 16-bit grayscale and 4000:1 contrast ratio for rich color depth with high brightness ≥5000 nits for excellent visibility even in direct sunlight.
Ultra-Smooth Playback: 3840Hz refresh rate ensures smooth content display and camera-friendly performance.

Technical Features

Tool-Free Module Design: Fast-lock module system allows for quick, easy maintenance and replacement.

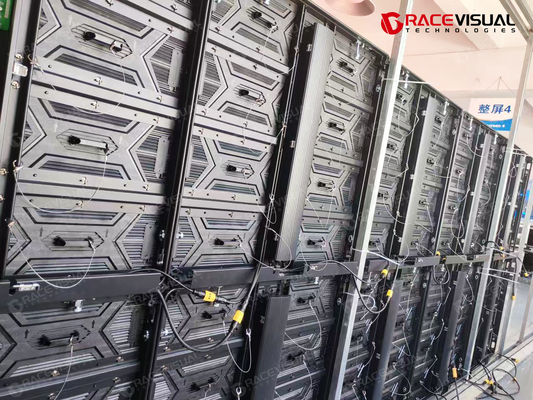

Concealed Wiring Structure: Clean and neat backside design improves overall aesthetics and project presentation.
Front Service Support: Enables installation and maintenance in limited spaces, enhancing flexibility.
High-Precision Die-Cast Aluminum Frame: Ensures seamless splicing and a flat display surface for consistent visuals.
Creative Splicing Support: Capable of 90° right-angle connection and curved/folding screen setup, ideal for creative structures like columns and corners.
Excellent Weather Resistance: IP65 (front) and IP54 (rear) ratings with operating temperature range of -10°C to 60°C and 10%-60% humidity tolerance.
Energy Efficient & Long-Lasting: Average power consumption of 218W/m² (Max: 650W/m²) with service life up to 100,000 hours for low total cost of ownership.

Ideal Applications

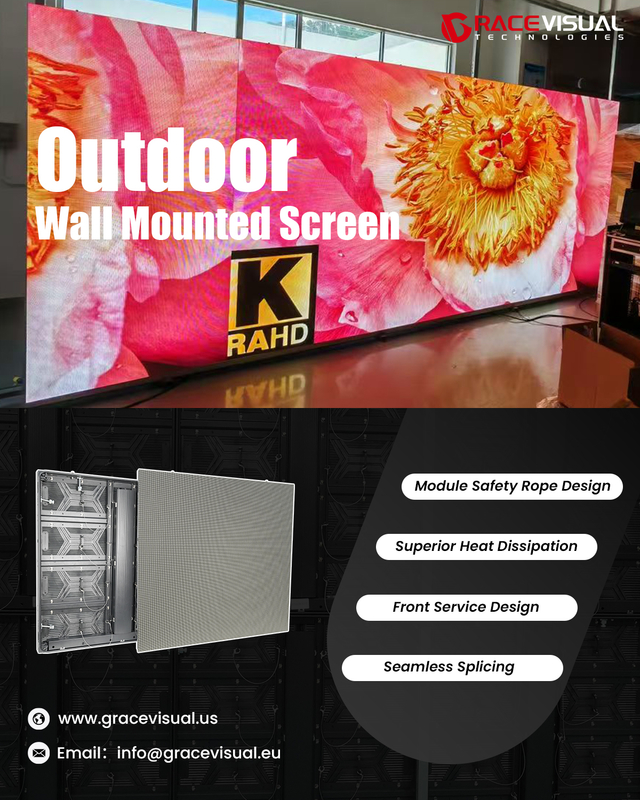

Outdoor Advertising & Media: Billboards, commercial squares, and public signage with high brightness and weather durability.
Stage & Event Backdrops: Concerts and live events with high refresh rate and stacking/hanging support.
Transportation & Public Info Display: Airports, train stations, stadiums, and other public venues.
Creative Installations: Custom and artistic setups for exhibitions, architectural facades, retail installations, and more.
