ORB Series High-performance LED Display

ORB Series High-performance LED Display - Trade Platform Upload Details (English)

1. Core Product Selling Points

- High-performance Scene Adaptation
Engineered for large-scale events, stage performances, and other scenarios, offering multiple pixel pitches (2.6mm, 2.9mm, 3.9mm, 4.8mm) to meet image quality requirements for different viewing distances.
- Outstanding Technical Advantages
Features seamless splicing and low energy consumption, with a contrast ratio of 4000:1 and brightness ≥4500nits for superior visual effects.
- Convenient Maintenance Design

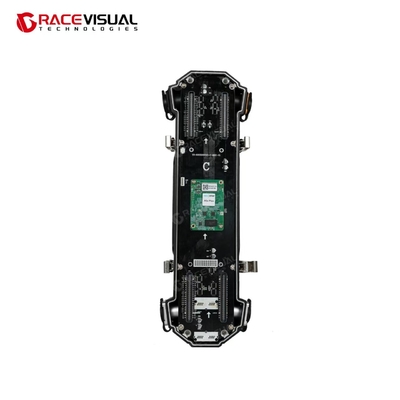

Supports front and rear maintenance with a magnetic module design for fast component replacement. The detachable power box enables plug-and-play installation, enhancing setup efficiency.
- Durability Assurance
With IP65 front protection and IP54 rear protection, the die-casting aluminum panel is equipped with corner protectors for impact resistance.

2. Key Technical Specifications

The ORB series includes four models: ORB-2.6, ORB-2.9, ORB-3.9, and ORB-4.8:

- Pixel Pitch: 2.6mm, 2.97mm, 3.91mm, and 4.81mm respectively.
- Pixel Configuration: SMD1415 for ORB-2.6/2.9, SMD1921 for ORB-3.9, and SMD2727 for ORB-4.8.
- Pixel Density: Ranging from 43,264px/m² (ORB-4.8) to 147,456px/m² (ORB-2.6).
- Module Dimension: 250x250mm (9.84”x9.84”) for all models.

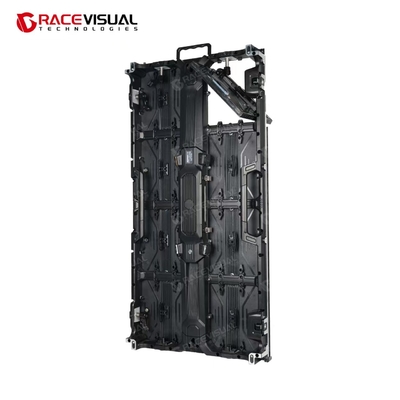

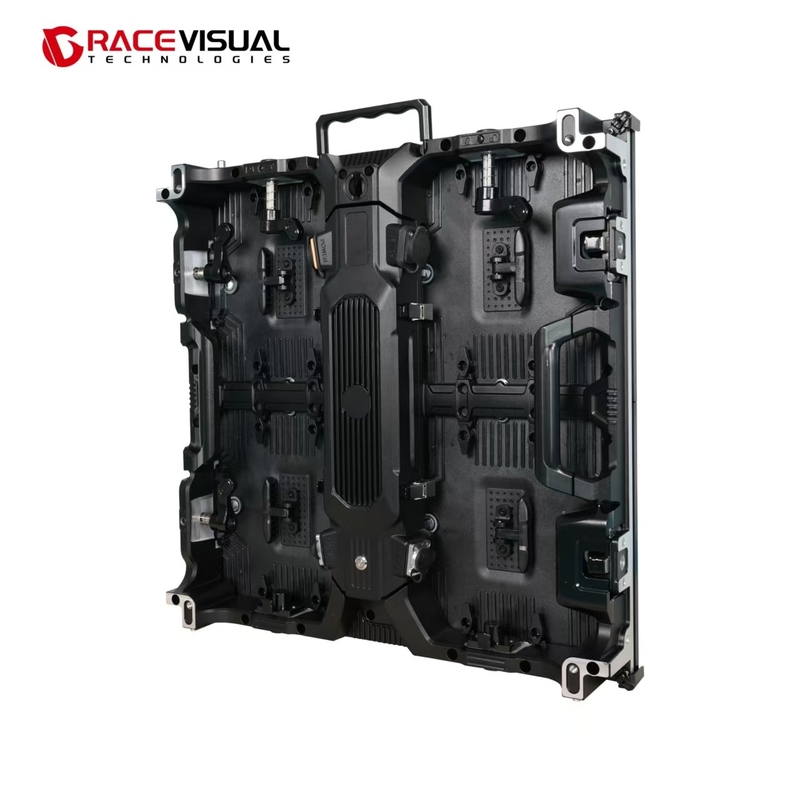

- Panel Dimensions: Available in 500x500x80mm or 500x1000x80mm.
- Resolution: Panel resolutions vary from 104x104px to 192x384px, depending on the model.
- Power Consumption: Average 64W-128W per panel; maximum 192W-384W per panel.
- Refresh Rate: 7680Hz for smooth visual performance.
- Operating Conditions: -10°C to 60°C temperature, 10%-60% humidity.
- Certifications: Complies with CCC, CE, ETL, and RoHS standards.

3. Application Scenarios

Perfect for concerts, exhibitions, stage shows, commercial displays, and any event/staging environment requiring high-definition visual presentation.
