Product Details:
Payment & Shipping Terms:
|
| Pixel Density:: | 22473pixel/sqm | Protection Level:: | IP65 |
|---|---|---|---|
| Working Voltage:: | AC 110V~220V±10% | Cabinet Dimension:: | 640mmX640mm |
| Viewing Angle:: | H 140°/V140° | Weight Of One Cabinet(Kg):: | 13kg |
| Color: | Full Color | Delivery Time: | 20days |
| High Light: | hire led screen,LED video wall rental |
||
P6mm Rental SMD2727 LED Display outdoor Die-casting aluminum cabinet For Event show
Products Feature
1.SMD2727 3 in 1 led encapsulation confirm wide view angle up to 140° for vertical and horizontal,and lower power consumption,energy saving.
2. Long life span over 50000Hours
3. Die-casting Aluminum material cabinet with slim thickness of 75mm ensure light weight, only 13kgs per panel, can be picked up by one hand, easy to install and dismantle, better for rental use,
4. High brightness up to 6000nits, close view distance,good performance.
5. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar.
6. Dot to dot maintainance, quick maintain and save cost.
7.No fans design, no noise caused, good environment protection.

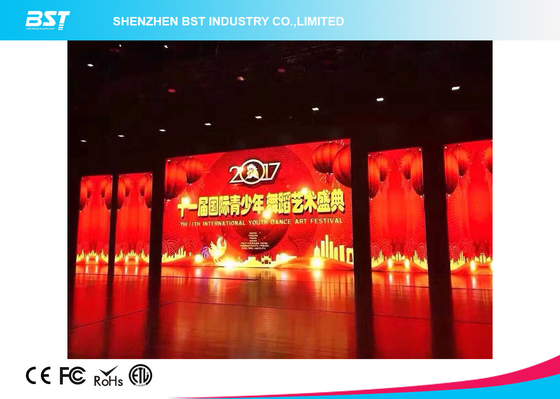

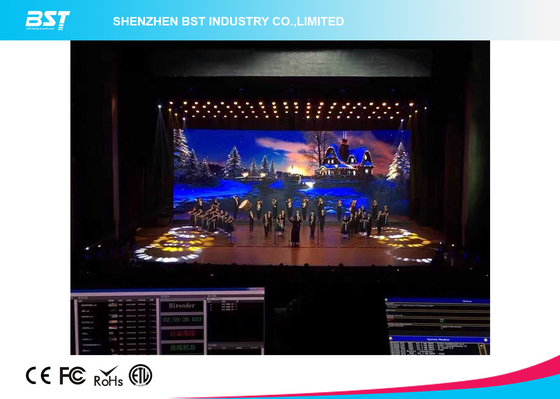

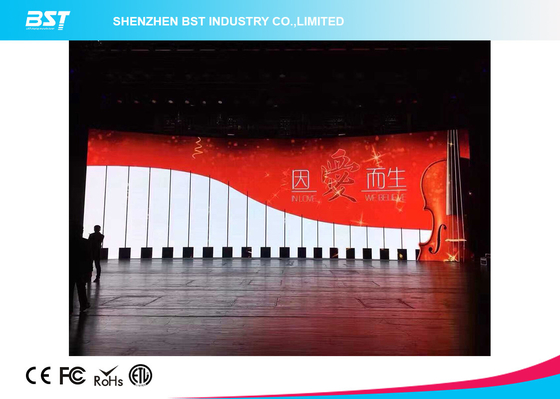

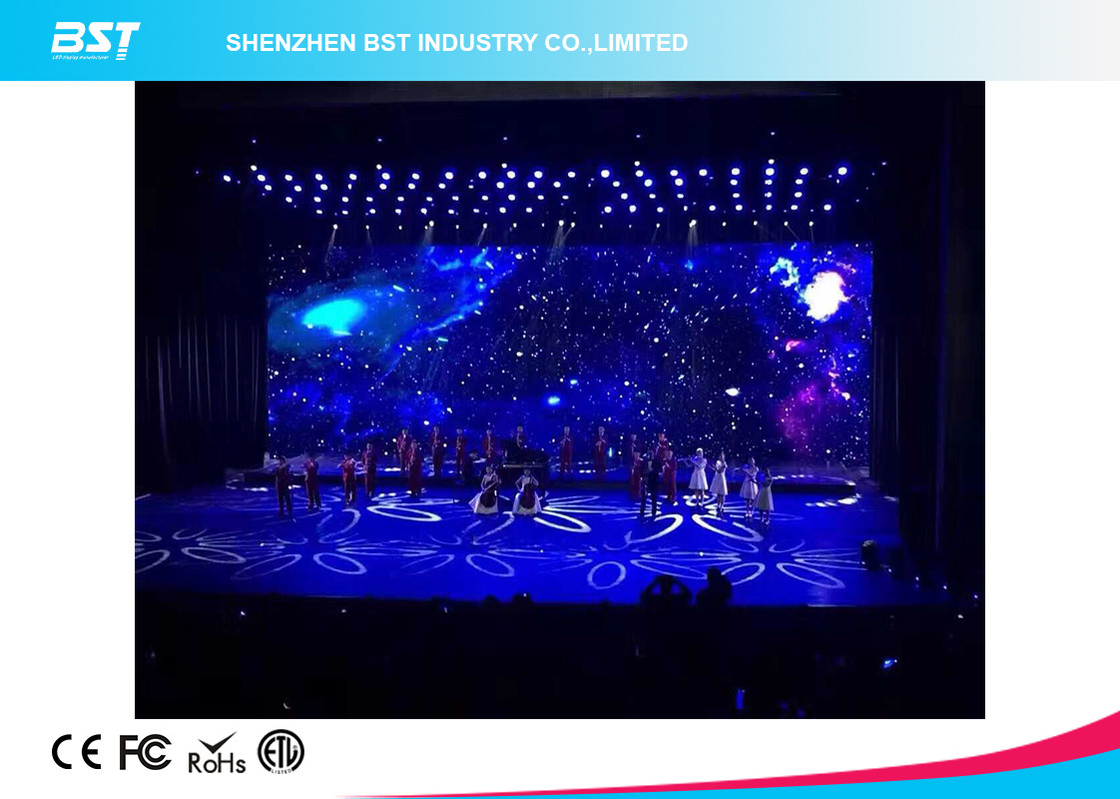

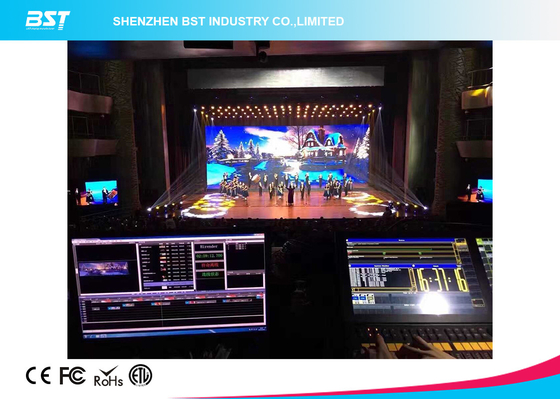

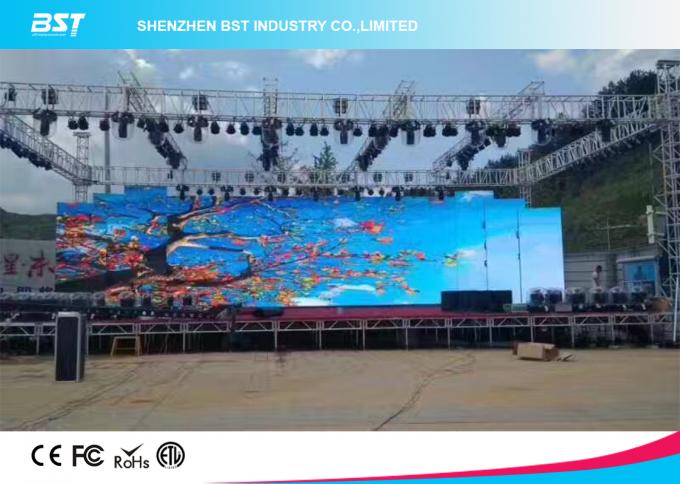

8. Widely used for stage, concert, show, banquet, wedding,stage background,public advertising etc.
9.Good heat emission capability.
Parameters of BST-OR-6
| P6 outdoor full Color LED Screen Specification | |
| Pixel pitch6 | mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD2727 |
| Size of module | 320mm x 320mm |
| Resolution of module | 48x48dots |
| Size of cabinet | 640mm x 640mm x 75mm |
| Resolution of cabinet | 96x96dots |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 13KGS |
| Brightness | >6000cd/sq.m |
| Density | 22473dots/sq.m |
| Best viewing angle | 140° /140° |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 6-100M |
| Maximum power consumption | 900W/sq.m |
| Average power consumption | 350W/sq.m |
| Driving method | 1/4 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP65 /IP54 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
| Distance(without relay) | Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
Testing
Accessory
Application:
Sports Stadium, Outdoor Signage and advertisement, Entertainment centers, Building facilities, Community centers, Amusement parks, Auto Parts and Maintenance shops etc.
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact with sales in details.
