Product Details:
Payment & Shipping Terms:
|
| Product Name: | Outdoor Advertising LED Display | Feature: | High Brightness |
|---|---|---|---|
| LED Type: | SMD3535 | Density: | 15,625 Pixels/sqm |
| Cabinet Size: | 256X256 | Package: | Wooden Case |
| Application: | Building / Stadium | Brightness: | >5500nits/sqm |
| High Light: | outdoor advertising led display screen,outdoor full color led display |
||

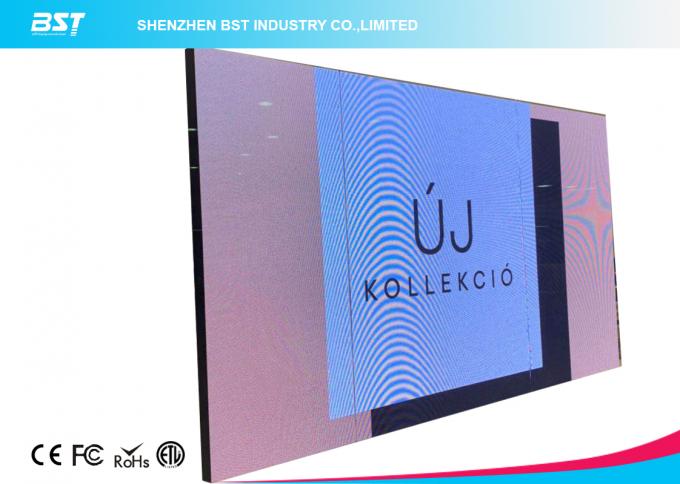

High Brightness Outdoor Advertising LED Display For Building / Stadium
Outdoor Advertising LED Display Main features:
1).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
2). Clear vivid image quality: Throughout the show, the picture clear, bright color.
3).Installation is simple,easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily.
4).The list of available Models of our outdoor full color led display board : Outdoor led display screen:P5,P6,P8,P10,P12,P16,P20,P25.
5).Good heat dissipation;
6).Energy-saving to reduce cost;Environment friendly;
7).Cabinets Seamless splice;
8).Comprehensive Application
It can be used in different situations for mulit purposes such as lease market, advertisement, stadium,
shopmall etc.
Outdoor Advertising LED Display Specification:
| Outdoor Advertising LED Display SPECIFICATION | |||
| OD-6 | OD-8 | OD-10 | |
| Physical Pitch | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD2727 | SMD3535 | SMD3535 |
| Pixel Density | 22,500 pixels/sqm | 15,625 pixels/sqm | 10,000pixels/sqm |
| Module Dimensions (WXH)(mm) |
320X320 | 256X256 | 320X320 |
| Panel Dimensions(mm) | 1280X960X150 | 1280X768X150 | 1280X960X150 |
| No. of Modules Per Panel(WXH) |
4X3 | 5X3 | 4X3 |
| Physical Resolution of Module(WXH) |
48X48 | 32X32 | 32X32 |
| Physical Resolution of Panel(WXH) |
192X144 | 160X96 | 128X96 |
| Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
| Weight(sqm) | 65/45 | 65/45 | 65/45 |
| Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000:1 | 2,000:1 | 2,000:1 |
| Average Power Consumption |
360 W/panel | 360 W/panel | 360 W/panel |
| Max Power Consumption |
900W/panel | 900W/panel | 900W/panel |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
| Brightess | ≥6,500nits | ≥6,500nits | ≥6,500nits |
| Horizontal Viewing Angle |
160° | 160° | 160° |
| Vertical Viewing Angle |
140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rationg (Front/Rear) |
IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
| Operation Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
| Storage Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
Outdoor Advertising LED Display Application:
Applied to outdoor places such as station,port,airport,shopping mall,hotel,building,stadium etc,it use as video and information display.
1. We can provide customers a comprehensive solution delivery of series-related products
2. We can provide customers high quality products which allow they to scream
3. We can provide custom-made service.
4. We can provide customers two year free warranty, and support renewals extended
5. We can provide customers the free installation guidance and technical support
6. We willing to provide any countries and regions in the world with products and technial support. at present, our product has covered more than 100 countries and regions.
Why Choose us
1. Diversified products :
Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.
2. Experienced&Professional:
9 years manufacturing experience on LED displays, professional workmanship & design.
3. Best raw materials:
High quality,high brightness and long life span.
4. Competitive price:
100% factory price,competitive and reasonable price.
5. Strict quality control:
100% testing before packing , make sure our quality before delivery.
6. Quality gurantee:
Life span of LED display screens is more than 100,000 hours
7. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.
