Product Details:
Payment & Shipping Terms:
|
| Production Name: | P3mm Indoor Rental LED Display | Pixel Pitch: | 3mm |
|---|---|---|---|
| LED Type: | SMD2121 Black LEDs | Module Size: | 192mmX192mm |
| Cabinet Size: | 576mmX576mm | Warranty: | 2 Year |
| High Light: | hire led screen,LED video wall rental |
||
P3 SMD2121 Indoor Rental Led Display Screen 1200cd / m2 For Entertainment Event
Producst Description:
1. Smart locking system, screw driver free installation
2. Indication lights to show status of power and signal status
3, Cost effective cabinet unit
4. Ultra Slim and light weight (only 8Kg/panel), portable handy
5. deepest blackness levels and light absorbing techniques
6. High gray level and good color uniformity with brand IC, led lamp
7, High precision CNC maching,precision up to 0.1mm
8, First-calss LED chip
9, 2 years warranty, easy to install & maintenance
10, Perfect uniformity and no mosaic
11, cabinets,fanless design with noiseless power supply.
Parameters of BST-IR-3
| Pixel pitch | 3mm |
| Size of Module | W 192*H 192 mm |
| Density of pixel | 111111/m2 |
| Pixel configuration | 1R1G1B |
| LED Encapsulation | SMD2121 |
| Resolution of Module | W 64*H 64 |
| Power consumption for Module | ≤20W |
| Standard Cabinet size | W 576mm*H 576mm |
| Standard Cabinet Resolution | W 192*H 192 |
| Module arrangement | 3*3 |

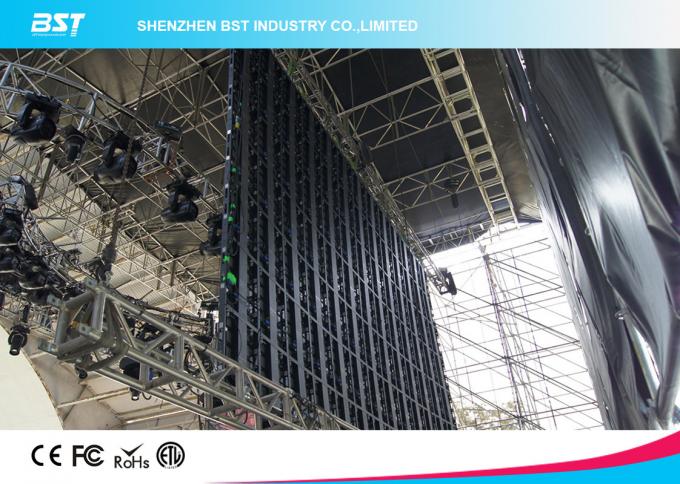

| installation | Hanging, stacking |
| Cabinet material | Slim aluminum |
| Cabinet weight | 8kg |
| The way the cascade | Aviation head |
| Protect degree | IP40 |
| The Optimum Viewing distance(m) | 3~50 |
| Luminance of white balance) | ≥ 1200(CD/m2) |
| The Optimum Viewing angel | H140o V140o |
| Power consumption | 250 ave 600 max w/ m2 |
| Display ratio (suggest) | 4:3/16:9 |
| Driving Components | MBI 5124 |
| Dring Method | |
| 1/16&1/32 scanning constant driving | |
| System working voltage | 88-132VAC176-264VAC 47-63HZ |
| Operating Environment Temperature | -20°C—65°C Optional |
| Refresh rate | >1500hz |
| Frame Frequency | ≥500HZ |
| Grey scale | Each color ≥16384 Grade |
| Brightness adjustment | |
| 256 levels of each color(R,G,B) can be adjusted automatically and 100 levels of each color | |
| Input Signal | RF,S-VIDEO,RGB TV,YUT,YC,COMPOSITION |
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video processor |
| Mean Time between Failure | >5000 hours |
| Life span | >100,000 hours |
| Out-of Control rate | <0.0001 |
Transmitting Distance |
The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers |
| image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc |
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 |
Aging Testing
LED display aging test precautions
1. The test content: black and white, red, green, blue monochrome, grayscale gradient, video effects, text effects
2. LED display a white screen test playing time is not less than 24 hours
3. Monochrome and grayscale gradient test not less than 24 hours
4. Video and text effects test not less than 24 hours
Application:

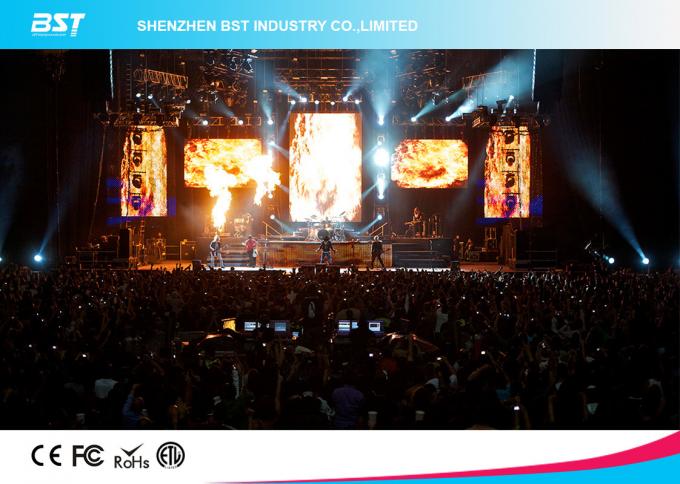

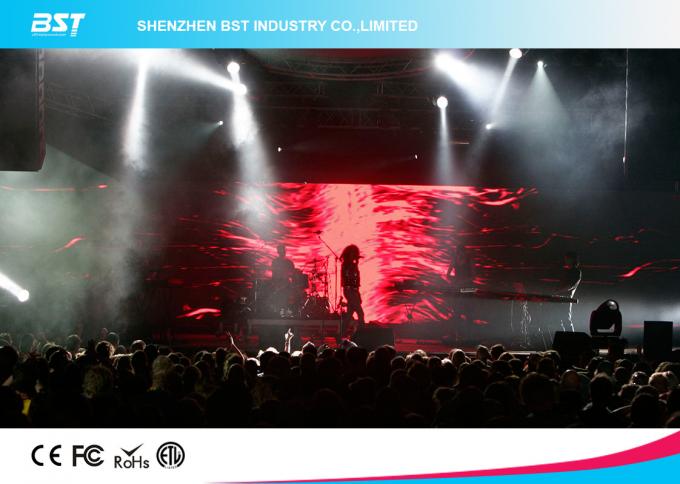

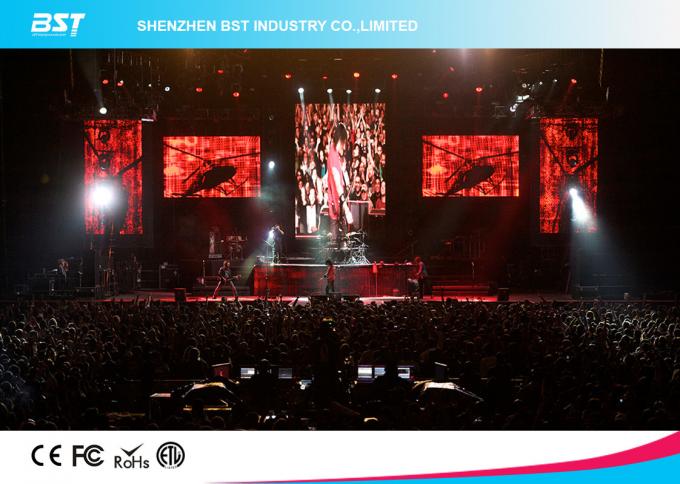

Stadium perimeter, entertainment events,Commercial advertising, mobile media, night club, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
Trade Terms: EXW, CIF, FOB
Payment Terms: T/T, Western Union, PayPal, Escrow, MoneyGram
Payment Condition: TT 100% in advance; TT 50% deposit in advance, 50% balance arranged before shipment
Delivery Time: 10~15 days from receipt of payment in advance
Packing: Standard export wooden box packing
Shipping: By Express, By air, By sea
