Product Details:
Payment & Shipping Terms:
|
| Production Name: | P3.91mm Stage Video Wall | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| LED Type: | SMD2121 LEDs | Module Size: | 250mmX250mm |
| Cabinet Size: | 500mX500mm | Density: | 65536 Pixel / Sqm |
| High Light: | rental LED screen,hire led screen |
||
Commercial Rental Led Display Video Wall Screen With H 140°/ V 140° View Angle
Products Description:
1, Fanless design and ernergy saving
2, Steady performance and low death rate of light
3, High color uniformity and clear image can bring you a vivid audio visual effect
4, Own designing team for new products development
5, Wide visual angle, smooth surface

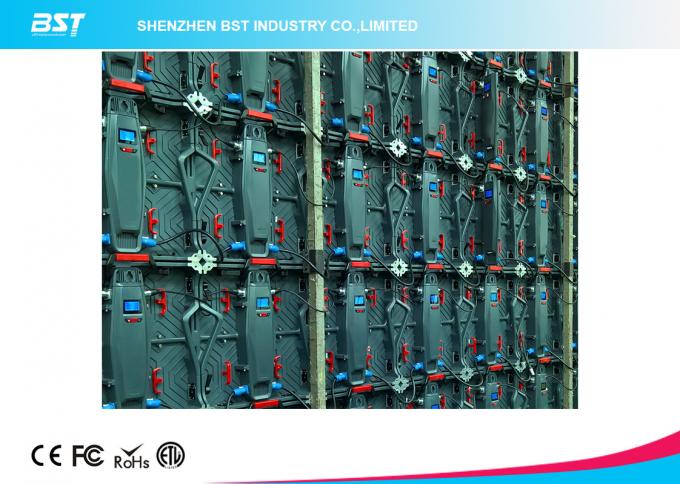

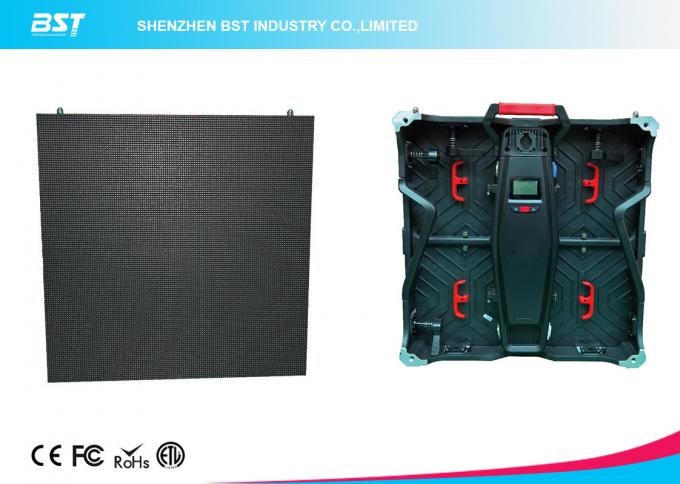

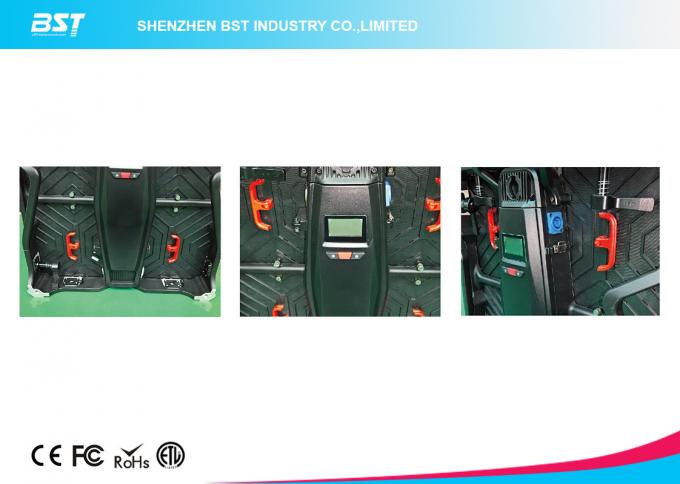

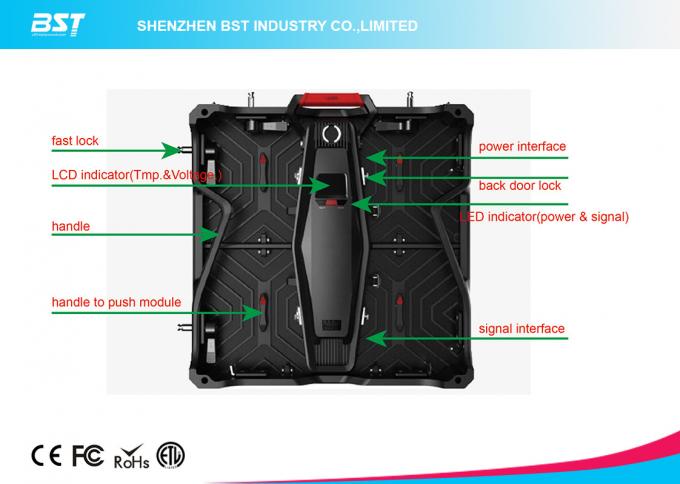

6, Die-casting aluminum cabinet design with high precision
7. Ultra thin and light weight (only 7Kg/panel), portable handy
8. Long using life & MTBF
9. High gray scale (16 bits) with perfect real visual performance and effects
10. Available models: P3.91, P4.81, P6.25mm
11. HD show without water ripple on program broadcasting
Parameters of BST-IRD-3
|
Model No. |
BST-IRD-3 |
|
Pixel Pitch |
3.91mm |
|
Module Size |
250mm*250mm |
|
Module Resolution (W*H) |
64 dots*64 dots |
|
Pixel Density |
65536 dots/ ㎡ |
|
LED Type |
SMD2121 LEDs |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/13 Duty Constant Current |
|
Cabinet Size |
500 ×500 ×65mm |
|
Cabinet Resolution |
128dots ×128dots |
|
Brightness |
≥ 1200cd/㎡ |
|
Contrast |
≥ 4000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
4m-30m |
|
Grey Scale |
16bits/1024levels |
|
Color Capability |
16,777,216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
700 W/㎡ |
|
Average Power Consumption |
300 W/㎡ |
|
Working Voltage |
AC 220V/110V s±10% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
>1500HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+60℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000/Win 7/ Win 8 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |

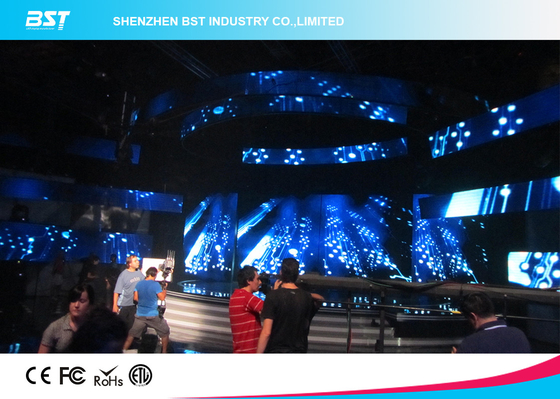

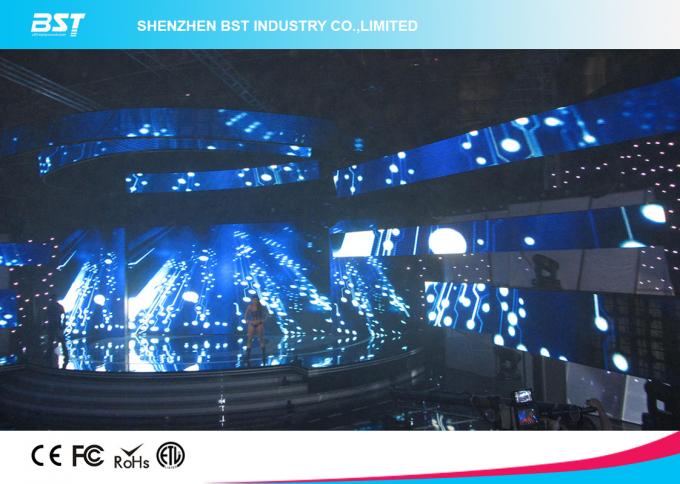

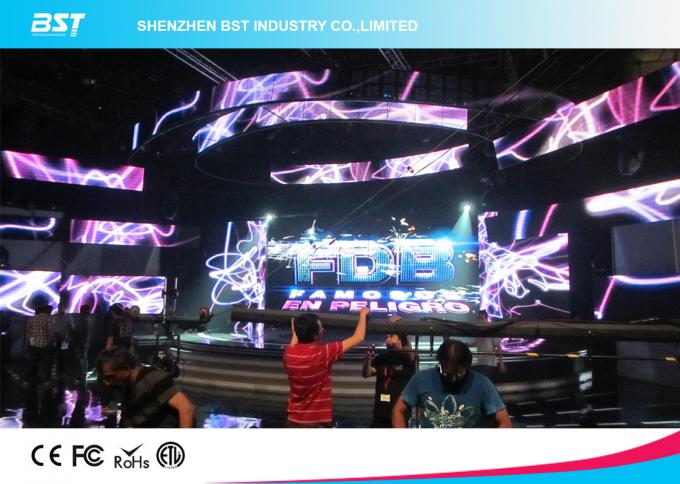

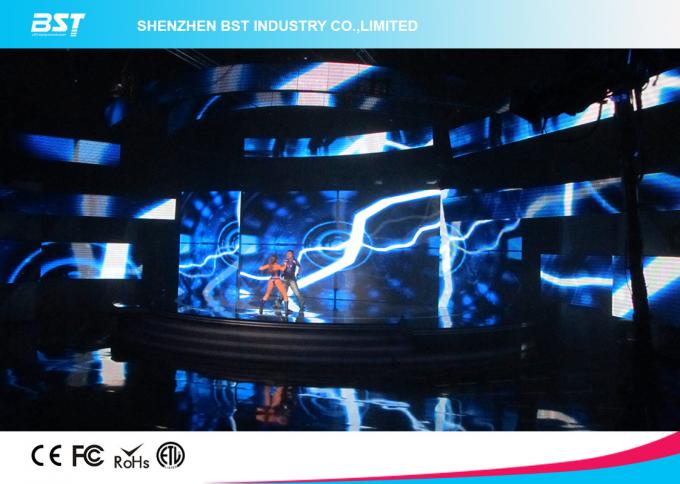

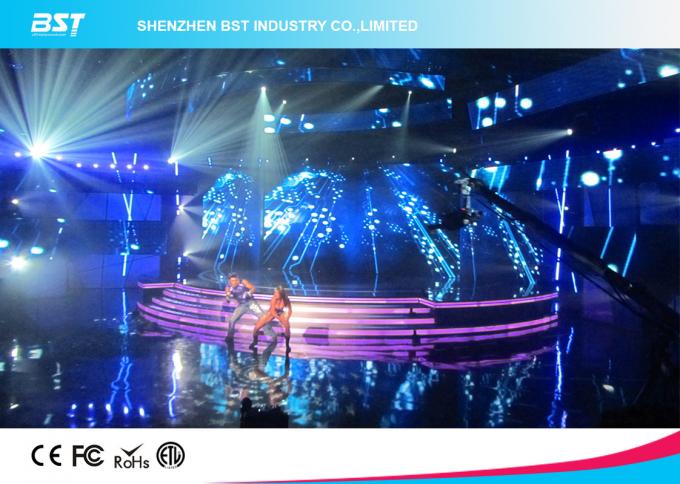

P3.91mm Indoor Die casting Rental LED Display
Application:
Stadium perimeter, telecommunications, customs, stadiums, studio, railways, airports, harbors, mobile media, Commercial advertising, stock exchange centers, bus station, shopping malls, such as banks,schools,night club, business establishments,entertainment events, etc;
