Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board

Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board
Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board

Large Image :  Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board

Product Details:
Place of Origin: Shenzhen, China
Brand Name: BST
Certification: CE, RoHS, CCC, IP65
Model Number: BST-OA-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc / 1 sqm.
Price: Negotiation
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 10-20 days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sq.meter / Month
Detailed Product Description
Product Name: LED Display Billboard Pixel Pitch: 16mm
LED Type: DIP346 Density: 3906dots/sqm
Cabinet Size: 1024mmX 768mm Package: Wooden Case
High Light:

outdoor advertising led display screen

,

outdoor led display boards

Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board





Products Description:



1. Error detection and monitoring:it can monitor the inner temoerature,voltage,cooling fans etc and error detection automatically.

2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.

3. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens3..

4.. Good LEDs:use DIP346 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.

5. Dual back-up:both power supply and system dual back-up are optional,reliable performance.

6. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,the gray level is still high even under the condition of low brightness

7. Front maintain and easy operation

8.Long life time > 100,000 hours

9.Clear vivid image quality

10.Can adjust the brightness auotomatically

11. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive

 12. Good heat dissipation capability because of the unique design of vent fan.





P16 outdoor advertising led display

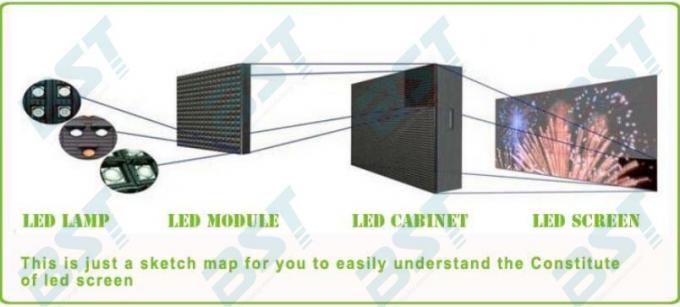

Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 0

Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 1





Aging Test





Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 2

Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 3





Application:



Stadium perimeter,Commercial advertising, business establishments,mobile media,, such as banks, stock exchange centers, telecommunications, customs, bus station, schools,stadiums, studio, shopping malls, airports, harbors,railways,etc;





Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 4





Specification:



LED Module Parameters

Item Parameter
Model number P16
Module size 256x128mm
Pixel pitch 16mm
Pixel density 3906dots/m2
Pixel configuration 1R1G1B
Package mode DIP346
Pixel resolution 16dots(W)*8dots(H)
Max Power 20W
Module thickness 30mm
Weight 0.4kg
Drive type constant drive
scan mode Static Drive
Port type hub75
Brightness of white balance ≥7000cd/m2

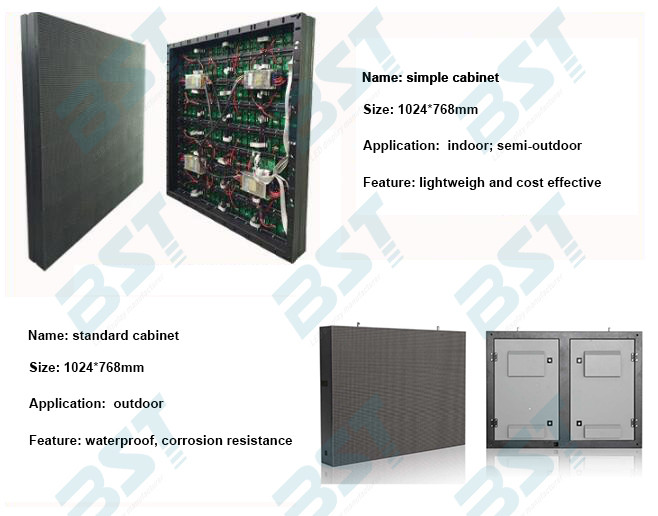

Cabinet Parameters

Dimension 1024mm*768mm
Monomer Module Number 24
Power supply 5V/60A*3pc
Thermal discharge anto
Pixel per cabinet 64*48dots
Best viewing distance 16M~200M
Best viewing angle 120°(W)60°(H)
Temperature

storage:-35°C~+85°C

working:-20°C~+50°C

Relative humidity 10%~95%
Thickness 160mm

Screen Parameters

Power Working voltage AC220V/AC110V±10%
Average Power consumption 250W/m2
Max Power consumption ≤550W/m2
Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation systerm WIN98/2000/NT/XP/WIN7
Control method Synchronization
Main technical parameter Driving device Constant drive IC
Refresh frequency ≥1500HZ
Grey scale/colors 4096 gray level/16.7M colors
MTBF ≥10000hours
Fire rate grade one
Display Mode ≥800*600/1024*768



Packing and shipment

Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 5

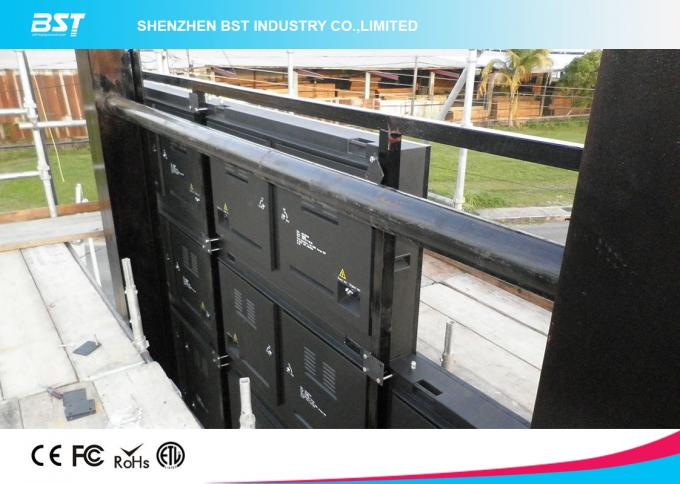

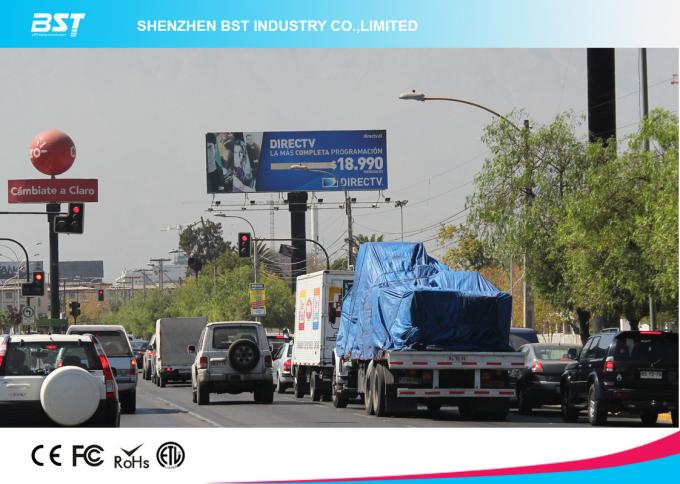

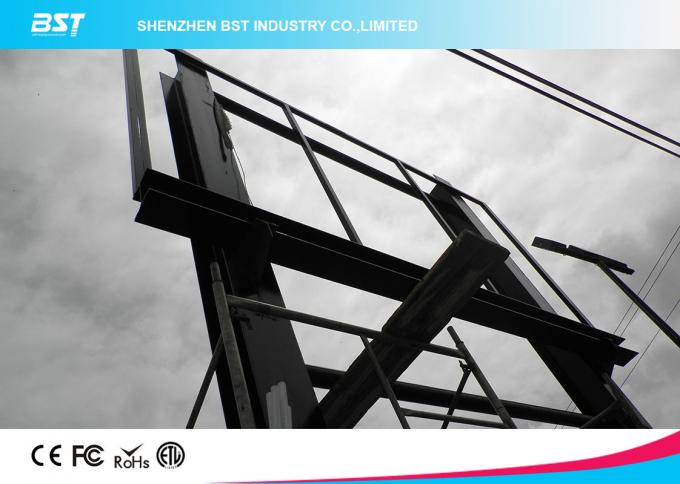

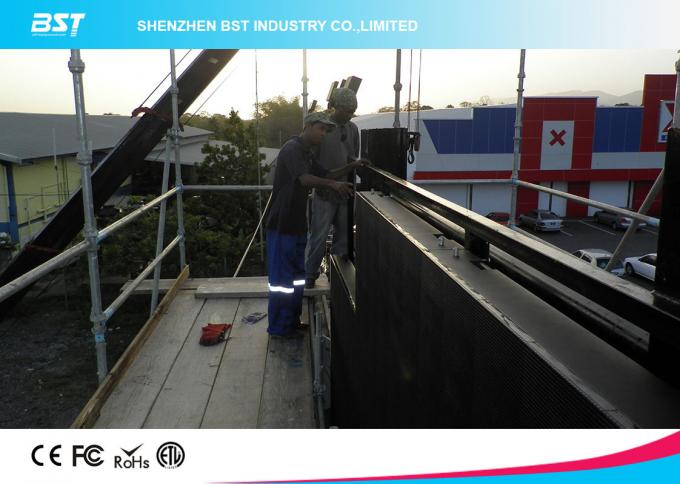

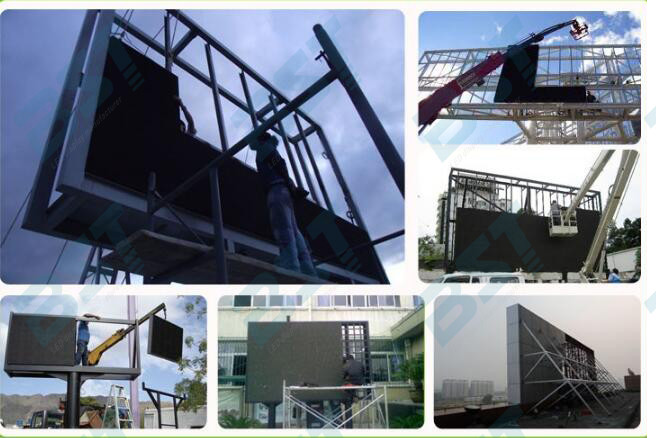

Installation
Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 6
Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 7
Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 8
Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 9

Waterproof P16 Outdoor Advertising Led Display 1R1G1B , Led Video Display Board 10
Our Services



Training Free of charges;In our workshop, we provide all the training including process of operation, installation, maintenance, system set up, etc.
Warranty

1, 2years, .From beginning of installation finished the led display, During it , we will be responsible for all the quality problem.

2, After the completion of the project, we will conduct life maintenance of the system continuously and update the and software.

3, For the hardware equipment, we only collect expenses on components.

Guarantee

1, All the life time for Technology support , system update ,maintenance .

2, We guarantee that the equipment we provide are brand new, complete and unused before delivery .

Remark



1. We are manufacturer of LED display. We only provide the Screen, Cabinet and module,

but do not take charge for the installation in overseas; Technical support is available.

2. The above offer included the cabinet, power supply, power cord,and other basic components; etc.

3. The above offer do NOT included the delivery, insurance, installation and debugging cost;

4. Packing with Ply-wood box, or Carton ;

5.Problems during use.

some spare parts for you, once the screen get problems, please follow up below steps to solve it:

Step1: Take some pictures about the working status of the screen;

Step2: Replace the broken cabinet by the new cabinet;

Step3: Contact with us, and send the pictures to us, we will help you to analyze the problems.

Step4: If it is necessary, please post it to our company, we will maintain it for you as soon as possible, and then deliver it to you.



FAQ

Q1,How to arrange payment?

Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable



Q2,What is our warranty?

Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well



Q3,How to be our distributor?

To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time



Q4, How to maintence led screen?

In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules



Q5,How to select led type?

In usually,

For indoor stage will be select indoor die casting P1.6 P1.9 P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25 P8

For outdoor stage will be select P4.81 P5 P6.25 P6 P8 P10

For Indoor fixed installed led screen, can select P1.6 P1.9 P2.5 P3 P4 P5 P6 P7.62 P8 P10

For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP5 P6 P8 P10,DIP P10 P12

if directly to sun,can select outdoor SMD P8, DIP P10

For big size led screen can select DIP P10 P12 P16 or P20
