P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle

Certification
China ShenZhen BST Industry Co., Limited certification
China ShenZhen BST Industry Co., Limited certification
Customer Reviews
Your company's feedback and solution always the fastest and best, I like your working attitude,It was easy to work with BST.

—— Mr. Robert Walker

Glad to cooperate with BST again,they are patient to answer all questions,professional, knowledgeable,very good service.

—— Mr. Ismael Rodrigues

We would recommend the BST Signs to anyone needing to draw attention to to their business, Appreciate all your help!

—— Mr Roger Vachon

We are very much enjoying our nice led display& look forward to many years of use. Thank you for providing such great service.

—— Mr. Jorge Misri

They are very professional, and always available to provide tech support, they went over making sure that we up and running.

—— Ms Helene Myshka

We have been working with you for over 3 years.We are extremely pleased with BST responsiveness, assistance of the products.

—— Mr. Antoni Rojas Ortiz

We were pleased with the experience of the staff in selection of the LED displays& the other components of the project.

—— Mr. Petar Petrović

You recommended the correct size screen for our application&didn’t pressure us into a sale. I am highly satisfied with BST.

—— Mr. Alonso Ramos Aguilar

Our experience as told you before has been great. I would recommend you guys to anyone looking into buying a led display.

—— Mr. Andreas Müller

We feel we have great product for the dollars spent. It gives us great flexibility in what we are able to communicate through it.

—— Mr Dave Sharpe

We are very happy with the customer service as well as the follow up calls that we have received since our new led display.

—— Mr Juan Garcia Garcia

We were lucky to get the led display with the promotional price, but from our research you seemed like you were competitive.

—— Mr. James Suchat

I'm Online Chat Now

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle
P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle

Large Image :  P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle

Product Details:

Place of Origin: Shenzhen, China
Brand Name: BST
Certification: CE, RoHS, CCC, IP65
Model Number: BST-OAS-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc / 1 sqm.
Price: Negotiation
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 10-20 days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sq.meter / Month
Detailed Product Description
Product Name: LED Display Billboard Pixel Pitch: 8mm
LED Type: SMD3535 Density: 10000dots/sqm
Cabinet Size: 1024mm X 768mm Package: Wooden Case
High Light:

outdoor led display boards

,

outdoor full color led display

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 0



Product Feature:



1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology

developing trend

2) Good heat emission, waterproof and stable performance

3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV

broadcasting signal

4) High resolution and definition of screen image, clear and non-flash screen image

5) Supports video and radio frequency input, special structure can be freely assembled

6) The Sports Perimeter Display is most commonly used for advertising on the perimeter/boundary of

football ground, cricket ground, baseball ground, etc

7). Automatic brightness control,super processing ability,strong colour restoration.

8). Support various interfaces and signal sources.

9). Advanced digital control technology, excellent effect.

10). High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of

your full color outdoor led display screen's investment.

11).Comprehensive Application. It can be used in different suitations for mulit purposes such as lease market, advertisement, stadium, shopmall etc.

12).Uniform performance

BST always insists using same batch of high quality lamps to make LED screen. Therefore, the LED

screen looks more uniform. No need to do dot correct.





P8 outdoor Advertising LED Display

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 1

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 2

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 3

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 4

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 5

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 6



Specification:



BST-OAS-8 Outdoor Full Color Led Display Spec.

1

Pixel Pitch

8mm

2

Density per sqm

15625 pixel

3

Pixel configuration

1R1G1B

4

LED package

SMD3535

5

Module resolution

32 dots*32dots

6

Module size

256mm*256mm

7

Whiteness brightness

≥6000nits

8

Grey Scale/Color

Display colors≥16.7m

9

Optimum Viewing Distance

8m

10

Driving method

1/4 Scan ,Constant Current

11

View Angle

(H) 140°(V)/ 140°

12

Frame frequency

60 Hz

13

Refresh Rate

>800 Hz

14

Max power

900W/sqm

15

Average power

300W/sqm

16

Protection classification

IP65 front/IP54 rear

17

Cabinet Weight

55 Kg

18

Install mode

Wall mount, hung and stand structure

19

Cabinet Material

Iron/Aluminum

20

Working voltage

AC 110/220v

21

Control method

Synchronization or Asynchronization

22

Malfunction dot rate

Less than 0.0001

23

Working temperature

-20~60°C

24

Working Humidity

10%-95%

25

 Lifetime

100,000 hours

26

 MTBF

≥ 10000 hours

27

 Whole display flatness

less than 1mm juncture

28

 Transmission distance

LAN cable ≤ 100m,optic fiber transmission,MMF ≤500m, SMF ≤15km



Application:

  • TV studio,Sports stadiums & arenas,Concerts & live events,Retail stores & shopping centres,

  • Airport, train & bus stations,Museums & visitor attractions

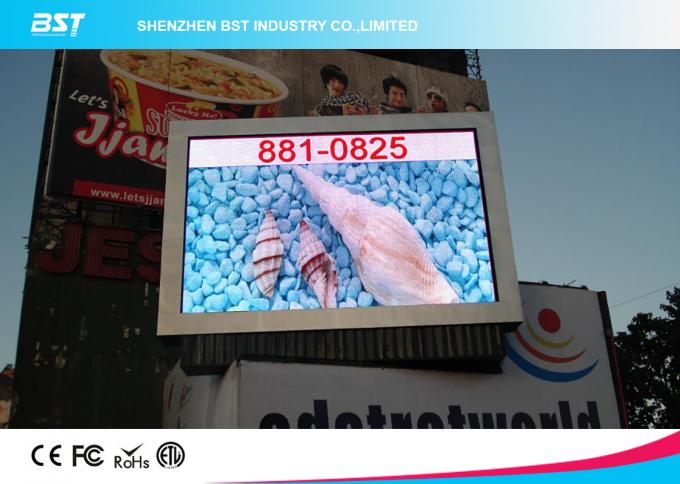

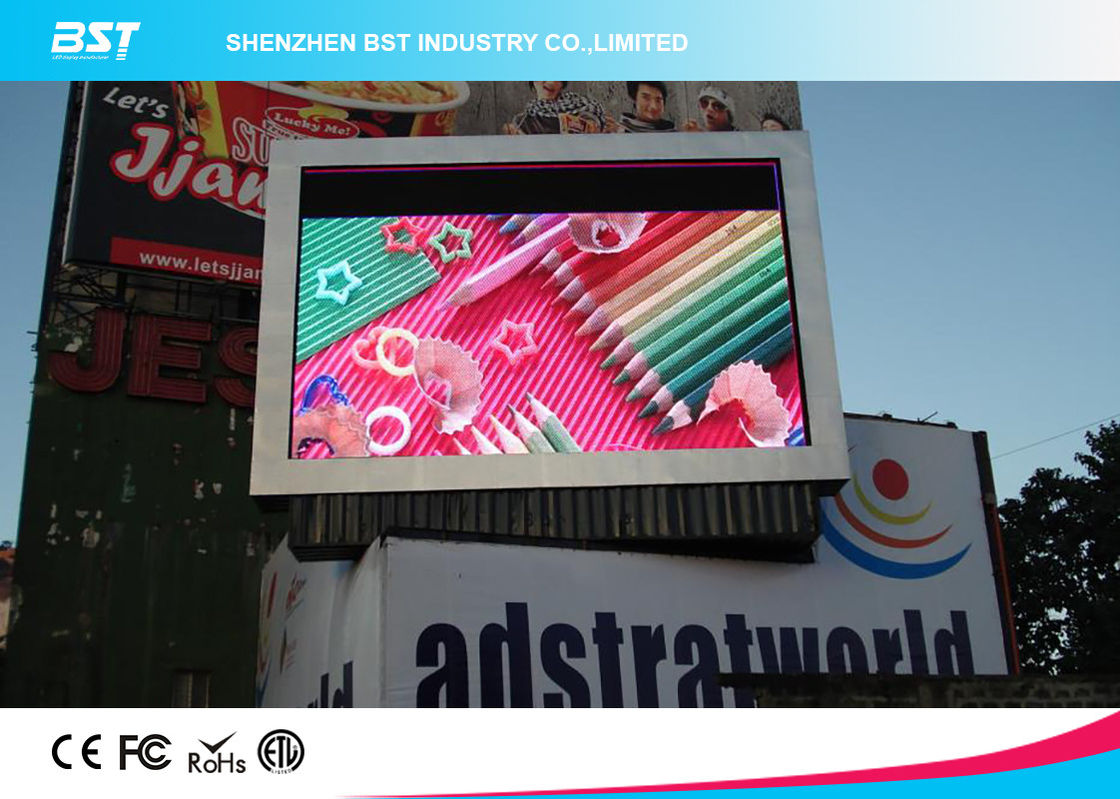

Installation



P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 7

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 8P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 9

Our service

1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM , any your customized led display we can help you to design and put into production.
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win


FAQ
Q:What’s your payment term?

A:The term’s of payment is 30% deposit,and balance T/T before shippment

Q: What about the quality?

A: We control the quality form the raw material, we only choose the qualified supplier to cooperate, and we have strictly inspection process, we know how to keep the brand value for both of us!

Q: Do you offer FREE sample?
A: We need to charge for the cost of the sample, however it can be refund if your place a lagre order.
Q: How many years of warranty can you offer?
A: We normally offer 2 year of warranty, but you need longer warranty, the price should be a little higher.
Q: What's the delivery time?

A: For module as normally within 7 working days and for screen and led cabinet the delivery date is 15-25 working days.



How to order?

Please tell us the details about the LED display and the quantity that you need in the email. After we confirm all the detailed information, we will make a PI (Performa invoice) for you to confirm the order. Once you paid, we deliver it ASAP.

Payment

<USD2000, 100% payment need to be made in advance after the order is confirmed

>USD2000, 30% as deposite , and balance before the shipment

Payment terms: T/T ; Western Union ; PAYPAL

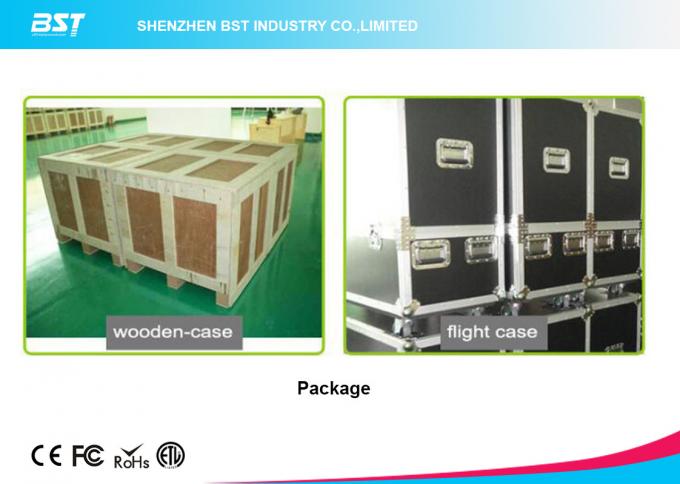

Packaging

Fumigation-free plywood box, airflight case, carton , etc.

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 10
Delivery

1, Sample within 1-2days;

2, Wholesales 3-7days according different quantities;

3, OEM 10-15days after receiving your sample confirmation.

Shipping

1,UPS/DHL/EMS/HKEMS/FEDEX/HK post/TNT and so on express(door to door);
2, By air, Pls choose your favorite shipping method according your detail requirement;
3,The shipping discount is different in different season and depend different weight; we will choose the cheapest and safest way according your detail quantities;
4, Normally, it will take around 3~30days from China to destination country.


P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 11
After-sale service

1: we will replace the broken parts with new parts in the next order

3: choose the cheapest and safest shipping company

4: Track the order until you get the goods



Workshop

P8 SMD 3535 Outdoor Advertising Led Display Screen With 140° View Angle 12
