High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable

Certification
China ShenZhen BST Industry Co., Limited certification
China ShenZhen BST Industry Co., Limited certification
Customer Reviews
Your company's feedback and solution always the fastest and best, I like your working attitude,It was easy to work with BST.

—— Mr. Robert Walker

Glad to cooperate with BST again,they are patient to answer all questions,professional, knowledgeable,very good service.

—— Mr. Ismael Rodrigues

We would recommend the BST Signs to anyone needing to draw attention to to their business, Appreciate all your help!

—— Mr Roger Vachon

We are very much enjoying our nice led display& look forward to many years of use. Thank you for providing such great service.

—— Mr. Jorge Misri

They are very professional, and always available to provide tech support, they went over making sure that we up and running.

—— Ms Helene Myshka

We have been working with you for over 3 years.We are extremely pleased with BST responsiveness, assistance of the products.

—— Mr. Antoni Rojas Ortiz

We were pleased with the experience of the staff in selection of the LED displays& the other components of the project.

—— Mr. Petar Petrović

You recommended the correct size screen for our application&didn’t pressure us into a sale. I am highly satisfied with BST.

—— Mr. Alonso Ramos Aguilar

Our experience as told you before has been great. I would recommend you guys to anyone looking into buying a led display.

—— Mr. Andreas Müller

We feel we have great product for the dollars spent. It gives us great flexibility in what we are able to communicate through it.

—— Mr Dave Sharpe

We are very happy with the customer service as well as the follow up calls that we have received since our new led display.

—— Mr Juan Garcia Garcia

We were lucky to get the led display with the promotional price, but from our research you seemed like you were competitive.

—— Mr. James Suchat

I'm Online Chat Now

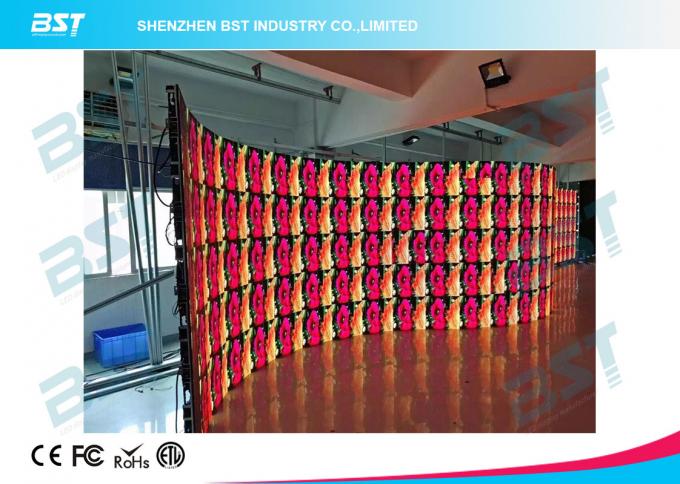

High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable

High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable
High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable

Large Image :  High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable

Product Details:

Place of Origin: Shenzhen, China
Brand Name: BST
Certification: CE, RoHS, CCC, IP65
Model Number: BST-OCV-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc/ 1 sqm.
Price: Negotiation
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 10-20 days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sq.meter / Month
Detailed Product Description
Product Name: LED Display Screen Viewing Angle:: H:140° V:140°
LED Encapsulation:: SMD3528 Physical Pixel Density:: 10000dots/sqm
Input Voltage:: AC220V/50Hz ±10% Operating Environment:: Humidity:10%95%RH
Brightness: >1200nits/sqm Refresh Rate: >1500hz
High Light:

curved led panels

,

hd led screen



High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable



1. Cabinet size:500mmW*1000mmH, thickness around 60mm, only12.8Kg;
2. With fast locks, easy to install and dismantle;
3. Linsn or Nova control system, high refresh rate, true color output;
4. buttons on the backdoor, easy to open and close;
5.Packed by flight cases, ready to go anywhere;
6.Can be suspended on truss or stacked on floor;



Description:



1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, what's App or other ways for free.

4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, ETL and so on.

5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional service
 We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.

Application:
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.



Specification:



Item

Technical Specification







Pixel

Pixel pitch:  10mm

Pixel configuration:  SMD3528 1R1G1B

Wave length:  Red: 625±2nm  Green: 525±2nm  Blue: 470±2nm

Module resolution:  24×32pixels



Module

Module size:  240mmx320mm

Cabinet size:  480mm×960mm







Cabinet

Cabinet resolution: 4608 pixels

Cabinet material: aluminum

Gross weight: 9.3kg

Module quantity: 6pcs= 2(w) x 3(h)

Power consumption : Max.:800W/m²    Everage: 300W/m²





Screen parameter

Drive method: 1/8 scan

Brightness: 1200cd/m²

Angel adjustable: 0-15degress

Density: 10000 pixel/m²

Whole display flatness: ≤ 1mm juncture

Best view distance: ≥ 10m

Viewing angle:  Horizontal:   140°       Vertical:  140°

Humidity(RH): ≤ 90~95%

Working temperature: from -30°C to +60°C

Working voltage: AC220V/110V±10%

Refresh frequency:    ≥ 1500Hz

Frame rate: ≥ 60Hz

Protection grade: IP43

MTBF: More than 10000hrs

Life time: 100,000 hrs





Control system

Control system: Linsn or Nova

Signal interface: DVI

Communication distance: Internet cable: ≤120m / Fiber cable: 1000m

Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000, WIN8)













High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable 0



High Brightness Curved Mesh / Strip Flexible Led Display Screen Angle Adjustable 1






AQ



Q1: What's the pixel pitch for Outdoor LED Display Screen ?

A1: Indoor&Outdoor (4mm/5mm/6mm / 8 mm/ 10mm/12mm/16mm )

Q2: Where is it used for?

A2:

•---Outdoor advertising, digital billboards, advertising in big companies
•---Sports halls, fields, playgrounds.
•---Airports, bus stations and railway passenger terminals.
•---Facades of shopping malls, department stores, banks and car dealerships.
•---Architecture and social projects, information systems in cities.
•---Show-business, concerts, festivals, motor shows and other public events.
environment.



Q3: Can it play HD video?

A3: Yes, it can realize HD video function with Novastar or Linsn controlling system.

Q4: What's the controlling system?

A4: Our standard controlling system for this model is Linsn. Also support other controlling system, like Novastar, etc.

Q5: How about the size of project?

A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.







Our Services



BST has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
