Product Details:
Payment & Shipping Terms:
|
| Power Supply:: | AC 110/220V | Display Function:: | HD Video,Image |
|---|---|---|---|
| Scan Mode:: | 1/16 Scan | Brightness: | 1200nits /sqm |
| Resolution: | 65210 | Color: | Full Color |
| LED Lamp:: | SMD2121 | Warranty: | 2years |
| High Light: | LED Video Wall Screen,mobile led screens |
||
500*500mm Die-casting aluminum full color led screen with highest refresh rate
Describe:
1. It adopts SMD 2121 Black LEDs, which is used by Black frame,high contrast and colorful, diffusing encapsulation with epoxy resin,wide viewing angle,soft light and good conformity.
2. High reliability,long lifespan and easy to control.
3. The pixel density is up to 65536 pixel per S.Q.meter. As the small pixel,it can display the picture more clearer.
4. No mosaic due to excellent flatness and nice uniformity of light-emitting,making the images softer and vivider.
5. Wide viewing angles and the horizontal angle can reach 120° the images effect will not
Change largely in the range.
Specification
| Model | BST-P3.91-I |
| Pixel Pitch | 3.91mm |
| Unit Size | 500mmx500mm/500mmX1000mm |
| LED Type | SMD2121 |
| Pixel / Unit | 128*128/128*256 |
| Unit Weight | 7.5kg/14Kg |
| Viewing Angle(H/V) | 140°/140° |
| Application | Storage-40~60° C, Working-20~50° C |
| Protection Level(Front/Rear) | IP40/IP21 |
| Power Consumption | 280w/m2 |
| Driving | 1/16 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Processing | 16bit |
| Brightness | >1200nits |
| Power Supply | AC 110/220±10%, 50~60Hz |
| MTBF | ≥ 1, 000 Hours |
| Life Span | ≥ 100, 000 Hours |
| Pixel Failure | < 0.0003 |
Best Viewing Distance of Rental led display:
P3 led display for the best viewing distance between 3-10m
P4 led display for the best viewing distance between 4-15m
P5 led display for the best viewing distance between 5-20m
P6 led display for the best viewing distance between 6-25m
P8 led display for the best viewing distance between 8-30m
P10 led display for the best viewing distance between 10-33m
P12 led display for the best viewing distance between 12-40m
P16 led display for the best viewing distance between 15-45m
P20 led display for the best viewing distance between 18-60m
P25 led display for the best viewing distance between 20-70m
P31.25 led display for the best viewing distance between 25-100m
Why Choose us?
BST has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Controller connection
Packing and shipment
Applications:

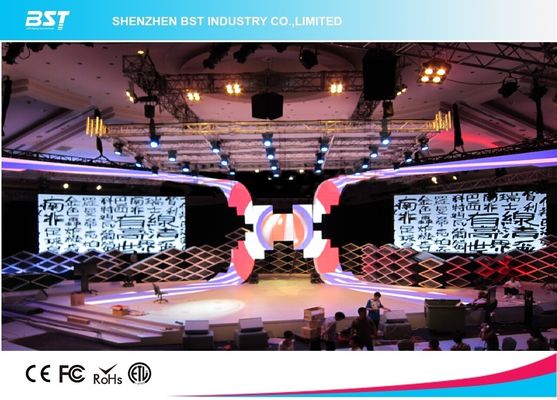

various applications such as broadcasting studios, control rooms, command centers, monitoring centers, pavilions, conference rooms and etc.
