Outdoor Digital Signage: Ultra-Thin Design, 8000nits & No AC Needed | Waterproof & Fireproof | 10-Year Durability Revolutionary Outdoor Display: Fireproof Aluminum, Zero AC Costs | Front/Rear

Large Image : Outdoor Digital Signage: Ultra-Thin Design, 8000nits & No AC Needed | Waterproof & Fireproof | 10-Year Durability Revolutionary Outdoor Display: Fireproof Aluminum, Zero AC Costs | Front/Rear

Product Details:

Place of Origin:	China
Brand Name:	Grace Visual
Certification:	CCC,CE,ETL,RoHS
Model Number:	OA
Document:	OA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	6
Packaging Details:	Wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	500000

Contact Now

Detailed Product Description

Physical Pitch:	4.4-8mm	Pixel Conguration:	SMD2727
Module Dimension(WxHxD):	480x320x15mm	Panel Dimension(WxHxD):	960x960x85mm
No. Of Module/panel(WxH):	2x3	Panel Material:	Die-casting Aluminum
Panel Weight:	26.5kg(58.42Ibs)	Gray Scale:	16bit
Contrast Ratio:	15000:1	Avg. Power Consumption:	186w/㎡
Max. Power Consumption:	550w/㎡	Operating Temp/Humidity:	-100C - 600C / 10% - 60%
Storage Temp/Humidity:	-300C - 600C / 10% - 60%	Refresh Rate:	3840hz
Brightness:	6000nits/10000nits	Viewing Angle(H/V):	1400/1200
Expected Lifetime:	Expected Lifetime	Service:	Front & Rear
IP Rating(Front/Rear):	IP66
Highlight:	Fireproof Outdoor Digital Signage , Ultra-Thin Outdoor Digital Signage , Waterproof Outdoor Digital Signage

Core Technology & Design Advantages

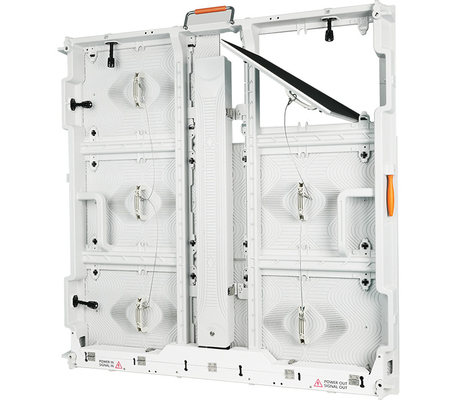

Advanced Thermal Management
- White Aluminum Alloy Frame: Engineered for optimal heat dissipation, reducing internal temperature rise to below 20°C.
- No AC Required: Eliminates air conditioning costs, lowering long-term operational expenses by 30–50%.

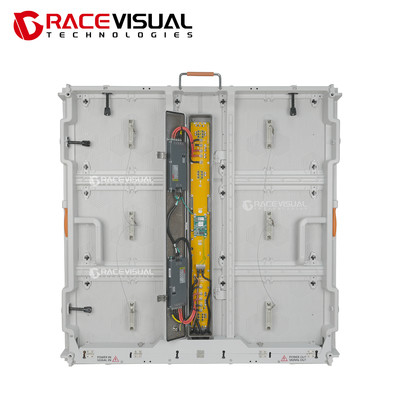

- Dual Maintenance Access: Front/rear service options simplify repairs without disassembling the entire structure.
Ultra-Bright & Energy-Efficient Performance
- 5000–8000nits Adjustable Brightness: Ensures vivid visibility even in direct sunlight (e.g., highways, plazas).
- Common Anode Low-Voltage Power Supply: Reduces energy consumption by 50% compared to traditional displays.
- Low Attenuation: Maintains 90% brightness after 10,000 hours of operation.
Robust Build & Environmental Adaptability
- Die-Cast Aluminum Cabinets: Fireproof (UL94 V-0 rated), corrosion-resistant, and lightweight (26.5kg per cabinet).
- IP66 Protection: Dustproof, waterproof, and resistant to harsh weather (-30°C to 60°C).
- Wide Viewing Angles: 140° horizontal / 120° vertical for optimal audience coverage in high-traffic areas.
Premium Visual Experience
- 16-Bit Grayscale & 15,000:1 Contrast: Delivers 281 trillion colors for lifelike images and smooth gradients.
- 3840Hz Refresh Rate: Eliminates flicker and ghosting, ideal for dynamic video ads.
- Pixel Density Options: Ranging from 10,000 to 50,625px/m² (model-dependent) for sharp close-up or long-distance viewing.

Model Comparison & Applications

Model	Pitch	Best Use Cases
OA-4.4	4.4mm	High-end retail façades, luxury brand billboards (ultra-fine details).
OA-5.7	5.7mm	Bus stations, shopping malls (balance of clarity and cost).
OA-6.67	6.67mm	Stadiums, event stages (medium viewing distances).
OA-8	8mm	Highway billboards, large outdoor plazas (long-distance visibility).
OA-10	10mm	Building wraps, landmarks (budget-friendly large-scale installations).

Certifications & Warranty

Global Compliance: CE, ETL, RoHS, CCC certifications ensure safety and environmental standards.
2-Year Warranty: Covers modules, power supplies, and control systems.
100,000-Hour Lifespan: Backed by industrial-grade components (equivalent to 10+ years at 10h/day).

Why Choose OA Series?

Cost Efficiency: Save on energy (550W/m² max) and maintenance (front/rear access).
Future-Proof: Modular design allows easy upgrades or expansions.
Versatile Installation: Wall-mounted, hanging, or freestanding configurations for any outdoor space.
