OE Series LED Panel | High-Performance Outdoor Video Wall | Lightweight & Durable | Tool-Free Design | Bright Display Even in Sunlight | Perfect for Outdoor Advertising & Stage Backdrops

OE Series LED Display – Product Introduction

1. Key Points

• Ultra-Lightweight Design
  Each panel weighs only 23.5kg (51.8 lbs), significantly reducing structural load and easing installation and transport.

• Multiple Pixel Pitch Options
  Available in 3.9mm, 4.8mm, 6.2mm, 7.8mm, and 10.4mm to meet various resolution and viewing distance requirements.

• Stunning Visual Performance

  • 16-bit grayscale and 4000:1 contrast ratio for rich color depth.

  • High brightness ≥5000 nits for excellent visibility even in direct sunlight.

  • Ultra-high 3840Hz refresh rate ensures smooth playback and camera-friendly display.

2. Product Features

• Tool-Free Module Design
  Fast-lock module system allows for quick, easy maintenance and replacement.

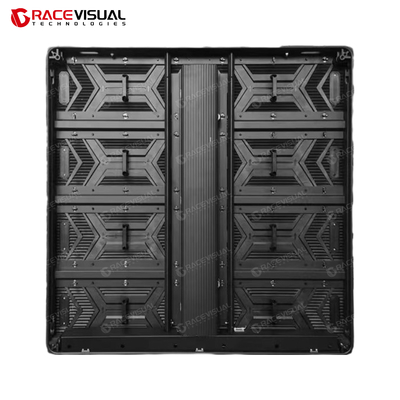

• Concealed Wiring Structure
  Clean and neat backside design improves overall aesthetics and project presentation.

• Front Service Support
  Enables installation and maintenance in limited spaces, enhancing flexibility.

• High-Precision Die-Cast Aluminum Frame
  Ensures seamless splicing and a flat display surface for consistent visuals.

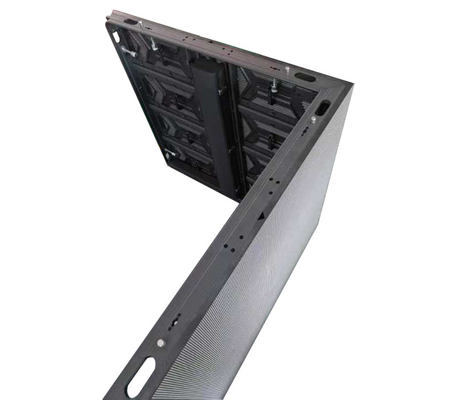

• Creative Splicing Support
  Capable of 90° right-angle connection and curved/folding screen setup, ideal for creative structures like columns and corners.

• Excellent Weather Resistance

  • IP65 (front) and IP54 (rear) ratings for reliable outdoor performance.

  • Operating temperature: -10°C to 60°C, with 10%–60% humidity tolerance.

• Energy Efficient & Long-Lasting

  • Average power consumption: 218W/m²; Max: 650W/m².

  • Long service life up to 100,000 hours ensures low TCO.

3. Application Scenarios

• Outdoor Advertising & Media
  Ideal for billboards, commercial squares, and public signage with high brightness and weather durability.

• Stage & Event Backdrops
  Perfect for concerts and live events with high refresh rate and stacking/hanging support.

• Transportation & Public Info Display
  Suitable for airports, train stations, stadiums, and other public venues.

• Creative Installations
  Supports custom and artistic setups for exhibitions, architectural facades, retail installations, and more.

For more information, please visit www.gracevisual.us
