Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Display Panel Board | IP Rationg (Front/Rear): | IP 65/IP54 |
|---|---|---|---|
| Expected Lifetime: | 100,000Hrs | Vertical Viewing Angle: | 140° |
| Horizontal Viewing Angle: | 160° | OEM: | Yes |
| High Light: | led display sign,led video display board |
||

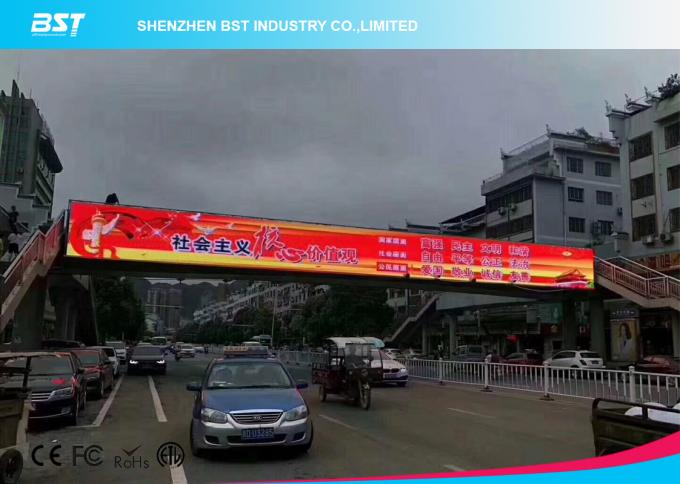

Shopping Mall LED Display Panel Board / Large LED Shop Display Screen
LED Display Panel Board Quick Detail:
1, High brightness DIP LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
2, With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3, Weatherproof design, completely outdoor use.
4, Easy for assembling and connection with the connector added.
5, High color uniformity and clear image can bring you a vivid audio visual effect.
6, The maintenance of pixel and single led has been realized.
7, Good quality raw material, accurate technique and careful inspection insures the high quality of led display
LED Display Panel Board Characteristics:
-- Available models: P10, P16, P20mm
-- Front service of cabinet for easy maintenance
-- High contrast ratio: > 2000:1
-- Play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and
other equipment
-- High Brightness: >6500nits
-- Different video frequency can be changed freely at the same time, and the image can be enlarged and
reduced

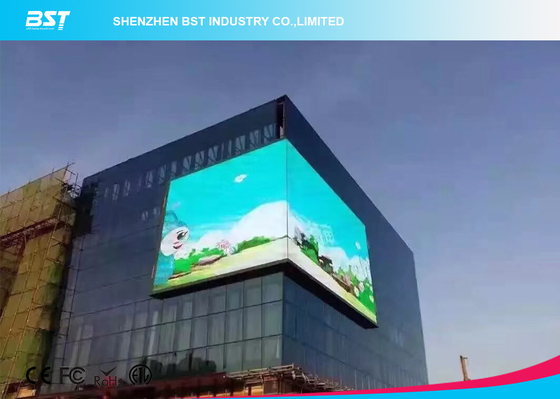

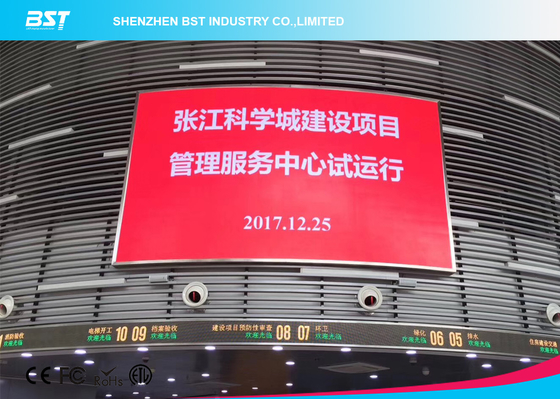

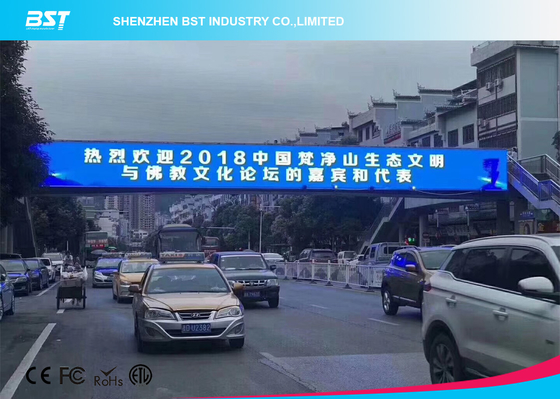

LED Display Panel Board Application:
Stadium perimeter,Commercial advertising, business establishments,mobile media,busy street or intersections,conference,shows,concerts,sporting event,grand opening,exhibitions,political rallies,elections etc, such as banks, stock exchange centers, telecommunications, customs, bus station, schools,stadiums, studio, shopping malls, airports, harbors,railways,etc;.
LED Display Panel Board Specifications:
| LED Display Panel Board SPECIFICATION | |||
| ODF-4 | ODF-8 | ODF-10 | |
| Physical Pitch | 4.81mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD3535 | SMD3535 / DIP346 |
| Pixel Density | 43,264 pixels/sqm | 15,625 pixels/sqm | 10,000pixels/sqm |
| Module Dimensions (WXH)(mm) |
250X250 | 256X256 | 320X320 |
| Panel Dimensions(mm) | 1000X1000 | 1280X960 | 1280X960 |
| No. of Modules Per Panel(WXH) |
4X4 | 4X3 | 4X3 |
| Physical Resolution of Module(WXH) |
52X52 | 40X40 | 32X32 |
| Physical Resolution of Panel(WXH) |
208X208 | 160X120 | 128X96 |
| Panel Material | Cold Steel | Cold Steel | Cold Steel |
| Weight per panel (kg) |
65 | 79 | 79 |
| Processing | 16bit | 16bit | 16bit |
| Driving Method | 1/9 scan | 1/4 scan | 1/4scan or 1/2scan |
| Average Power Consumption |
250 W/panel | 360 W/panel | 360 W/panel |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
| Brightess | ≥5,500nits | ≥6,500nits | ≥6,500nits |
| Horizontal Viewing Angle |
140° | 160° | 160° /110° |
| Vertical Viewing Angle |
140° | 140° | 140° / 70° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rationg (Front/Rear) |
IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
| Working Temperature | —20℃-50℃/—40℃-60℃ | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
| Working Humidity | 10%-90%RH/10%-85%RH | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
