Product Details:
Payment & Shipping Terms:
|
| Cabinet Material: | Iron/Aluminum | Power Consumption (max/avg):: | 600W/300W |
|---|---|---|---|
| LED Type: | SMD3535 | Density: | 15625dots/sqm |
| Module Resolution:: | 32X32pixel | Outdoor Waterproof: | IP65/IP54 |
| High Light: | curved led display,hd led screen |
||

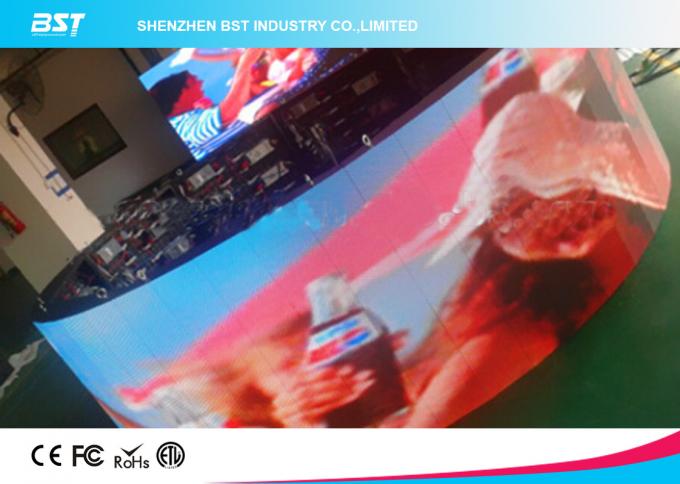

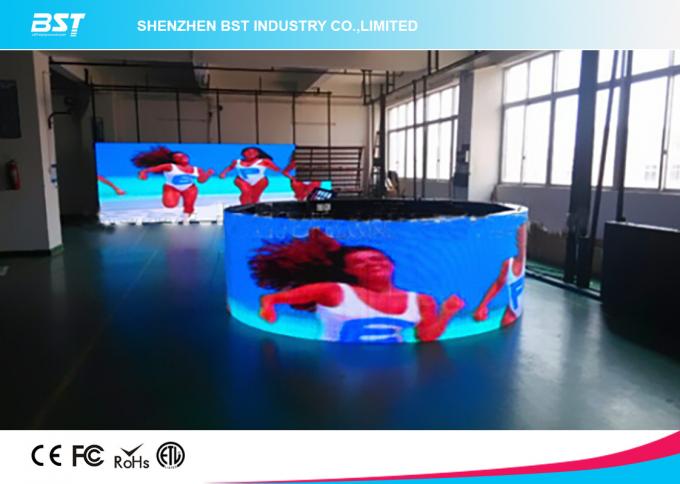

IP65 High Brightness SMD 3 in 1 Outdoor curved video LED Display screen 8mm pixel pitch
Quick Detail:
1. Good quality, the brightness is adjustability
2. Wide viewing angle
3. Good consistency,large stock
4. More than 100,000hours life span

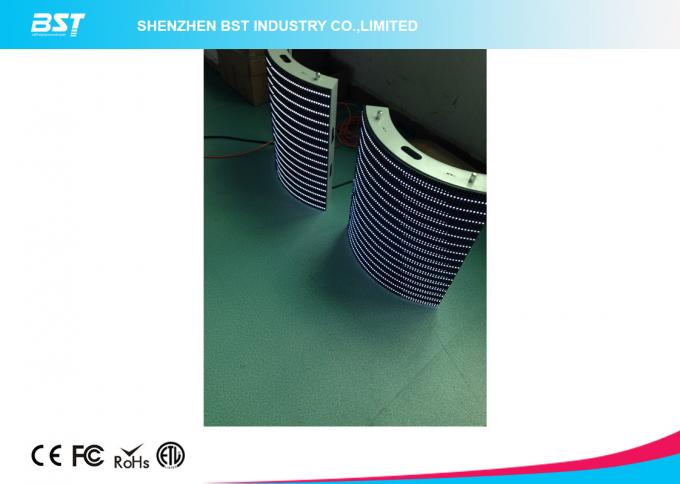

5, 15degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
6. Mainly be used for indoor and outdoor advertising, and outdoor wall decoration
7. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.
8. Curve degrees can be adjusted accordingly to different requests of architectural design
9.Extremely narrow gap between modules contributes to clear image and smooth transition between modules without interval.
10. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining;
11.Inner or outer curve 0-45 degreen, seamless connection
12.Wind resistance, good heat dissipation
13.RGB meticulous gray level adjustment to make a abundant and exquisite colors and clear nature images
14.High anti-aging material, as well as high protection level, which makes it perfect for any complicated application
Specification
|
Curved LED Display Series |
BST-OCV-8 |
BST-OCV-10 |
|
Pixel Pitch(mm) |
8 |
10 |
|
Pixel Density(dots/m2) |
15625 |
10000 |
|
Brightness Max(cd/m2) |
≥6500 |
≥4500 |
|
Color Temperature(after calibration)K |
6500 |
6500 |
|
Module Size(W*H*D)(mm) |
256x256 |
160x160 |
|
Weight(kg/Panel) |
65 |
75 |
|
Weight(kg/m2) |
65 |
65 |
|
LED Type |
SMD3535 |
SMD3535 |
|
LED Chip |
Epistar |
Epistar |
|
Horizontal/Vertical Viewing Angle(º) |
H140º/V140º |
H140º/V140º |
|
Recommended Viewing Distance(m) |
8--100 |
10-100 |
|
Contrast |
2000:1 |
2000:1 |
|
Refresh Rate(Hz) |
≥1500 |
≥1500 |
|
Grey Scale(bit) |
R’G’B 16bit |
R’G’B 16bit |
|
Frame Rate(Hz) |
50/60 |
50/60 |
|
Life Time(H) |
≥100000 |
≥100000 |
|
Protection |
Outdoor |
Outdoor |
| Protection | IP65 | IP65 |
|
Max Power Consumption(W/M2) |
1000 |
1000 |
|
Avr Power Consumption (W/M2) |
≤600 |
≤600 |
|
Working Temperature |
-20C°/40C° |
-20C°/40C° |
|
Working Humidity |
10%-95% |
10%-95% |
|
Driving Method |
1/4 |
1/4 |
|
Driving Chip |
MBI5124 |
MBI5124 |
|
Cabinet Material |
Epoxy paint coated, aluminum / iron |
Epoxy paint coated, aluminum / iron |
|
Control Input |
DVI/HDMI/HDSDI |
DVI/HDMI/HDSDI |
|
Malfunction dot rate |
1 / 10000 |
1 / 10000 |
Application:

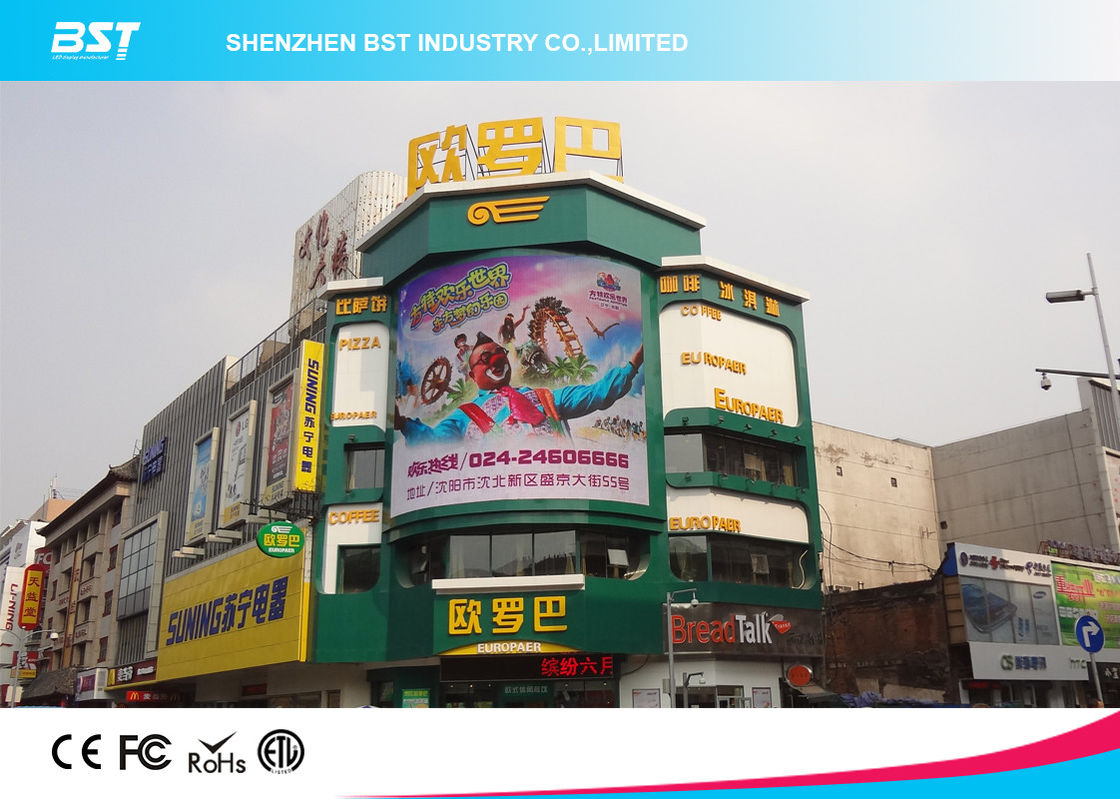

Video, graphics, stadiums, studio, sports,railways, airports, harbors, telecommunications, customs, exhibitions,shopping malls animation, advertising, banks, stock exchange centers, bus station, schools, , etc;
