Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen

Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen
Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen

Large Image :  Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen

Product Details:
Place of Origin: Shenzhen, China
Brand Name: BST
Certification: CE, RoHS, CCC, IP65
Model Number: BST-OA-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc / 1 sqm.
Price: Negotiation
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 10-20 days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sq.meter / Month
Detailed Product Description
Product Name: LED Digital Billboard Pixel Pitch: 10mm
LED Type: DIP 1R 1G 1B Density: 10000dots/sqm
Cabinet Size: 1280mm X 960mm Package: Wooden Case
High Light:

outdoor led display boards

,

outdoor full color led display

Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen



Product Description:



1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology

developing trend
2) Good heat emission, waterproof and stable performance
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV

broadcasting signal
4) High resolution and definition of screen image, clear and non-flash screen image
5) Supports video and radio frequency input, special structure can be freely assembled
6) The Sports Perimeter Display is most commonly used for advertising on the perimeter/boundary of

football ground, cricket ground, baseball ground, etc

7).High quality LED chip and high anti-static electricity capacity.
8).High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
9).Ultra high brightness,low attenuation,high reliability and weather ability.
10).The integration of lamp and driving IC,together with with the multi-circuit structure,achieves evenly-distributed current,low power consumption and fast heat dissipation.



Application:



Applied to outdoor places such as station,port,airport,shopping mall,hotel,building,stadium etc,it use as video and information display.





Outdoor Advertising LED display

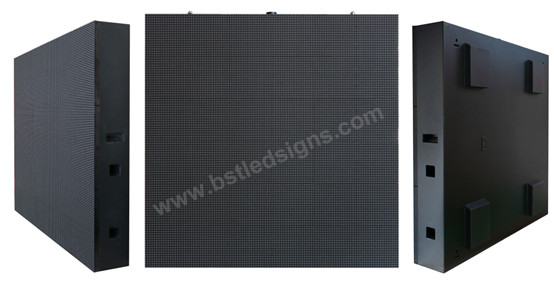

Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 0

Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 1

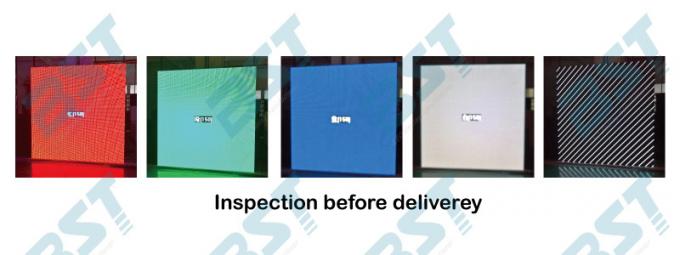

Aging Test



Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 2

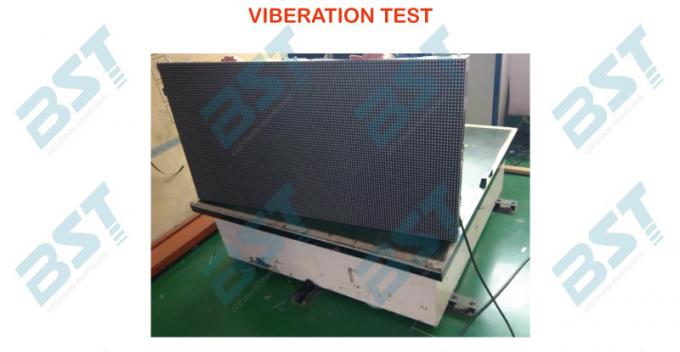

Vibration Test

Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 3

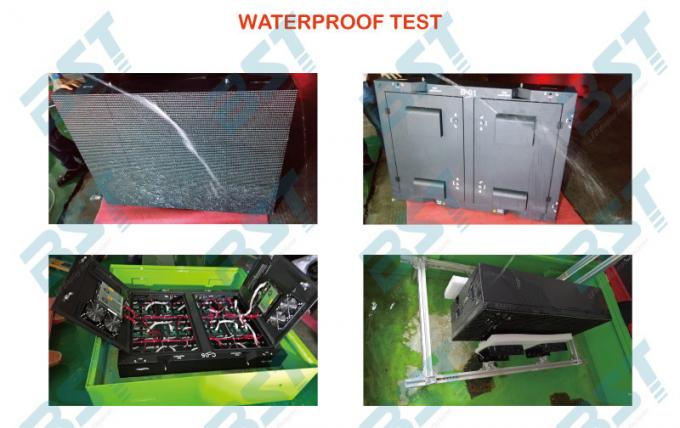

Waterproof Test

Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 4

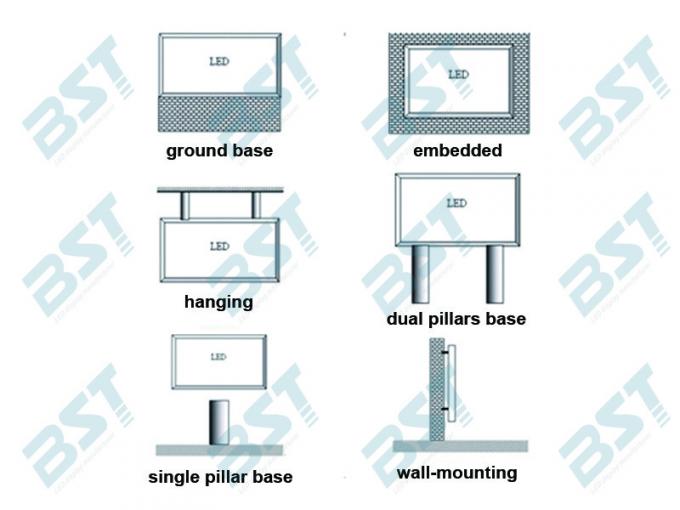

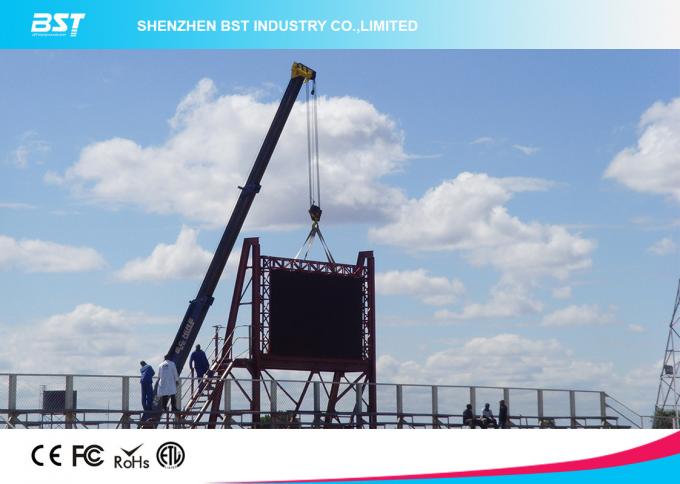

Installation



Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 5

Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 6

Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 7



Specification:



1. Outdoor LED Display Technical Parameter

Model No. BST-OA10
Pixel Pitch 10mm
Pixel Configuration 1R1G1B
LED Type DIP346
Pixel Density/Sqm 10000dots
Panel Size 1280*960mm
Panel Resolution 128*96dots
Scan Mode 1/4 scan mode
Brightness >6500nits
Shortest Viewing distance 10m
Panel Weight 65KG/Panel
Max. Power Consumption 700W/Pcs
Ave. Power Consumption 300W/Pcs
Protection Level Front: IP65, Rear: IP43
Viewing Angle 120°(H)/60°(V)
Gray Scale ≥14bit
Color Type 68 billion
Refresh Rate ≥ 1920HZ
Application 0utdoor
Controller Synchronous Display with control PC by DVI
Power Supply AC90-264V±10%
Working Environment Temperature -10℃~+50℃,humidity 10-90% RH
Span Life Time >50,000 hours



2. Outdoor LED Display Module

Module Size (W*H) 160mm*160mm Pixel Configuration 1R1G1B
Pixel Pitch 10mm Resolution (W*H) 16 dots*16 dots
Pixel Density 10000 dots/㎡ LED Type 3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H) 1280mm*960mm Module Qty 48 pcs
Cabinet Resolution (W*H) 128 dots*96 dots Cabinet Pixel 12288
Weight 65 kg/ Cabinet Area 1.23㎡
Average Power Consumption 300w/㎡ Max Consumption 700W/m2



Our Services
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.

After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 24 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.


FAQ



How to Maintenance the LED Display?



Like many traditional Electronic products, LED display screen not only need us pay attention to the way of use the process of using , but also need us to know the maintenance the LED display .Through that,it useing life will be longer .Here are ten ways of how to maintenance the LED display .



1,Keeping the full color LED display of humidity use environment,do not let any have moisture things go into it.If we let the humidity full color LED display in electric,it will cause the corrosion of full-color display components, and cause permanent damage.


2,The most closely to our user is full color LED display screen. It is very necessary to do well the maintenance work.If the display prolonged exposure in outdoor environment having wind, sun,dust ,it will easily to dirty. After a long time,there are certainly dust on the screen ,which need to be cleaned timely to prevent dust long time parcel surface to influence the watching effect.


3,To avoid meet some problem, we can combine the passive protection with active protection,and try to keep away from the items that will caused some damage to display screen .When you clean the screen ,please gently wipe as much as possible,to minimize the possibility of injury to the LED display .


4,Advising the rest time of led electronic display is above two hours every day.In the rainy season,the large LED display screen at least rest one week or more than once. At least turn on the screen once on a month,light up more than 2 hours.



The use environment of LED display:

High brightness. Due to the stadium game and activities in the daytime or intense led tube light, thus display must achieve high brightness, when light under have clearly visible effect.


Moistureproof, antisepsis and heat. Due to display large size, fixed installation, wiring more, can't do special preserved way, in addition to adapt to installation area may appear moist, rainy weather, therefore, high temperature to ensure stable and reliable use, must be considered in the design and construction of good preservation and moistureproof, cooling measures. Also should make display dustproof.



The led screen the referee the demand analysis of the system:

Display the normal service function must have the referee transmitters and improving the "software" support to complete, the referee is composed by the timer and JiFenQi. "Software" should be a complete package, to a different sports competitions and the referee rules must be fully support.


The led panel systematic analysis of requirement:
Stadium gymnasium electronic display is an important part of information system, thus led sign and control system is a systematic engineering. Control rooms computer game, referees, Taiwan, the referee device, the stadium news center etc is an organic whole, efficient service in the whole sports game is systematic design, for the whole of the large-scale sports activity networks, just component of the overall system design, thus should be fully considered compatibility, all interface all adopt standard interface, formation and network share information resources of the systematic facilities.





Packing and Shipment



Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 8

Custom DIP 346 Outdoor LED Display Advertising P10 LED Video Wall Screen 9
