Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan

Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan
Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan

Large Image :  Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan

Product Details:
Place of Origin: Shenzhen, China
Brand Name: BST
Certification: CE, RoHS, CCC, IP65
Model Number: BST-OA-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc / 1 sqm.
Price: Negotiation
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 10-20 days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sq.meter / Month
Detailed Product Description
Product Name: LED Display Billboard Pixel Pitch: 10mm
LED Type: SMD3535 Density: 10000dots/sqm
Cabinet Size: 960mm X 960mm Package: Wooden Case
High Light:

outdoor advertising led display screen

,

outdoor full color led display





Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan

Product Description:

1. Good LEDs:use SMD3535 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.
2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.
3. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,the gray level is still high even under the condition of low brightness.
4. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens.
5. Dual back-up:both power supply and system dual back-up are optional,reliable performance.
6. Error detection and monitoring:it can monitor the inner temoerature,voltage,cooling fans etc and error detection automatically.
7. Can adjust the brightness auotomatically
8.Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
9.Clear image quality even in direct,full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
10.Easy Installation & Using:easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen sytem
11.Convenient Servicing:Front and rear cabinet access and rear led flexible make the maintance work very convenient and low cost to help you concentrate more time and energy on your main maketing promotion business.

Application:

Outdoor commercial advertising, building, stadium, hotel, airport etc. Use for video on display.

Specification:


  Model BST-OA6 BST-OA8 BST-OA10 BST-OA16
Module Pixel Pitch (mm) 6 8 10 16
LED Lamp Model SMD2727 SMD3535 SMD 3535 DIP 346
Model Size (mm) 192*192 256*256 160*160 (W*H) 256*128 (W*H)
Model Pixel (dot) 32*32 32*32 16*16 16*8mm
PCB Board Type Separate Design
Driving Mode Constant current
Scaning 1/4 1/4 1/4 Static
HUB Board HUB75 HUB08/HUB75 HUB75 HUB75
Cabinet Standard Cabinet Size
(mm)
960*960*160 1024*768*150 1280*960*150 1024*1024*150
Cabinet Pixel 160*160 128*96 128*96 64*64
Cabinet Module Number 6*6 4*3 8*6 4*8
Power Supply
Specification
5V 40A/5V 60A/5V 100A
IP Grade IP65-67
Display Pixel Density (dot/m2) 27777 15625 10000 3906
 Brightness (cd/m2)  ≥6000 cd/m2 ≥6000 cd/m2  ≥5500 cd/m2   ≥7000 cd/m2
Max Consumption 700 700 700 700
Average Consumption 300 300 300 300
Best Viewing Distance
(m)
6-150 8-150 10-150 16-150
The Horizontal and
Vertical Perspective
140/140 (SMD LEDs)  120/70(DIP346 LEDs)
System
Specification
Drive IC Model MBI5124
Control Mode Synchronization or Asynchronization
Max Refresh Rate >1500
Max Gray Level 8192 (13bit) - 65536 (16bit)
Repetition Frequency
(HZ/s)
60
Brightness Adjustment 256 Grade
Signal Input
(with video processor)
HDMI, DVI, VGA, RF, S-Video, RGB, RGBH, YUV, YC&Conposition, etc
Communication Way Net cable/SMF(signle mode fiber)/MMF(multi mode fiber)
Communication
Distance (m)
100/500/1000
Operation
Parameter
Working Voltage AC110V/220V±10% 50HZ
Working Temperature -20~+80
MTBF (MON) 38 Months
Life Span Time (Y) 10 Years High lightness waterproof full color P10 outdoor advertising led display screen

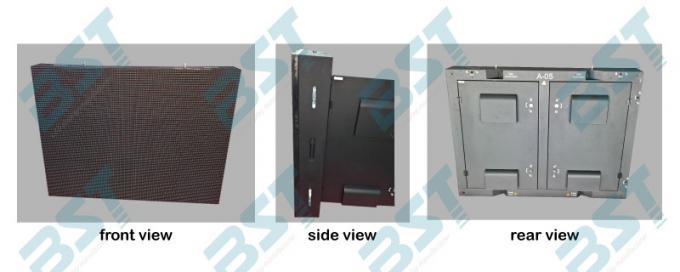

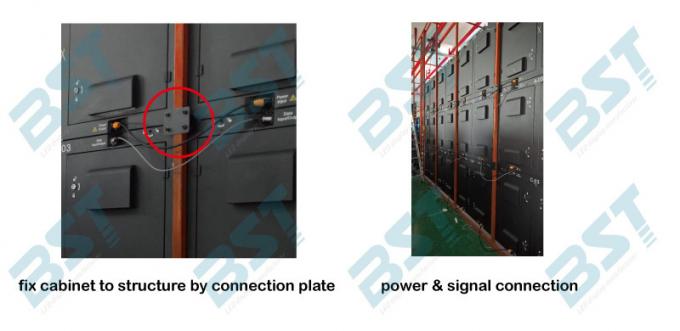

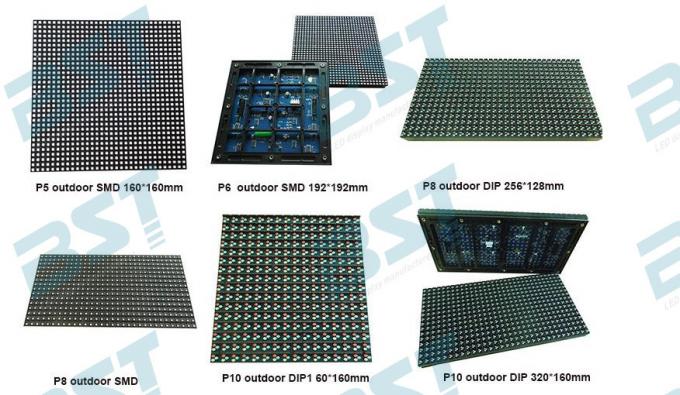

Outdoor Advertising LED Display

Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan 0

Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan 1

Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan 2

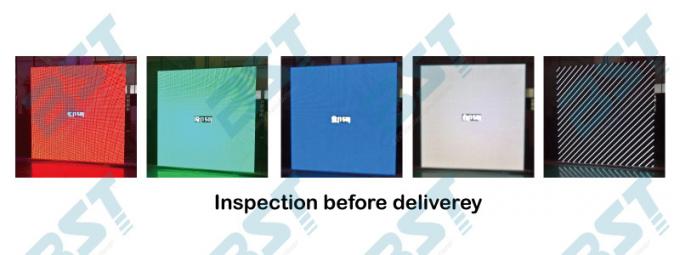

Aging Test

Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan 3

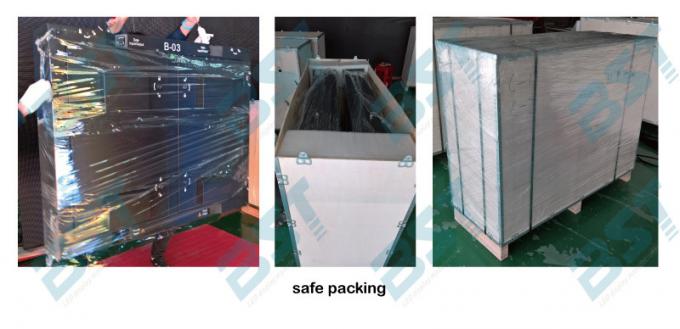

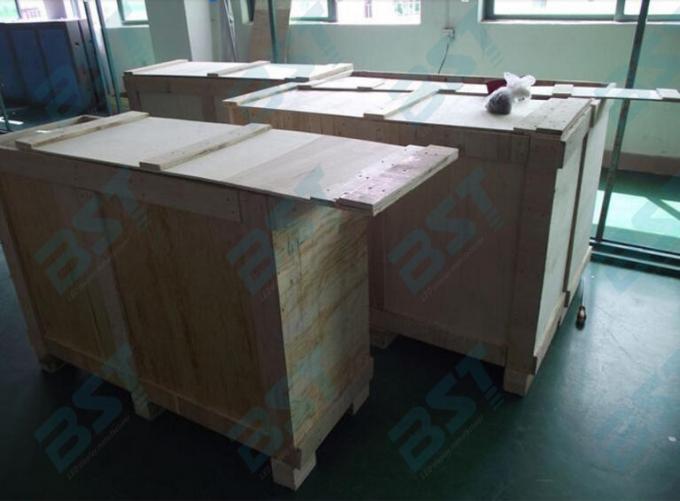

Packing



     Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan 4



Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan 5

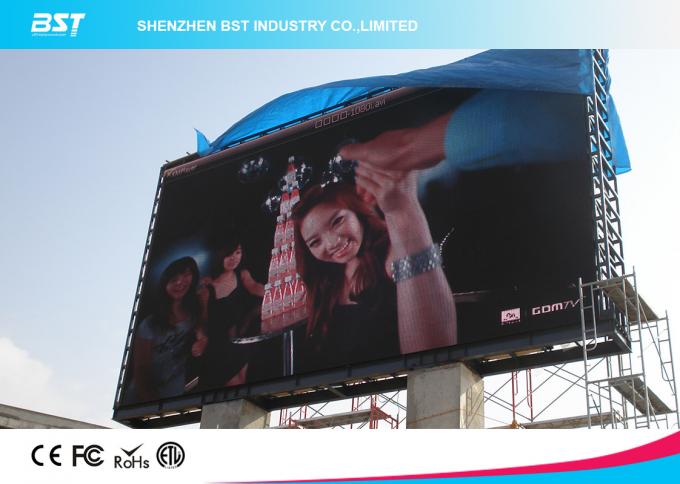

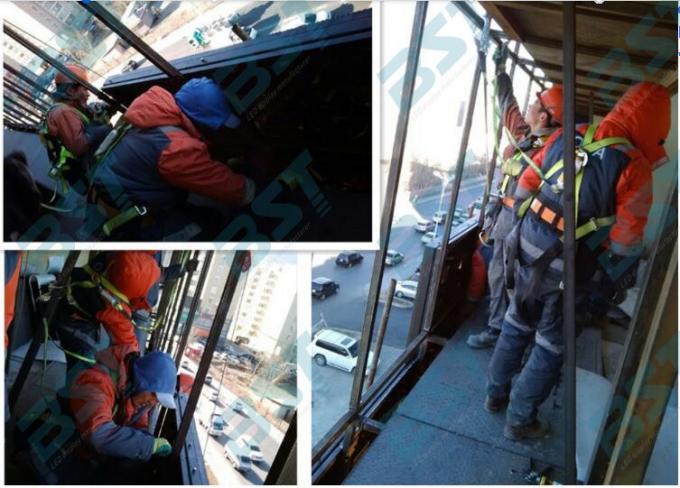

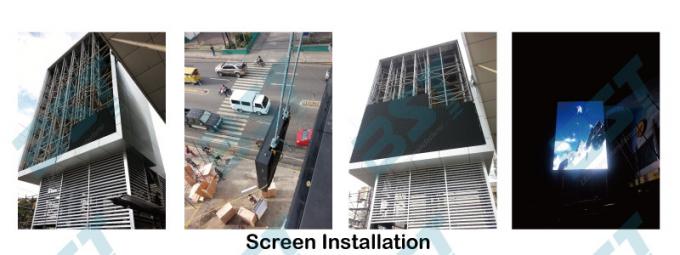

Installation



Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan 6

Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan 7



Commercial Advertising P10 Outdoor Full Color Led Display Screen ,1/4 Scan 8

Our Service

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

7.The unit price depends on the quantity, we can offer you at a competitive price.

8.Your inquiry related to our products or prices will be replied in 24hrs.

9. Well-trained and experienced staffs to answer all your enquires in fluent English.

10. Distributorship are offered for your unique design and some our current models.

11.Protection of your sales area, ideas of design and all your private information.







Factory Equipment



Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.





Important Knowledge of Led display


1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.


2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.


3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.


4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.


5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.

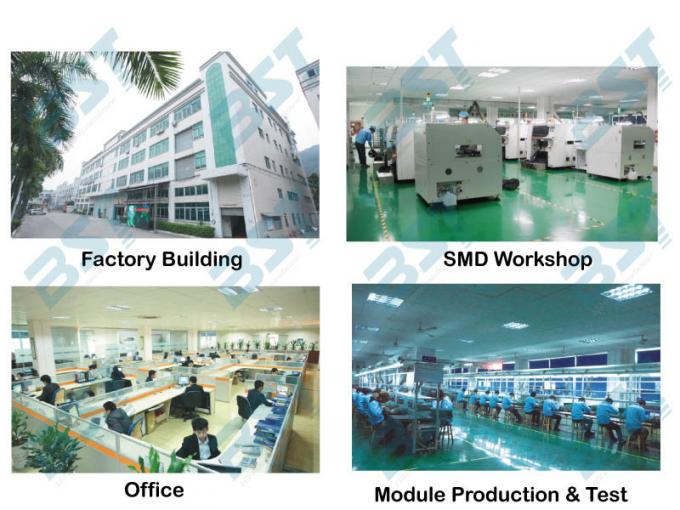

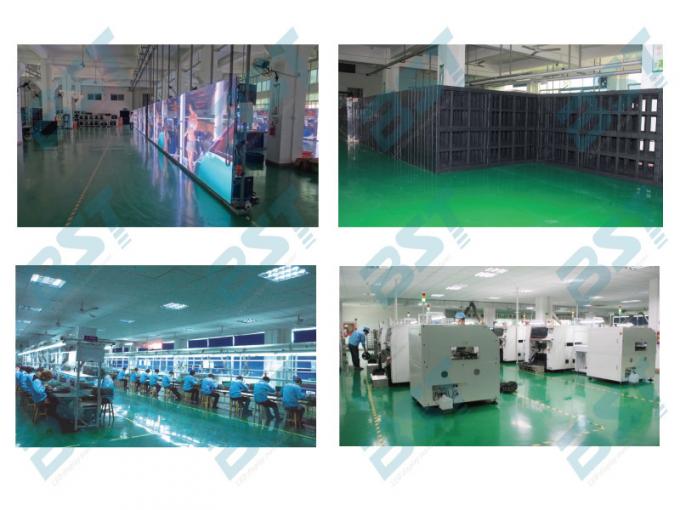

Workshop
