Product Details:
Payment & Shipping Terms:
|
| Function:: | Graphics, Animation, Video,image Etc. | Waterproof:: | IP43 |
|---|---|---|---|
| LED Type:: | SMD2121 | Power Supply:: | 110/220V |
| Life Span:: | 100000 Hours | Cabinet Material:: | Steel Or Aluminum For Options |
| High Light: | curved led panels,hd led screen |
||
SMD2121 P4mm Indoor Full Color Advertising curved video LED screen For Shopping Malls
Products Description:
1. Good performance-price ratio
2. Strict predelivery test
3, Strong quality control and R&D ability
4, User-friendly control
5, Anti-corrosion, oxidation resistance
6, Highly wavelength consistency of LED lamp
7. Percision design of module frame parts controls the deviation of beighbouring modules within 0.1mm
8. According to environmental changes the brightness can be adjusted automatically for energy saving.

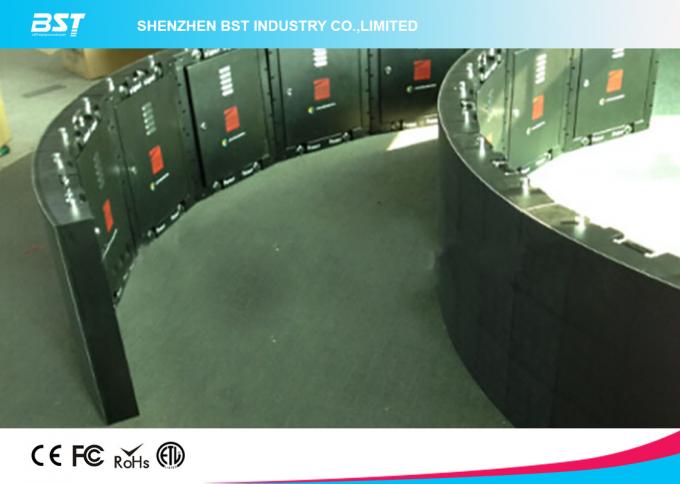

9. 15 degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
10.Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.
11.Curve degrees can be adjusted accordingly to different requests of architectural design
12.Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining;
Specifications:
1. Indoor LED Display Technical Parameter
|
Item |
Module Technical parameters |
|
pixel pitch |
4mm |
|
driving mode |
1/8 or 1/16duty constant current |
|
pixelc omposing |
1R1G1B |
|
voltage control |
AC220V/110±10%,50HZ |
|
control |
Asynchronism or Synchronism |
|
Resolution of cabinet |
128*128=16384pixel |
|
Led parameter |
R:620-630mm;G:520-525mm;B:465-470mm |
|
brightness of white balance |
>1200Nits |
|
viewing angle |
H:140°/V:140° |
|
display mode |
highest 1920*1080 |
|
size of cabinet |
1024mm*768mm |
|
best viewing distance |
>4m |
|
Led type |
SMD2121 |
|
Max.consumption |
600W / sqm |
|
lifespan |
100000H |
|
module size |
32*32 |
|
Modules QTY of a cabinet |
48pcs |
|
Resolution of module |
32*32=1024 Pixel |
|
pixel density |
62500dots/m2 |
For Iron cabinet of indoor and outdoor LED display screens, we use wooden case to pack,
For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF
Application

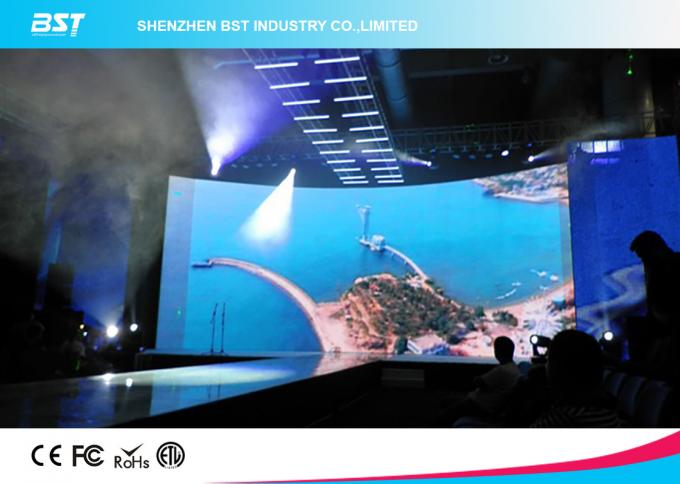

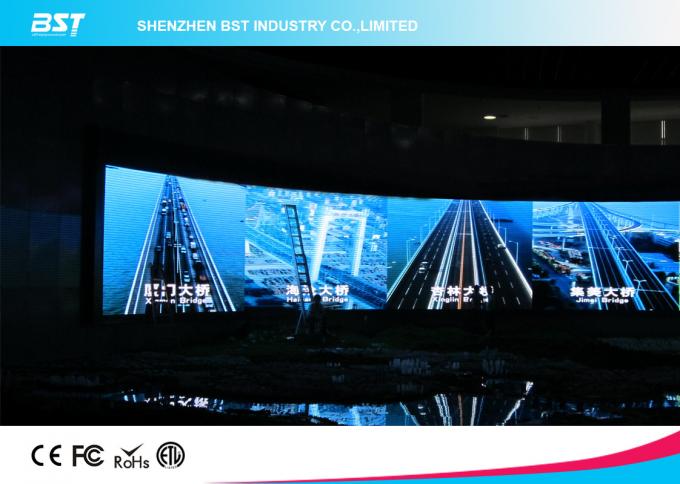

Shopping mall LED display for logo showing , airport , Mobile led display for mobile media train & bus station , telecommunication LED screen system for information showing and instruction , Stage performances ,advertising LED display,bank & stock exchange outdoor LED display screen for rates showing ,and so on .
1. We can provide customers a comprehensive solution delivery of series-related products
2. We can provide customers high quality products which allow they to scream
3. We can provide custom-made service.
4. We can provide customers one year free warranty, and support renewals extended
5. We can provide customers the free installation guidance and technical support
6. We willing to provide any countries and regions in the world with products and technical support. at present, our product has covered more than 100 countries and regions.
