IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness

China IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness supplier
IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness supplier IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness supplier IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness supplier IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness supplier IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness supplier

Large Image :  IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness

Product Details:

Place of Origin: Shenzhen, China
Brand Name: BST
Certification: CE, RoHS, CCC, IP65
Model Number: BST-OA-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc / 1 sqm.
Price: Negotiation
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 10-20 days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sq.meter / Month
Contact Now
Detailed Product Description
Product Name: LED Digital Billboard Pixel Pitch: 6mm
LED Type: SMD2727/3535 Density: 27777dots/sqm
Cabinet Size: 960mm X 960mm Package: Wooden Case
Color: Full Color Brightness: >5500nits/sqm

IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness





Outdoor full color led digital signage display Main features:

1). Wide application field : Outdoor Commercial advertising LED display screen, LED display board for shopping mall,Stadium perimeter LED display ,bank&stock exchange LED display screen for rates showing,train & bus station LED display screen .

2). High brightness:7000cd/m2 Automatic or manual adjustment of the brightness of the display.

3).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.

4). Clear vivid image quality: Throughout the show, the picture clear, bright color.

5).Installation is simple,easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily.

6).The list of available Models of our outdoor full color led display board : Outdoor led display screen:P5,P6,P8,P10,P12,P16,P20,P25.

7).Good heat dissipation;

8).Energy-saving to reduce cost;Environment friendly;

9).Cabinets Seamless splice;

10).Comprehensive Application

It can be used in different situations for mulit purposes such as lease market, advertisement, stadium,

shopmall etc.

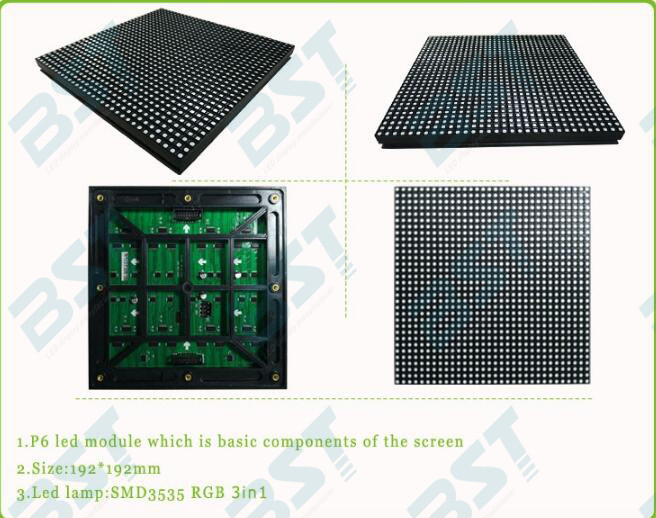

P6mm outdoor advertising LED display

IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness



IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness



IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness

IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness

Specification:

Description Technical parameter
Unit module Module size 192*192mm
Pixel pitch 6mm
Pixel density 27777dots/m2
Pixel configuration 1R1G1B
Led specification SMD2727/3535
Pixel resolution W:32dots*H:32dots

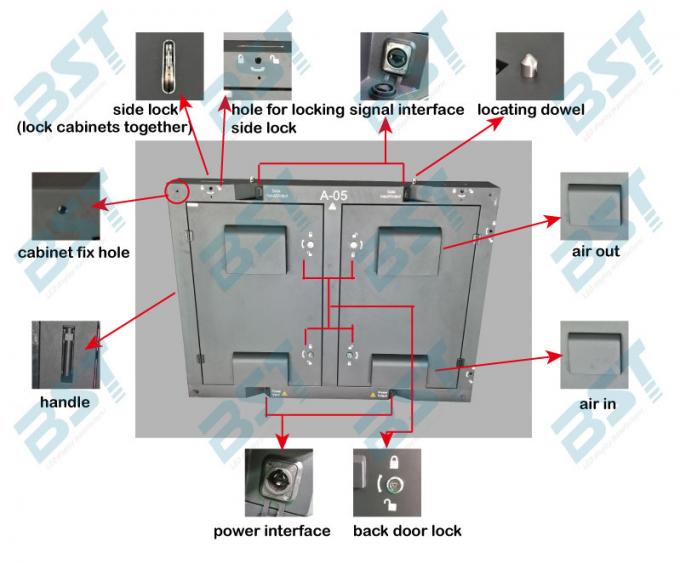

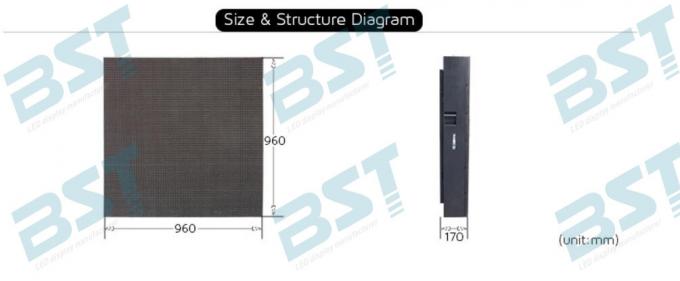

Cabinet Dimension 960mm*960mm*165mm
Quantities of module 25pcs
Power supply 3pcs
Thermal discharge Fan*4pcs
Total weight 50kg
Best viewing distance 6-100m
Temperature Storage: -35°C~+85°C
Working: -35°C~+85°C
Thickness 16cm can adjustable
Remarks: cabinet size can changed, upon project need.
Power Working voltage AC220V/110V±10%
Average power consumption 300W
Max. Power consumption ≤700W/sqm
Current ≤20mA(single LED)
Control system CPU Pentium4 or above
Operating system WIN98/2000/NT/XP/WIN7
Control method Synchronization
Main technical parameter Driving device 1/4scanning
Drive type Constant Current driver IC
Refresh frequency ≥1500Hz
Grey scale/colors 256 levels of each color(R/G/B)/16.7M color
Brightness of white balance More than 6500cd/sqm
Brightness adjustment 256 levels of each color(R/G/B)by software
Operating ambient humidity 10%--95%
Video signal PAL/NTSC
Control system DVI display card+full color controller card
MTBF ≥10,000hours
Life span ≥100,000hours
Flatness Tolerance of interpixel ≤0.3mm
Tolerance of modules clearance≤0.6mm
Power switch Automatic switch
Display mode 1024*768
Software LED media player



P3 led display for the best viewing distance between 3-10m
P4 led display for the best viewing distance between 4-15m
P5 led display for the best viewing distance between 5-20m
P6 led display for the best viewing distance between 6-25m
P8 led display for the best viewing distance between 8-30m
P10 led display for the best viewing distance between 10-33m
P12 led display for the best viewing distance between 12-40m
P16 led display for the best viewing distance between 15-45m
P20 led display for the best viewing distance between 18-60m
P25 led display for the best viewing distance between 20-70m
P31.25 led display for the best viewing distance between 25-100m

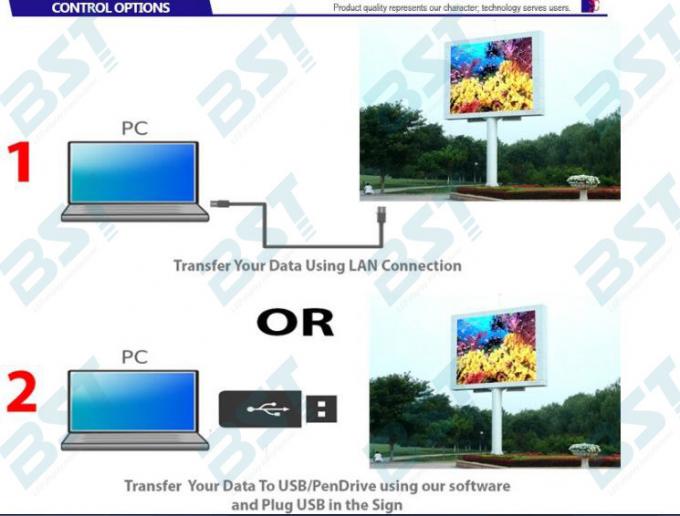

Controller Methods

IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness

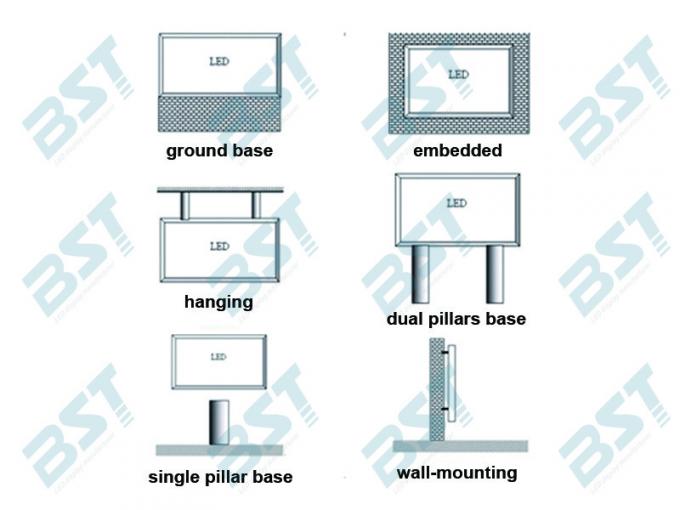

Installation Methods



IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness



IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation BrightnessIP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness

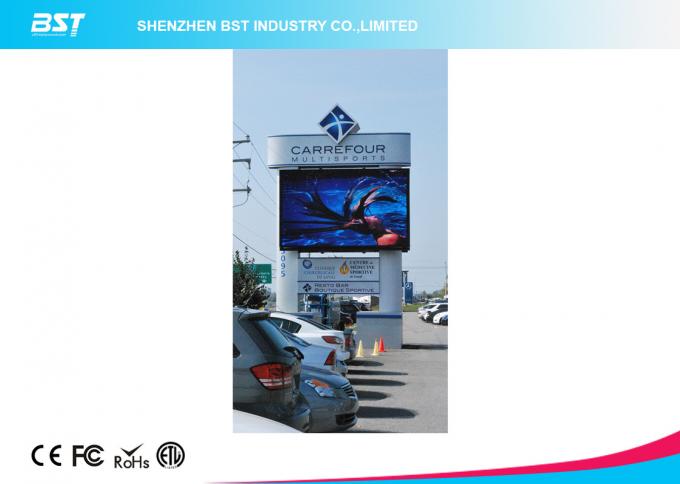

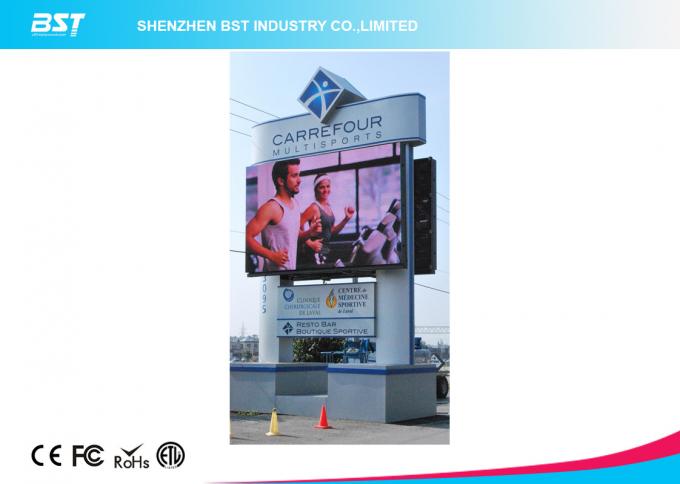

Application:



Applied to outdoor places such as station,port,airport,shopping mall,hotel,building,stadium etc,it use as video and information display.

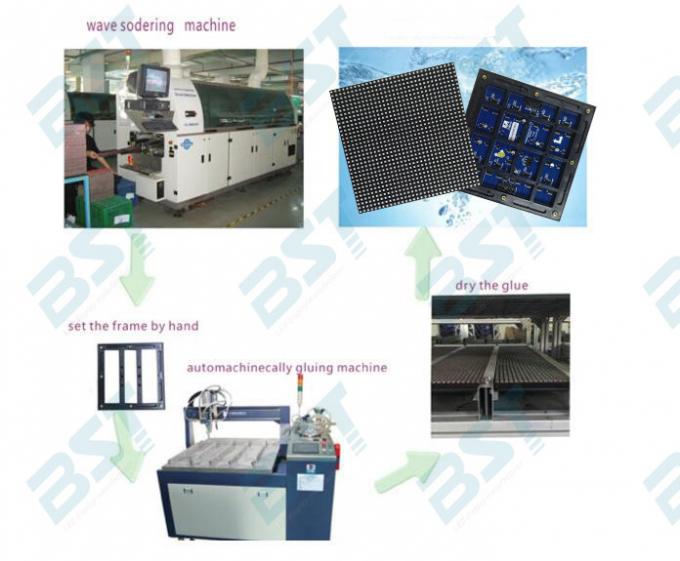

Factory Equipment



Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.



Our Services



1. We can provide customers a comprehensive solution delivery of series-related products

2. We can provide customers high quality products which allow they to scream

3. We can provide custom-made service.

4. We can provide customers two year free warranty, and support renewals extended

5. We can provide customers the free installation guidance and technical support

6. We willing to provide any countries and regions in the world with products and technical support. at present, our product has covered more than 100 countries and regions.



Why Choose us



1. Diversified products :
Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.

2. Experienced&Professional:
9 years manufacturing experience on LED displays, professional workmanship & design.

3. Best raw materials:
High quality,high brightness and long life span.

4. Competitive price:
100% factory price,competitive and reasonable price.

5. Strict quality control:
100% testing before packing , make sure our quality before delivery.

6. Quality gurantee:
Life span of LED display screens is more than 100,000 hours

7. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.

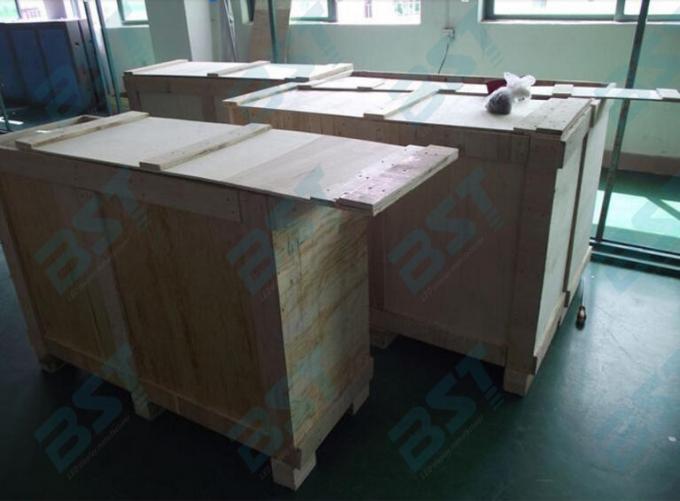

Packing and Shipment

IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness

IP65 Waterproof RGB P6 Outdoor Advertising Led Display Screen self Regulation Brightness
