Product Details:
Payment & Shipping Terms:
|
| Density: | 15625 Dots Per Sqm | LED Type: | SMD272 , SMD3535 |
|---|---|---|---|
| Module Size: | 256mmX256 Mm | Cabinet Size: | 1024mmX1024mm |
| Warranty: | 2 Year | OEM: | Yes |
| High Light: | flexible led screen,flexible led display screen |
||

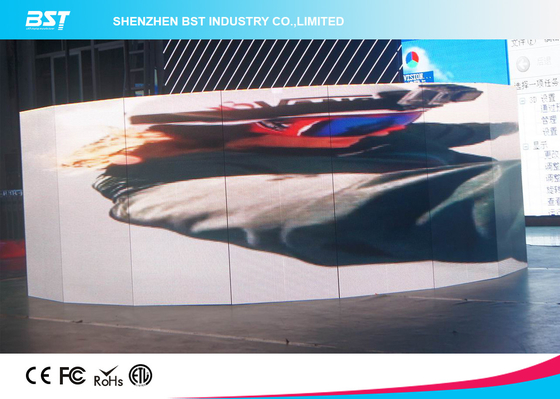

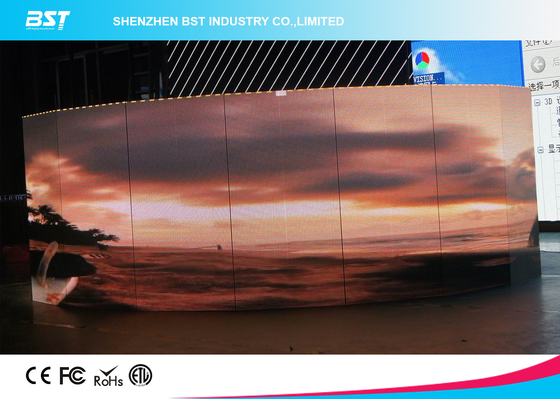

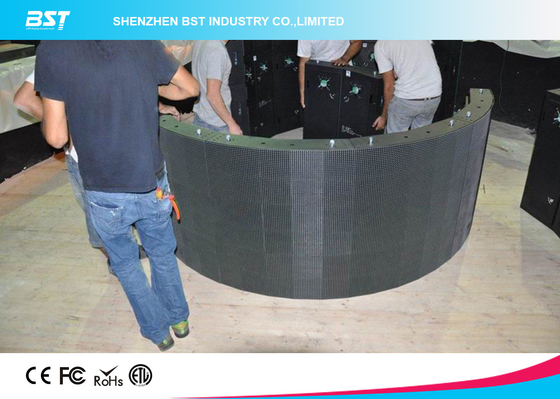

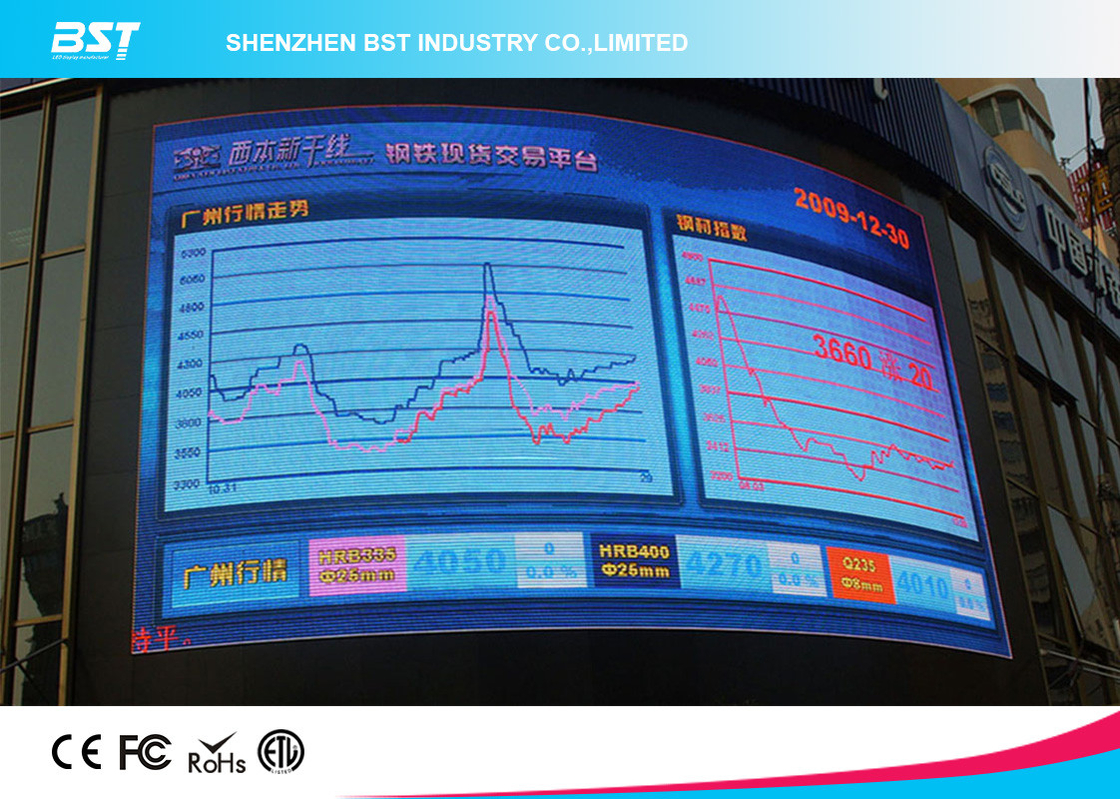

High Brightness P8 Flexible Led Display , Soft Led Curtain Screen
Quick Detail:
1. excellent quality,original epistar chip,MBI driving IC from taiwan
2. competitive price,best after-sales service
3. 2 years warranty,life span 10 years.
4. Resist of the high temperature and antioxidation and anti-statiic;
5. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
6. Perfect quality and stability, 24/7 running
Description:
1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;
2. Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line, you can see at every angle
at this range, no picture change, no color excursion;
3. High intensity and can be adjusted, so can meet the request of the customers according the application
environment;
4. To pictures and character, have clear, exquisite and real display effect;
5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Applications:
Our products have been widely used in venues as banks,Commercial advertising, animation, mobile media, shopping center,exhibitions, fashion shows, concerts,Video, graphics,sports, entertainment, events,advertising, stage backdrop, stadium, business establishments,TV shows, car shows, Stadium perimeter, etc
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
BST-FL-8-F |
|
Pixel Pitch |
8mm |
|
Module Size |
256mm*256mm |
|
Module Resolution (W*H) |
32 dots*32 dots |
|
Pixel Density |
15625 dots/ ㎡ |
|
LED Type |
SMD272, SMD3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
1024×1024×150mm |
|
Cabinet Resolution |
128dots×128dots |
|
Brightness |
≥6000cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
10m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000 W/m2 |
|
Average Power Consumption |
350 W/m2 |
|
Working Voltage |
AC 220V/110V s±10% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
>1500HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40℃~+85℃Working:-20~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000/Win 7/Win 8 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side) |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
