Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 4mm | LED Type: | SMD2121 |
|---|---|---|---|
| Module Dimensions (WXH)(mm): | 240X120 | Panel Dimensions(mm): | Customized |
| Warranty: | 2 Year | OEM: | Yes |
| Brightness: | >1500nits/sqm | Refresh Rate: | >1920Hz |
| Color: | Full Color | Driving Method: | 1/8 |
| Service: | Front And Rear | Package: | Wooden Case |
| High Light: | flexible led screen,flexible led video screen |
||

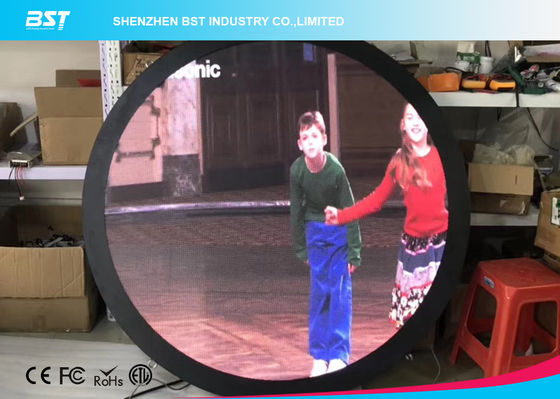

1500 Nits Round Flexible LED Display For Shopping Center / Concert Room
Flexible LED Display Quick Detail:
1), the pitch size you need or project information
2) ,the height and wide of led curtain or stage
3), Shipping address in detail.
Flexible LED Display Features
1) Foldable. Fold like cloth, can match any shape and size of your requirement. The LED Display widely used for preparation of various 2D and 3D shapes such as round,triangle, cylinder, and cone, etc
2) Light. The LED Display is smart and light. Saving space and the transportation cost.
Flexible LED Display Installation & Maintains
1) The LED Display is easy to Install and maintains. No tools. Just your hand.
2) Finishing installation and debugging of 5 square meters takes just 1 hour, labor cost saving a lot.;
Quality
High quality with the high refresh rate. All the refresh rate are more than 1500Hz
Flexible LED Display Application
Shopping center, concert room, exhibition, showroom, shop, train station, airplane station etc.
Flexible LED Display Description:
1. Warranty:
1), We guarantee all our displays, modules, parts for two full year.
We will provide maintenance for a lifetime and charge for the raw materials only
2), Free spare parts come with each order
3), 24 hours technical support
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on when you required.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight case, structure information for your reference for free.
Flexible LED Display Specifications:
| Flexible LED Display SPECIFICATION | |||
| FL-3 | FL-4 | FL-6 | |
| Physical Pitch | 3mm | 4mm | 6.66mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 111,111 pixels/sqm | 62,500 pixels/sqm | 22,500 pixels/sqm |
| Module Dimensions (WXH)(mm) |
240X120 | 240X120 | 320X160 |
| Panel Dimensions(mm) | Customized | Customized | Customized |
| Physical Resolution of Module(WXH) |
80X40 | 60X30 | 48X24 |
| Weight | 8.2kg/sqm | 8.2kg/sqm | 8.2kg/sqm |
| Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption |
10W | 10W | 10W |
| Max Power Consumption |
13W | 13W | 13W |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
| Brightess | ≥1,000nits | ≥1,500nits | ≥1,500nits |
| Driving Method | 1/40 | 1/8 | 1/8 |
| Horizontal Viewing Angle |
160° | 160° | 160° |
| Vertical Viewing Angle |
140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Servicing | Front | Front | Front |
| IP Rationg (Front/Rear) |
IP 40 | IP 40 | IP 40 |
| Operation Temp/ Humidity |
—20℃-60℃ /10%-60% | —20℃-60℃ /10%-60% | —20℃-60℃ /10%-60% |
| Storage Temp/ Humidity |
—30℃-60℃ /10%-60% | —30℃-60℃ /10%-60% | —30℃-60℃ /10%-60% |
| Certification | CCC,CE,ETL,ROHS | CCC,CE,ETL,ROHS | CCC,CE,ETL,ROHS |
