Product Details:
Payment & Shipping Terms:
|
Warranty: | 2years | Driving Method: | 1/16 Scan, Constant Current |
---|---|---|---|
Package: | Flight Case | Brightness: | 1200nits /sqm |
Contrast: | 4000:1 | Color: | Full Color |
Refresh Rate: | >1920hz | ||
Highlight: | LED Video Wall Screen,mobile led screens |

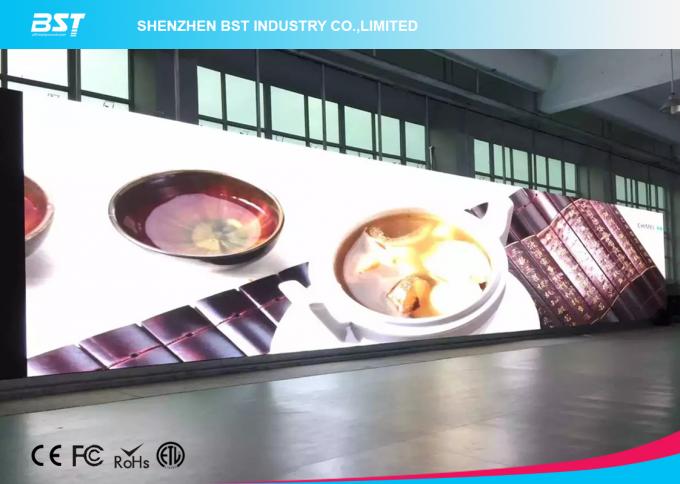

Stage SMD 3 in 1 advertising led screen panels / LED Video Display P3.91mm
Prodcuts Feature:
1.color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
2, adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
3, according to environmental changes the brightness can be adjusted automatically for energy saving
4, special PVC kits are adopted to protect from corrosion according to coastal weather
5, according to environmental changes the brightness can be adjusted automatically for energy saving
6, auto power on/off, work unattended
7. Available models: P3.91, P4.81, P6.25.
8. Long lifespan up to 100,000 hours
9. Die casting Aluminum alloy material, heat dissipation well.
Description:
1. Jointed correctly, being installed & dismounted by one person without tool.
2. Humanized operating interface with breakdown indicator lights, easy to maintain.
3.10 Seconds without tools installation: 10 seconds to install or dismantle by quick connect lock and quick plug, convenient play design, no tools needed;
4. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice
image.
5.3 Highs: high gray scale, high refresh, high contrast, with vivid display effect;
6.Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
Nice appearance and simple structures.
7. 4 Lows: low power consumption, low noise created, low transportation cost and low installation cost;
8.2 Wides: wide compatiblity and wide viewing angle. Models with different pixel pitches are compatible in one led display, horizontal view angle is 140 deg. and vertical 140 deg.;
9.Exellent precision: Die-cast aluminum cabinet, the gap between each two cabinets is less than 0.3mm, the flatness is less than 0.1mm;
10.
2 Aging tests: 48 hours for led module test and 72 hours for led screen test to ensure the perfect quality.
Work temperature -20~+40 deg.
Specification:
BST-IR 3.9 & 4.8mm Specification |
||
Items
|
Parameter |
|
Pixel Pitch |
PH3.91mm |
PH4.81mm |
Module Resolution(W*H) |
128(W)*128(H) |
104(W)*104(H) |
Pixel Configuration |
1R1G1B(in 3 n 1) |
|
LED Encapsulation |
Black SMD 2121 |
Black SMD 2121 |
Pixel Density |
65410/ Pixel m2 |
43222/ Pixel m2 |
Driving Method |
1/16 Scan |
1/16 Scan |
Refresh Frequency |
≥1920Hz |
≥1920Hz |
Driver IC |
Special constant current IC with high refresh rate & high grey scale |
|
Grey Scale |
14Bit(depending on the system and IC configuration) |
|
Cabinet Size |
500*1000mm |
|
White balance Brightness |
≥1200cd/ m2 |
≥1200cd/ m2 |
Color Temperature |
8000K±500 (adjustable) |
|
Viewing Angle |
Horizontal 140°Vetical 140° |
|
Optimal Viewing Distance |
>4m |
>5m |
Working Voltage |
AC 220V/110V ±10% |
|
Module voltage |
DC4.2V |
|
Max Power Consumption |
400W/PCS |
400W/PCS |
Avg.Power Consumption |
110W/PCS |
110W/PCS |
Lifetime |
50000hours |
|
Operating Temperature |
–10℃ ~ 65℃ |
|
Net weight |
14Kg/pcs |
14Kg/pcs |
Applications:
Three in One SMD Indoor Full Color Display has been specially designed for applications in public information systems, Advertising, Media and Entertainment. Airports, Border ports, Seaports Railway stations, subways, bus terminals, coach stations Schools, banks, stock exchanges Stage setting, television studio Hotel lobbies, casinos, disco, bar
1.Our Service
1)Your inquiry related to our products or price will be replied in 24hrs
2)OEM&ODM,any your customized lightings we can help you to design and put into product
3)Distributoership are offered for your unique design and some our current models
4)Protection of your sales area,ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
2.Trade Terms
1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2.Shipping freight are quoted under your requests
3.Shipping port:ShenZhen,Mainland China
4.MOQ:1pc
Q:What’s your payment term? |
A:The term’s of payment is 40% deposit,and balance T/T before shippment |
Q: What about the quality? |
A: We control the quality form the raw material, we only choose the qualified supplier to cooperate, and we have strictly inspection process, we know how to keep the brand value for both of us! |
Q: Do you offer FREE sample? |
A: We need to charge for the cost of the sample, however it can be refund if your place a lagre order.
|
Q: How many years of warranty can you offer? |
A: We normally offer 1-3 year of warranty, but you need longer warranty, the price should be a little higher. |
Q: What's the delivery time? |
A: For module as normally within 7 working days and for screen and led cabinet the delivery date is 15-25 working days. |
