Product Details:
Payment & Shipping Terms:
|
Warranty: | 2years | Driving Method: | 1/13 Scan, Constant Current |
---|---|---|---|
Package: | Wooden Case | Brightness: | 1200nits /sqm |
Contrast: | 4000:1 | Color: | Full Color |
Highlight: | LED Video Wall Screen,mobile led screens |

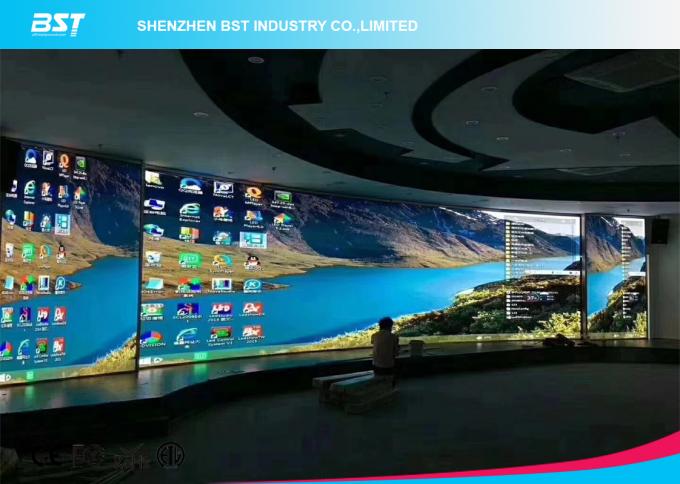

Epistar P4 Synchronous led display board High resolution 1200nits / sqm
Product Feature:
1.Neat and Hidden Wiring allow the display more tidy and beautiful.
2. Intelligent control system: This is high bright led video panel with pixel pitch 4mm match with auto control system. and support for switching freely between the two different system as your need. And it can transmit/ broadcast TV channel.
3.Perfect Display Effect High brightness and clearly display effect with easy use control system which allow you easily become enviable led display experts.
4. locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
5.Low light decay: constant-current driving, with annual light decay ≤20%, long life span
6.Fast installation, a cabinet could be uninstalled in one minute.
7.Auto power on/off, work unattended
8. adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
9.High flatness: using CNC cabinet,the cabinet flatness ≤0.1mm
10.special PVC kits are adopted to protect from corrosion according to coastal weather
11.Best uniformity and no mosaic
12.Available models: P3, P4,P5, P6.
Specification:
SPECIFICATION | ||||
IF-3 | IF-4 | IF-5 | IF-6 | |
Physical Pitch | 3mm | 4mm | 5mm | 6mm |
Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
Pixel Density | 111,110pixels/sqm | 62,500pixels/sqm | 40,000 pixels/sqm | 27,777pixels/sqm |
Module Dimensions (WXH)(mm) |
192X384 | 128X256 | 160X160 | 192X192 |
Panel Dimensions(mm) | 768X768 | 768X768 | 960X960 | 960X960 |
Physical Resolution of Module(WXH) |
64X128 | 32X64 | 32X32 | 32X32 |
Physical Resolution of Panel(WXH) |
256X256 | 192X192 | 192X192 | 160X160 |
Panel Material | Cold Steel | Cold Steel | Cold Steel | Cold Steel |
Weight(sqm) | 28kg | 28kg | 42kg | 42kg |
Processing | 16bit | 16bit | 16bit | 16bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Driving Method | 1/16scan | 1/16scan | 1/16scan | 1/16scan |
Average Power Consumption |
300W/sqm | 280W/sqm | 240W/sqm | 200W/sqm |
Refresh Rate | >1500Hz | >1500Hz | >1500Hz | >1500Hz |
Brightess | ≥1,200nits | ≥1,200nits | ≥1,200nits | ≥1,200nits |
Horizontal Viewing Angle |
160° | 160° | 160° | 160° |
Vertical Viewing Angle |
140° | 140° | 140° | 140° |
Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
IP Rationg (Front/Rear) |
IP 40/IP21 | IP 40/IP21 | IP 40/IP21 | IP 40/IP21 |
Operation Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
Storage Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
1. May I know the Minimum order for your products:
For the modules or cabinet, it is ok to order 1 pcs for sample.
2. What's the difference of DIP(1R1G1B) and SMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
2.1.SMD(One LED), reduced the LED on the screens, it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image.
2.2. Keeps the high brightness for outdoor advertising.
Because it adopted advanced technology of DIP and SMD, so it can keep the high brightness of the screen. Much high brightness than SMD Screens.
3. How long time I can get the cargos?
Our production time is about 12-20 working days;
When we confirmed the order, after we get your deposit, we can start production, we will update the production details in time; Before finish, we will notice you and after we get full payment, we can delivery the goods to you.
About the time from start port to destination, that depends on the distance and the state of the sea company or airport company.
4. May I know the package details?
For our product, generally we can provide you package by Plywood case or Flight case.
Generally speaking, for outdoor fixed, we use plywood case, 2 cabinets in one case; For rental market, we suggest you use flight case, generally 6 or 8 cabinets in one case.
For this P4 indoor full color LED display Screen for HD image and video commercial advertising, we suggest you use plywood case, it's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product, if this not you're looking for, you can also choose other items, we have P1.6,P1.9,P2.5,P3,P3.91, P4, P4.81, P5, P6,P6.25,P7.62, P8,P10 HD indoor led display, p4,P4.81, P5,P6,P6.25,P8,P10,P12,P16,P20,P25,P31.25 full color for outdoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 50mm. We also have different transparent led display, triangle led display, dj booth, led curtain, flexible led display, LED advertising player and kinds of video processor.
