Product Details:
Payment & Shipping Terms:
|
Warranty: | 2years | Driving Method: | 1/16 Scan, Constant Current |
---|---|---|---|
Package: | Wooden Case | Brightness: | 1200nits /sqm |
Contrast: | 4000:1 | Color: | Full Color |
Refresh Rate: | >1500hz | ||
Highlight: | indoor full color led display,LED Video Wall Screen |

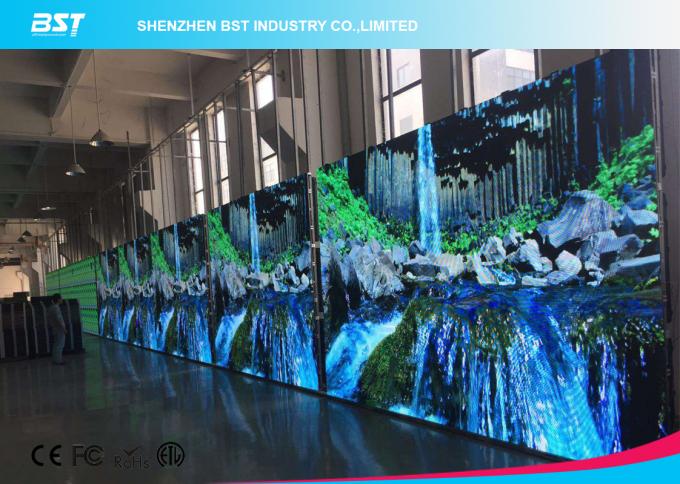

Super Slim P3 SMD Indoor Full Color Led Display Screens For Advertising
Description:
· Durable, reliable, precisely made Aluminum die-casting, fanless design Small expansion coefficient
BST robust electronics design
· Well-performing High contrast louver design with rain channel,Light tight design, no blocks on the image
BST processing with Radiant Calibration System
· Light-weight
8kg/sq.m. for panel with light-weight sub-frame structure design
· Slim
.Perfect rounding off for 3m radius convex curve
Applications:
various applications such as broadcasting studios, control rooms, command centers, monitoring centers, pavilions, conference rooms and etc.
Specification:
|
|||
Pixel Pitch (mm)
|
3 |
||
LED Type |
SMD |
||
Pixel Density (pixel/sq.m.) |
71111 |
||
Viewing Angle (H/V) |
160° / 160° |
||
Brightness(cd/sq.m.) |
1200 |
||
Refresh Rate(Hz) |
1920~4800 |
||
Optimized Viewing Distance (m) |
3~30 |
||
Average Power Consumption (W/sq.m.) |
272 |
||
|
680 |
||
Input Voltage
|
AC110V or AC220V±10% 50/60Hz |
||
Module Size in Pixel (W×H) |
96×96 |
||
Module Size in mm (W×H) |
288×288 |
||
Panel Size in Pixel (W×H) |
192×192 |
||
Panel Size in mm (W×H×D) |
576×576×80 |
||
Weight (kg/Panel.) |
8 |
||
IP Rating |
IP40 |
||
Maintenance |
Rear |
||
Operating Temperature |
-10℃ ~40℃ |
||
Operating Humidity |
10~80RH% |
