Product Details:
Payment & Shipping Terms:
|
Name: | Advertising LED Display Screen | Protection Level:: | IP65 |
---|---|---|---|
Working Voltage:: | AC 110V~220V±10% | Panel Dimensions(mm): | 1280X960X150 |
No. Of Modules Per Panel(WXH): | 4X3 | Physical Resolution Of Module(WXH): | 48X48 |
Color: | Full Color | Physical Resolution Of Panel(WXH): | 192X144 |
Highlight: | outdoor led display boards,outdoor full color led display |

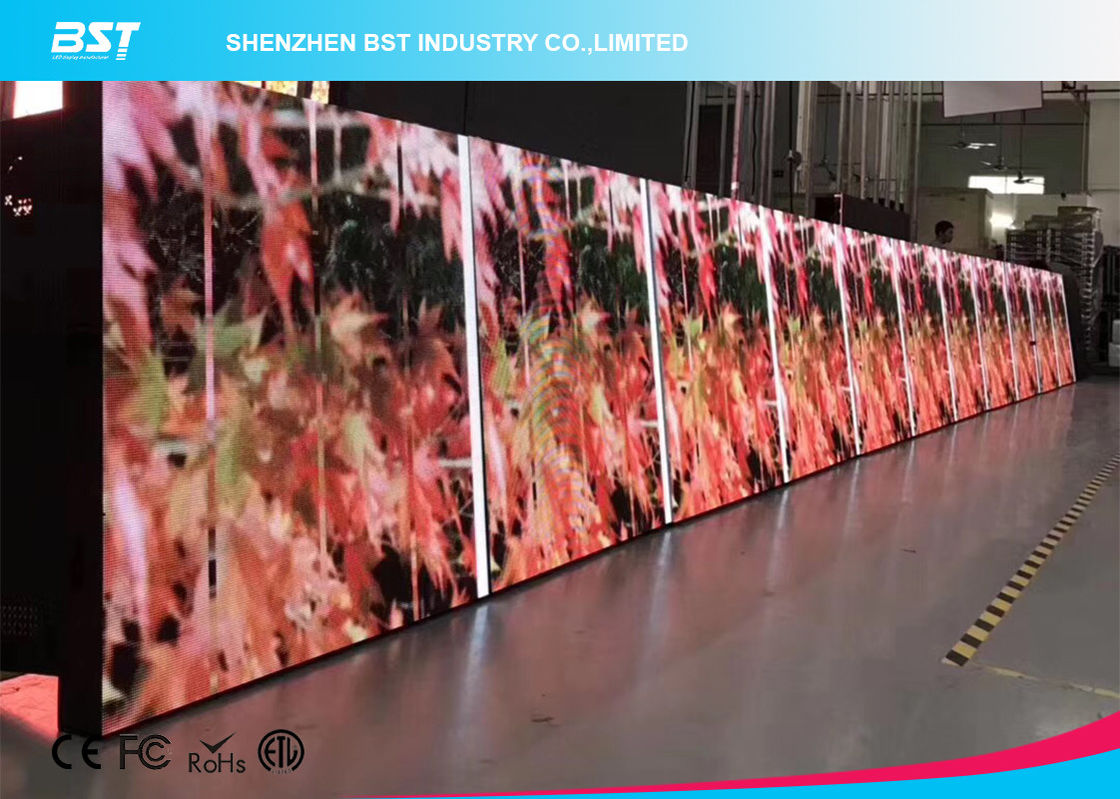

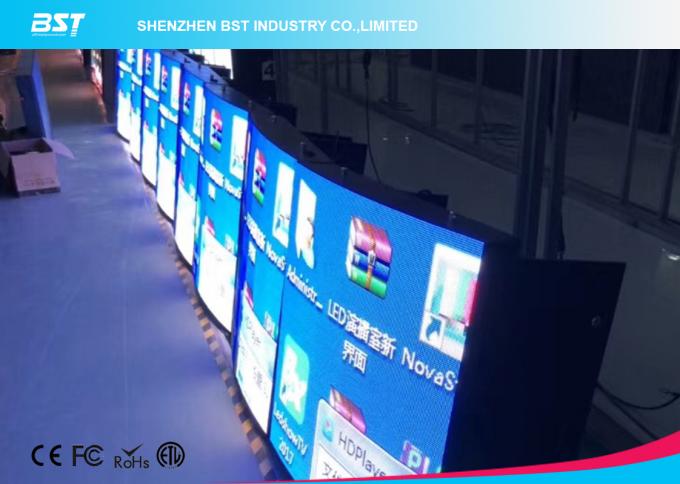

IP65 Fixed Advertising LED Display Screen / Waterproof Ads Led Signs
Advertising LED Display Screen Description
Advertising LED Display Screen adopts physical SMT technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Advertising LED Display Screen Parameters
SPECIFICATION | |||
OD-6 | OD-8 | OD-10 | |
Physical Pitch | 6.67mm | 8mm | 10mm |
Pixel Configuration | SMD2727 | SMD3535 | SMD3535 |
Pixel Density | 22,500 pixels/sqm | 15,625 pixels/sqm | 10,000pixels/sqm |
Module Dimensions (WXH)(mm) |
320X320 | 256X256 | 320X320 |
Panel Dimensions(mm) | 1280X960X150 | 1280X768X150 | 1280X960X150 |
No. of Modules Per Panel(WXH) |
4X3 | 5X3 | 4X3 |
Physical Resolution of Module(WXH) |
48X48 | 32X32 | 32X32 |
Physical Resolution of Panel(WXH) |
192X144 | 160X96 | 128X96 |
Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
Weight(sqm) | 65/45 | 65/45 | 65/45 |
Processing | 16bit | 16bit | 16bit |
Colours | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 2,000:1 | 2,000:1 | 2,000:1 |
Average Power Consumption |
360 W/panel | 360 W/panel | 360 W/panel |
Max Power Consumption |
900W/panel | 900W/panel | 900W/panel |
Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
Brightess | ≥6,500nits | ≥6,500nits | ≥6,500nits |
Horizontal Viewing Angle |
160° | 160° | 160° |
Vertical Viewing Angle |
140° | 140° | 140° |
Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
Servicing | Front/Rear | Front/Rear | Front/Rear |
IP Rationg (Front/Rear) |
IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
Operation Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
Storage Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90%v |
Advertising LED Display Screen Application:
Entertainment events,Commercial advertising,Stadium perimeter, such as banks,schools, telecommunications, mobile media, night club, business establishments, customs, stadiums, studio, stock exchange centers, bus station, shopping malls, railways, airports, harbors, etc;
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact with sales in details.
