| Name: | LED Stadium Display | Module Dimensions (WXH)(mm): | 320X320 |
|---|---|---|---|
| No. Of Modules Per Panel(WXH): | 4X3 | Panel Material: | Cold Steel |
| Weight Per Panel (kg): | 79 | Processing: | 16bit |
| Highlight: | led display sign,outdoor led panel |
||

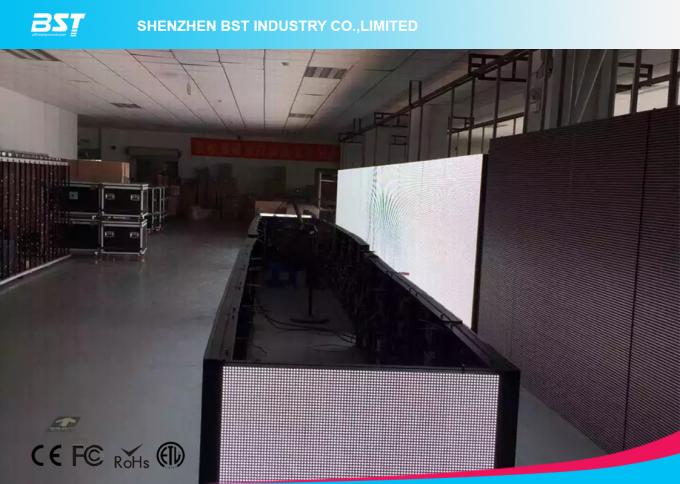

High Refresh Rate LED Stadium Display , High Contrast Ratio LED Video Wall Panels
LED Stadium Display Characteristics:
-- Easy to maintain and operation
-- 24 months warranty and long term free tech-support
-- High contrast ratio, high refresh rate
-- Excellent color and brightenss uniformity
-- Available models: P6, P8, P10, P16, P20mm
LED Stadium Display Application:
Stadium perimeter,business establishments,Commercial advertising, mobile media,, such as banks, bus station, telecommunications, customs, shopping malls,schools,stadiums, studio, airports, harbors,railways,stock exchange centers,etc;
LED Stadium Display Quick Detail:
-- Waterproof IP65
-- First-class Components, stable quality
-- Energy saving
-- Nature vivid image
-- Long lifespain> 100,000 hours
-- Light weight and easy to install
| SPECIFICATION | |||
| ODF-4 | ODF-6 | ODF-10 | |
| Physical Pitch | 4.81mm | 6.67mm | 10mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD3535 / DIP346 |
| Pixel Density | 43,264 pixels/sqm | 22,500 pixels/sqm | 10,000pixels/sqm |
| Module Dimensions (WXH)(mm) |
250X250 | 320X320 | 320X320 |
| Panel Dimensions(mm) | 1000X1000 | 1280X960 | 1280X960 |
| No. of Modules Per Panel(WXH) |
4X4 | 4X3 | 4X3 |
| Physical Resolution of Module(WXH) |
52X52 | 48X48 | 32X32 |
| Physical Resolution of Panel(WXH) |
208X208 | 192X144 | 128X96 |
| Panel Material | Cold Steel | Cold Steel | Cold Steel |
| Weight per panel (kg) |
65 | 79 | 79 |
| Processing | 16bit | 16bit | 16bit |
| Driving Method | 1/9 scan | 1/4 scan | 1/4scan or 1/2scan |
| Average Power Consumption |
250 W/panel | 360 W/panel | 360 W/panel |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
| Brightess | ≥5,500nits | ≥6,500nits | ≥6,500nits |
| Horizontal Viewing Angle |
140° | 160° | 160° /110° |
| Vertical Viewing Angle |
140° | 140° | 140° / 70° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rationg (Front/Rear) |
IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
| Working Temperature | —20℃-50℃/—40℃-60℃ | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
| Working Humidity | 10%-90%RH/10%-85%RH | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
