Product Details:
Payment & Shipping Terms:
|
| Name: | Indoor Full Color LED Screen | Panel Dimensions(mm): | 960X960 |
|---|---|---|---|
| Panel Material: | Cold Steel | Colours: | 281 Trillion |
| Driving Method: | 1/16scan | Refresh Rate: | >1500Hz |
| Brightess: | ≥1,200nits | ||
| High Light: | LED Video Wall Screen,mobile led screens |
||

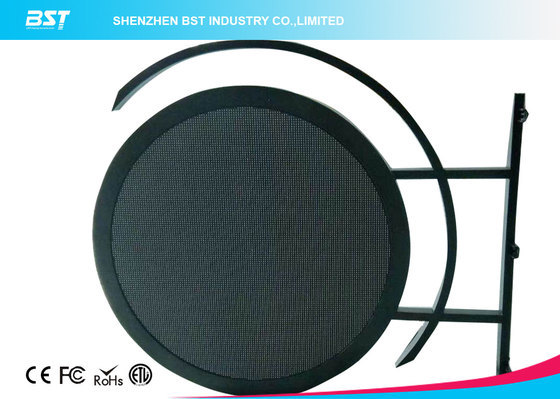

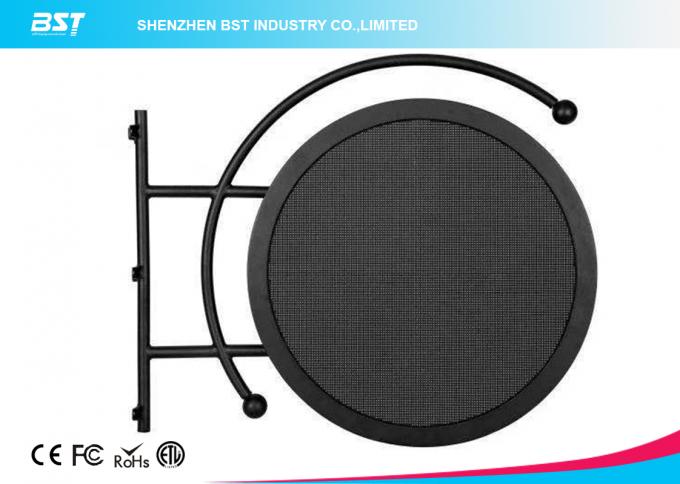

Energy Saving Indoor Full Color LED Screen High Debugging Brightness 1200nits /sqm
Indoor Full Color LED Screen Description:
1. Humanized operating interface with breakdown indicator lights, easy to maintain.
2. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice
image.
3.Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
Nice appearance and simple structures.
Indoor Full Color LED Screen Applications:
Three in One SMD Indoor Full Color Display has been specially designed for applications in public information systems, Advertising, Media and Entertainment.
Airports, Border ports, Seaports
Railway stations, subways, bus terminals, coach stations
Schools, banks, stock exchanges
Stage setting, television studio
Hotel lobbies, casinos, disco, bar
Indoor Full Color LED Screen Specification:
| SPECIFICATION | |||
| IF-4 | IF-5 | IF-6 | |
| Physical Pitch | 4mm | 5mm | 6mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 62,500pixels/sqm | 40,000 pixels/sqm | 27,777pixels/sqm |
| Module Dimensions (WXH)(mm) |
128X256 | 160X160 | 192X192 |
| Panel Dimensions(mm) | 768X768 | 960X960 | 960X960 |
| Physical Resolution of Module(WXH) |
32X64 | 32X32 | 32X32 |
| Physical Resolution of Panel(WXH) |
192X192 | 192X192 | 160X160 |
| Panel Material | Cold Steel | Cold Steel | Cold Steel |
| Weight(sqm) | 28kg | 42kg | 42kg |
| Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Driving Method | 1/16scan | 1/16scan | 1/16scan |
| Average Power Consumption |
280W/sqm | 240W/sqm | 200W/sqm |
| Refresh Rate | >1500Hz | >1500Hz | >1500Hz |
| Brightess | ≥1,200nits | ≥1,200nits | ≥1,200nits |
| Horizontal Viewing Angle |
160° | 160° | 160° |
| Vertical Viewing Angle |
140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rationg (Front/Rear) |
IP 40/IP21 | IP 40/IP21 | IP 40/IP21 |
| Operation Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
| Storage Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
BST indoor full color led display Special advantage:
