Product Details:
Payment & Shipping Terms:
|
| Name: | Outdoor LED Screen Rental | Physical Pitch: | 5.95mm |
|---|---|---|---|
| Pixel Configuration: | SMD2727 | Pixel Density: | 28,224 Pixels/sqm |
| Module Dimensions (WXH)(mm): | 256X256 | Panel Material: | Die-Casting Aluminum |
| Color: | Full Color | Delivery Time: | 20days |
| Highlight: | hire led screen,LED video wall rental |
||

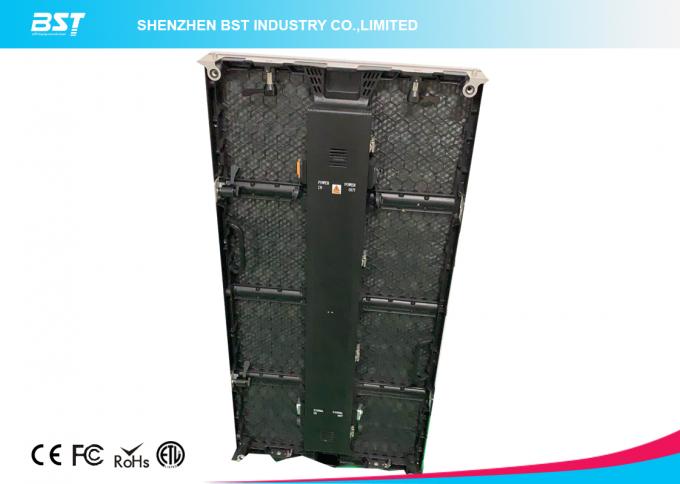

SMD2727 Outdoor LED Screen Rental , Large LED Screen Hire 6,000 Nits
Outdoor LED Screen Rental Features
1. produce and Whole Sales led moudles is our first business,produce and installing led display is our second business.
Good Screen is decided by good modules + good experience,Good module is decided by good led lamp + good pcb + good led IC + good experience.So, how to get the good material is depend on the experience ( professional )
2. this is as a custom die-cast aluminum case design, light, thin, quick installation of its most important features.
3. Cabinet light, quick installation, removal and transportation, suitable for large-scale fixed installation and rental application site.
4. Smart and Simple
No internal connection cables can deliver a much more stable performance.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
6. synchronous control processing system accepts DVI, VGA, HDMI, S- video, composite, YUV and other video input signal, free play video, graphics and other programs, in real time, synchronous, clear information dissemination play various information. Vivid colors, strong adaptability.
7. Time-saving:Each cabinet measures 500*500mm ensuring assembly and disassembly twice faster.
Outdoor LED Screen Rental Parameters
| SPECIFICATION | |||
| ORA-3 | ORA-5 | ORA-6 | |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 65,536 pixels/sqm | 28,224 pixels/sqm | 25,600pixels/sqm |
| Module Dimensions (WXH)(mm) |
250X250 | 256X256 | 320X320 |
| Panel Dimensions(mm) | 500X500X75 /500X1000X75 | 500X500X75 /500X1000X75 | 500X500X75 /500X1000X75 |
| No. of Modules Per Panel(WXH) |
2X2 / 4X4 | 2X2 / 4X4 | 2X2 / 4X4 |
| Physical Resolution of Module(WXH) |
64X64 | 42X42 | 40X40 |
| Physical Resolution of Panel(WXH) |
104X104/104X208 | 84X84 /84X168 | 80X80 /80X160 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Weight | 9/15kg/panel | 9/15kg/panel | 9/15kg/panel |
| Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000:1 | 2,000:1 | 2,000:1 |
| Average Power Consumption |
75/150 W/panel | 75/150 W/panel | 75/150 W/panel |
| Max Power Consumption |
225/550W/panel | 225/550W/panel | 225/550W/panel |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
| Brightess | ≥6,000nits | ≥6,000nits | ≥6,000nits |
| Horizontal Viewing Angle |
160° | 160° | 160° |
| Vertical Viewing Angle |
140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rationg (Front/Rear) |
IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
| Operation Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
| Storage Temp/ Humidity |
—20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% | —20℃-50℃ /10%-90% |
Commercial LED Display Screen Application:
Entertainment events,Commercial advertising,Stadium perimeter, such as banks,schools, telecommunications, mobile media, night club, business establishments, customs, stadiums, studio, stock exchange centers, bus station, shopping malls, railways, airports, harbors, etc;
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact with sales in details.
