Product Details:
Payment & Shipping Terms:
|
| Name: | Rental LED Display | Pixel Configuration: | SMD2121 |
|---|---|---|---|
| Pixel Density: | 43,264 Pixels/sqm | Module Dimensions (WXH)(mm): | 250X250 |
| No. Of Modules Per Panel(WXH): | 2X2/2X4 | Physical Resolution Of Module(WXH): | 52X52 |
| Application: | Stage Background | Physical Resolution Of Panel(WXH): | 104X104/ 104X208 |
| Highlight: | hire led screen,LED video wall rental |
||

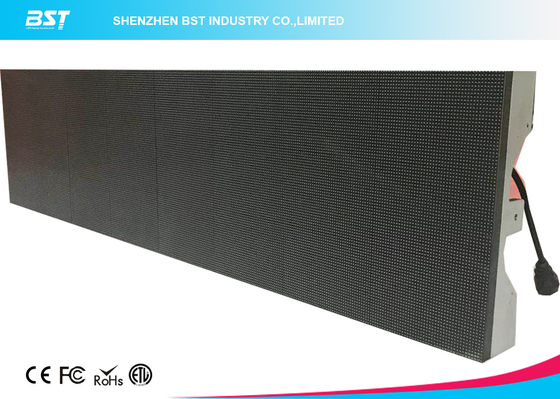

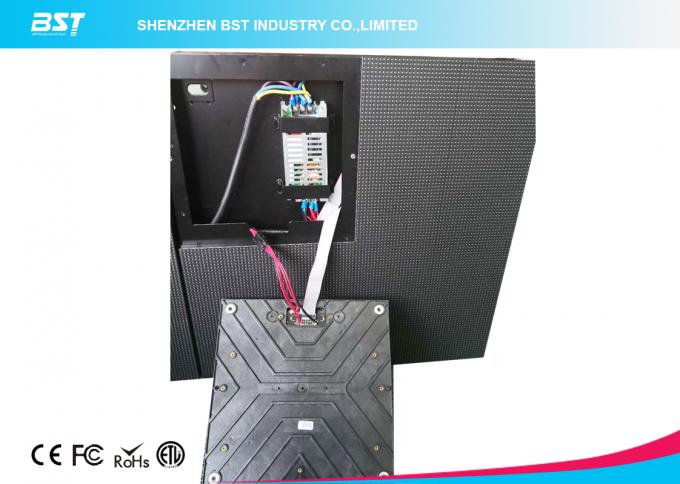

Close View Distance Rental LED Display For Stage Background 43,264 Pixels / Sqm
Rental LED Display Application:
Outdoor Signage and advertisement, Entertainment centers, Building facilities, Community centers, Amusement parks, Auto Parts and Maintenance shops etc.
Rental LED Display Feature
1.SMD2727 3 in 1 led encapsulation confirm wide view angle up to 140° for vertical and horizontal,and lower power consumption,energy saving.
2. Long life span over 50000Hours

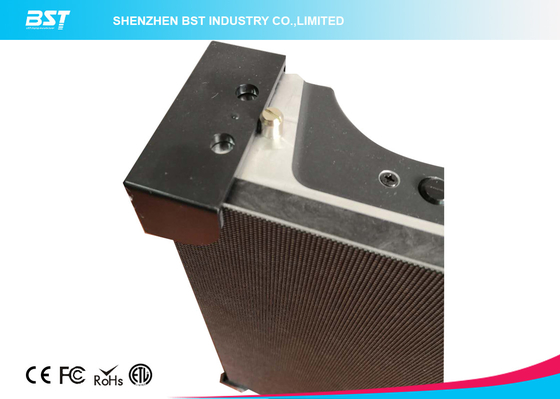

3. Die-casting Aluminum material cabinet with slim thickness of 75mm ensure light weight, only 13kgs per panel, can be picked up by one hand, easy to install and dismantle, better for rental use,
4. High brightness up to 6000nits, close view distance,good performance.

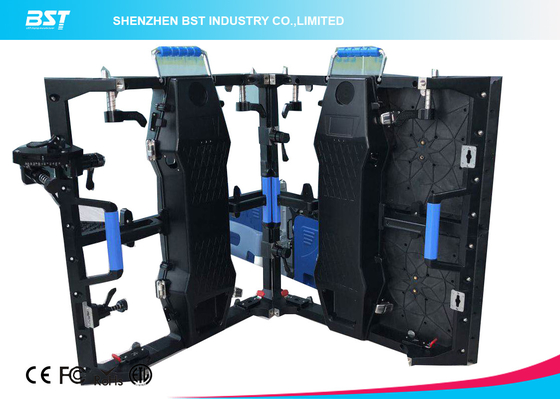

5. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar.
6. Widely used for stage, concert, show, banquet, wedding,stage background,public advertising etc.
7.Good heat emission capability.
Rental LED Display Parameters
| SPECIFICATION | |||
| IRA-2X | IRA-3 | IRA-4 | |
| Physical Pitch | 2.6mm | 3.91 | 4.81 |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/sqm | 65,536 pixels/sqm | 43,264 pixels/sqm |
| Module Dimensions (WXH)(mm) |
250X250 | 250X250 | 250X250 |
| Panel Dimensions(mm) | 500X500X75 / 500X1000X75 |
500X500X75 / 500X1000X75 |
500X500X75 / 500X1000X75 |
| No. of Modules Per Panel(WXH) |
2X2/2X4 | 2X2/2X4 | 2X2/2X4 |
| Physical Resolution of Module(WXH) |
96X96 | 64X64 | 52X52 |
| Physical Resolution of Panel(WXH) |
192X192/ 192X384 | 128X128/ 128X256 | 104X104/ 104X208 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight |
8/14kg/panel | 8/14kg/panel | 8/14kg/panel |
| Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption |
64/128 W/panel | 64/128 W/panel | 64/128 W/panel |
| Max Power Consumption |
192/384 W/panel | 192/384 W/panel | 192/384 W/panel |
| Operation Temp/ Humidity |
—10℃-60℃ /10%-60% | —10℃-60℃ /10%-60% | —10℃-60℃ /10%-60% |
| Storage Temp/ Humidity |
—30℃-60℃ /10%-60% | —30℃-60℃ /10%-60% | —30℃-60℃ /10%-60% |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
| Brightess | ≥1,200nits | ≥1,200nits | ≥1,200nits |
| Horizontal Viewing Angle |
160° | 160° | 160° |
| Vertical Viewing Angle |
140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rationg (Front/Rear) |
IP 40/IP21 | IP 40/IP21 | IP 40/IP21 |
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
Why choose BST
| 1. Our LED display signs have the ISO9001:2000 Quality System Certification; |
| 2. CE & RoHS Certification of our LED display signs; |
| 3. Excellent Technical Innovation; |
| 4. Contract Performance and Credibility; |
| 5. Price performance ratio; |
| 6. Modular LED display screens; |
| 7. LED displays with high brightness LED's; |
| 8. High ecperiences and know-how LED display products; |
| 9. Post sale assistance (after sale); |
| 10. Our LED display screens have a warranty up to 1-3 years (depending on configuration). |
