| Name: | Indoor Advertising LED Display | Cabinet Material:: | Iron/Aluminum |
|---|---|---|---|
| Working Humidity:: | 10~90% | Bezel: | Narrow Bezel |
| Lifetime:: | 100,000 Hours | Brightness: | >1000nits |
| Highlight: | advertising led display screen,led wall display screen |
||

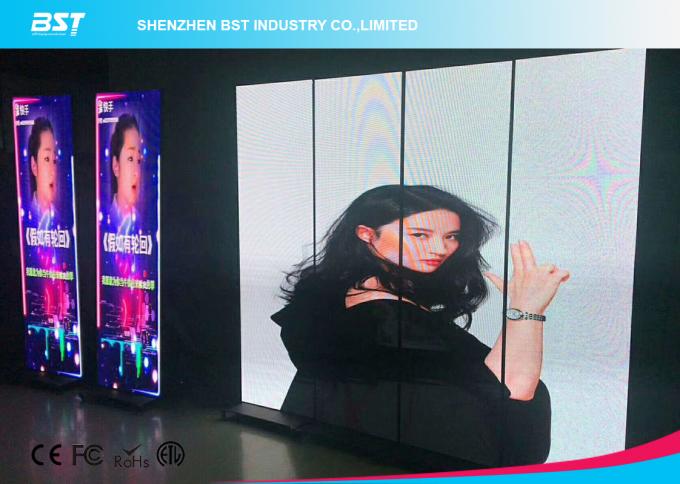

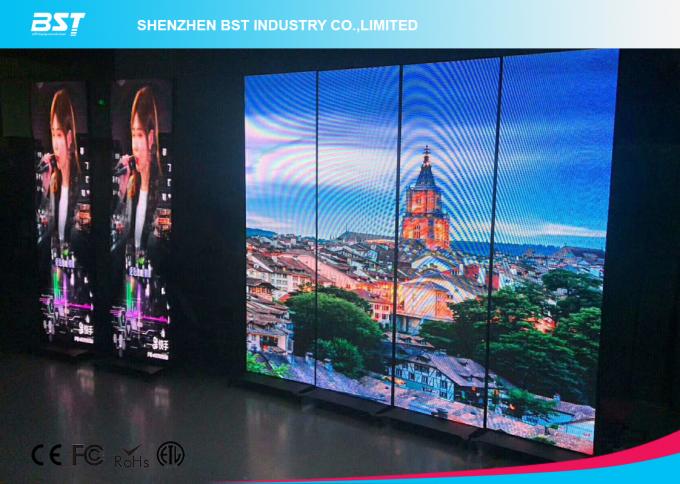

Narrow Bezel Indoor Advertising LED Display Aluminum Cabinet Material
Indoor Advertising LED DisplayFeature
Excellent visual effect, clear and exquisite, Good flatness, good viewing angle, vivid mixed colors, easy to assembly, install and transport with simple packing and convenient use, excellent heat-sinking, high stability ,no scrapped lamp .
Indoor Advertising LED Display Specification:
| P3 Full Color Indoor Module | ||
| Item | Unit | Parameter |
| Pixel Pitch | mm | 5 |
| Pixel Density | dots/sqm | 40000 |
| Resolution of Module | dots | 32×32 |
| Module Size | mm | 160×160 |
| HUB | 75A | |
| Led Package | SMD2121 Black LEDs | |
| Pixel Configuration | 1R1G1B | |
| Chip Brand of LEDs | Epistar | |
| Module Weight | kgs/pc | 0.3 |
| Brightness (White Balance) | nits(cd/sq.m) | 1200 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/16 Scan | |
| View Distance | M | 5~100 |
| Best View Distance | M | 5~30 |
| Viewing Angle-Horizontal | deg. | 140 |
| Viewing Angle-Vertical | deg. | 140 |
| Module Maximum Power | W | 12 |
| Max. Power Consumption | W/sq.m | 600 |
| Avg. Power Consumption | W/sq.m | 200 |
| Working Voltage | 40A 5V | |
| Power Supply | AC 110/220V | |
| Waterproof Grade | IP43 | |
| Refresh Rate | Hz/S | >1,500 |
| Frame Rate | Hz/S | ≥ 60 |
| Gray Scale | 4096 grades gray | |
| Display Color | 256*256*256 | |
| Display Function | Text,news,advertising,flash,animation | |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI | |
| Luminance Degradation | Less than 5% after 1000 hours Ageing test | |
| Defective Dot Rate | <0.0002 | |
| Life Span | hours | 100,000 |
| MTBF | hours | >10,000 |
| Storage Temperature | °C | 45 |
| Working Temperature | °C | 60 |
| Working Humidity | 10%-90%RH | |
| Control System | Synchronization or Asynchronization | |
| Warrenty | 2 Years | |
| Working Environment | Indoor | |
| Other Fertures | LED&ICs in Departed PCB | |
Our advantage
1. Rich experience: established in 2009; familiar with technical and material about LED display.
2. OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
3. Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
4. Good quality: stable performance .
5. Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
6. We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime, and we will inspect our products which have been sold periodically.
Hight quality with favorable price and professional severice, you can't miss it !!!!
Competitive Advantage:
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
