Product Details:
Payment & Shipping Terms:
|
Name: | Flexible Led Video Screen | Viewing Angle:: | H:140° V:140° |
---|---|---|---|
LED Encapsulation:: | SMD1010 | Input Voltage:: | AC220V/50Hz ±10% |
Brightness: | >800nits/sqm | Refresh Rate: | >1920hz |
Highlight: | curved led panels,hd led screen |

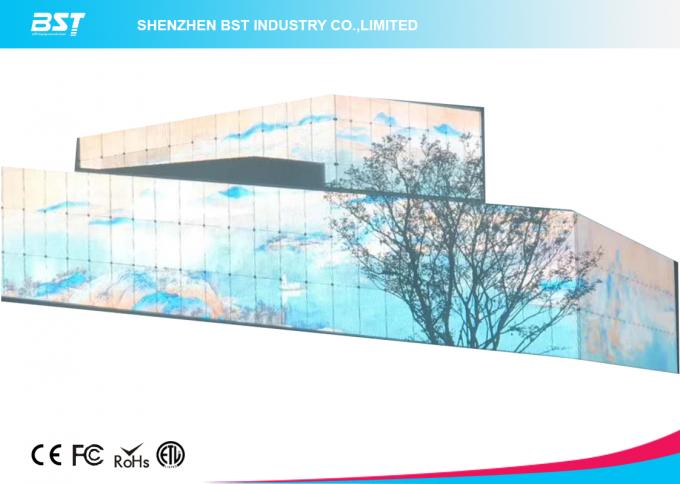

P10 Flexible Led Video Screen , Curved Projector Screen High Brightness
Flexible Led Video Screen Quick Detail:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Having larger viewing angle: Horizontal angle 140degree / elevation angle 140 degree. Getting vivid effect within any position of the viewing range.
4) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
Flexible Led Video Screen Description:
1) P1.923mm indoor SMD1010 led screen.
2) Support text, image, animation and video.
3) Control mode: synchronous.
4) High contrast, wide viewing angle & low energy consumption.
5) Long-term brightness capacity throughout product lifetime.
6) Temperature surveillance and humidity display can be extended.
7) General configuration: branded led lamp chip, branded driving IC.
8) Product performance: 100,000 hours efficient life-span & 10,000 hours MTBF.
Flexible Led Video Screen Specification:
Pixel Pitch | 1.923mm |
Module Resolution | 64x64 |
Pixel Configuration | SMD 1R1G1B |
Module Dimension | 124mm*124mm |
Input Voltage | 4.8-5.5V |
Brightness | 800cd/sqm |
Horizontal Viewing Angle | 140 Degree |
Vertical Viewing Angle | 140 Degree |
Unit Board Power | < 25W |
Driving Mode | 1/32 scan |
Gray Scale | 4096 Level |
Display Color | 16.7M |
Best Viewing Distance | > 2.0m |
Frame Rate | > 60 Hz/s |
Refresh Frequency | >960Hz |
Brightness Adjustment | 256 Level |
Working Temperature | -20ºC ~ +50ºC |
Humidity Range | 25%~95% |
Packaging
We use carton with foam sheet to pack led module.
Cabinet material is usually packed by wooden case.
Flight case is used for packing rental project cabinet.
We will choose the most practical package as to customers' requirements.
1) Carton with foam plate / EPE
2) Neutral packaging without logo
3) Anti-shaking wooden case package
4) Flight case package with convenient transport
5) Customizable package can be designed and made.
We recommend the suitable shipping and delivery method as to goods condition.
1) LCL/FCL by sea shipment
2) Air cargo shipment
3) Courier DDU delivery, DHL/FedEx/UPS/TNT
Our safe and reliable package can guarantee safe transportation and delivery you’re your goods.
How to choose Indoor LED Display?
1) Not only consider high resolution & high clarity.
It's better to have a comprehensive consideration on practical display need.
2) Several factors need considering, namely, LED screen size, installation place, viewing distance and cost.
3) Generally speaking, LED display with total resolution above 50,000 pixels enjoys good display effect.
4) Small size LED screen with big pixel pitch is not recommended. And big size LED screen with small pixel pitch is also good.
5) Take 8-square-meter LED screen as an example, P5 or P6 is recommended. For size above 50 square meters, P4, P5, P6 & P7.62 can be chosen.
If production cost is enough, P5 presents a wonderful display effect, not to say P4.
While choosing P6 is more economical and practical.
6) Bigger pixel pitch, bigger best viewing distance.
Professional LED Display System Solution Integrator
1) Brand: BST LED Display
2) Foundation year: 2009
3) Strength rank: top 3 among same-grade manufacturers in China
4) Workshop area: 10,000 square meters (Headquarter factory)
Mission: To be the BEST Quality, BEST Service, BEST Price.
Our Service
1) Respond within 24 hours
2) OEM & ODM available
3) Provide promotion activity
4) Top quality + reasonable price + patient after-sales service.
Our best service starts before order. Related product information will be provided to customers to help him make the decision. Information includes size, color, picture, certificate, packing way, shipping way, etc.
