Energy Saving P10 Stadium Perimeter Led Display Advertising Boards For Sport

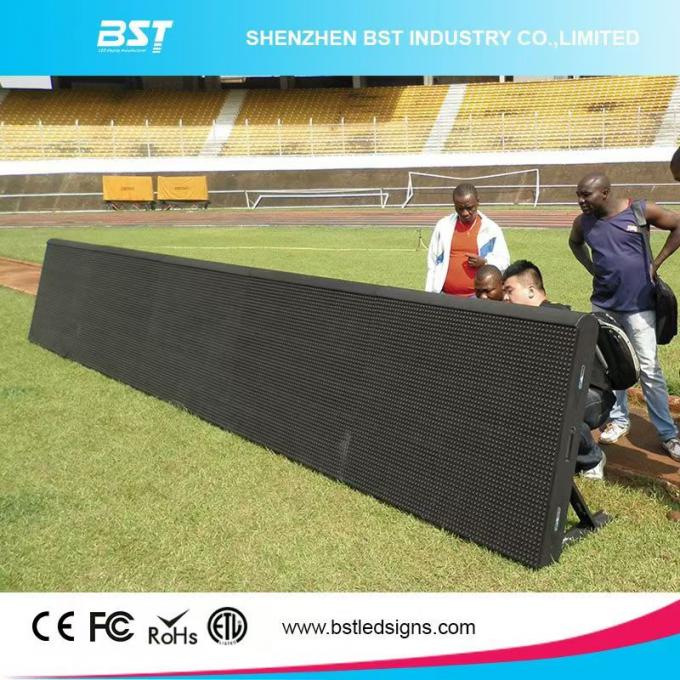

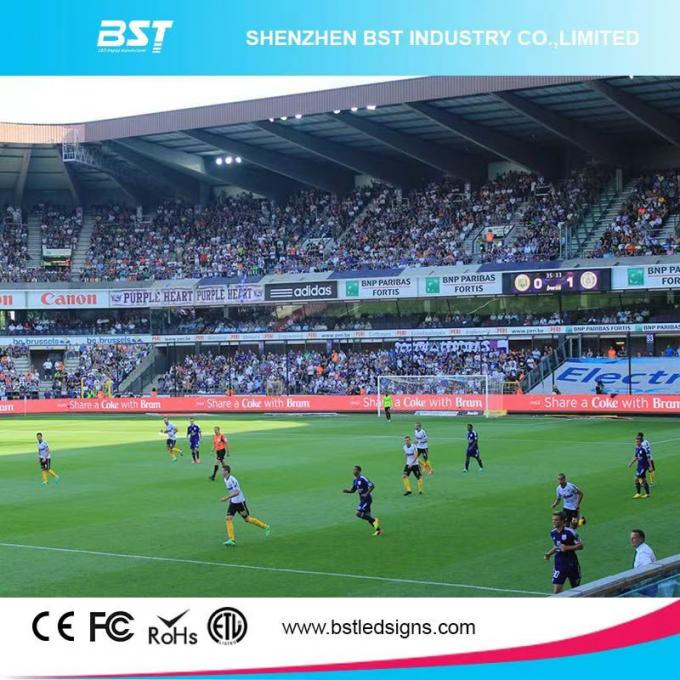

The P10 LED stadium display screen is specifically designed for outdoor sports venues and large event spaces. It offers exceptional brightness, robust protection, and high-definition display performance. With a pixel pitch of 10mm and a modular design, it delivers clear, detailed images and smooth video playback. This screen is widely used in football fields, basketball courts, athletic tracks, and other venues for score displays, advertising, and live information updates.
Product Features:
1. High-Definition Display with Wide Viewing Angle:
The P10 screen utilizes high-quality LED lamps for accurate color reproduction and uniform brightness. It supports HD resolution to ensure clear visuals under various lighting conditions. Its wide viewing angle design provides a consistent viewing experience from different perspectives in the stadium.
2. High Brightness, Visible in Direct Sunlight:
With a brightness of up to 6500cd/m², the screen remains highly visible even under direct sunlight, meeting the demands of sports events and outdoor advertising.
3. Superior Protection Performance:
The display is rated IP65 for water and dust resistance, making it suitable for harsh weather conditions such as heavy rain, extreme heat, and cold environments. This ensures long-term stable operation.
4. Energy-Efficient and Long Lifespan:
Featuring high-efficiency power supplies and low-energy LED lamps, the screen reduces power consumption while extending its lifespan. It can operate for over 100,000 hours under normal conditions.
5. Modular Design for Easy Maintenance:
The screen supports both front and rear maintenance. Its modular structure allows for quick replacement and repair, reducing maintenance time and costs.
6. Multiple Control Options:
The P10 display supports both synchronous and asynchronous control systems, allowing content to be managed via computer, mobile devices, or control consoles for flexible and convenient operation.
Applications:
• Sports stadiums (football fields, basketball courts, athletic tracks)
• Outdoor advertising billboards
• Live event broadcasting and scoreboards
• Public information displays in large venues
Technical Specifications:
• Pixel Pitch: 10mm
• Brightness: ≥6500cd/m²
• Viewing Angle: Horizontal 140°, Vertical 120°
• Protection Level: IP65 (front), IP54 (rear)
• Refresh Rate: ≥1920Hz
• Lifespan: ≥100,000 hours
• Operating Temperature: -20°C to +50°C
• Power Consumption: Max 800W/m², Average 300W/m²
The P10 LED stadium display screen is the ideal solution for delivering vibrant visuals and reliable performance in any outdoor sports or event setting.
Specifications:
1. Perimeter LED Display Technical Parameter
| Panel Material |
Aluminum |
| Pixel Pitch |
10mm |
| Unit Size |
960*960mm |
| IP Rating (Front/ Rear) |
IP65/ IP54 |
| Pixel / Unit |
32*32 |
| Unit Weight |
35kg |
| Viewing Angle(H/V) |
160°/140° |
| Application |
Storage-40~60° C, Working-20~50° C |
| Protection Level(Front/Rear) |
IP65/IP54 |
| Power Consumption( AVG.) |
274W |
| Driving |
Static drive |
| Data Refresh Rate |
>1920Hz |
| Processing |
16bit |
| Max Brightness |
>6500nits |
| Power Supply |
AC 110/220±10%, 50~60Hz |
| MTBF |
≥ 1000 Hours |
| Life Span |
≥ 50000 Hours |
| Pixel Failure |
< 0.0003 |
Application
Advertising LED display, Mobile led display for mobile media , shopping mall LED display for logo showing , bank & stock exchange outdoor LED display screen for rates showing , train & bus station , airport , telecommunication LED screen system for information showing and instruction , Stage performances and so on .
