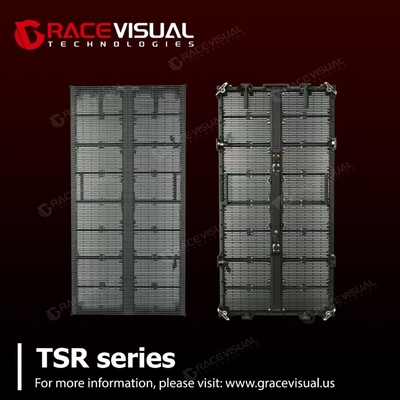

Future-Proof Advertising: TSR’s IP65 Transparent LED for 24/7 Outdoor Use certified CCC/CE for global compliance.

Large Image : Future-Proof Advertising: TSR’s IP65 Transparent LED for 24/7 Outdoor Use certified CCC/CE for global compliance.

Product Details:

Place of Origin:	China
Brand Name:	Grace Visual
Certification:	CCC,CE,ETL,RoHS
Model Number:	OA
Document:	TS-R.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	6
Packaging Details:	Wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	500000

Contact Now

Detailed Product Description

Physical Pitch:	3.9-7.8mm/0.15”-0.30”	Pixel Conguration:	SMD1921

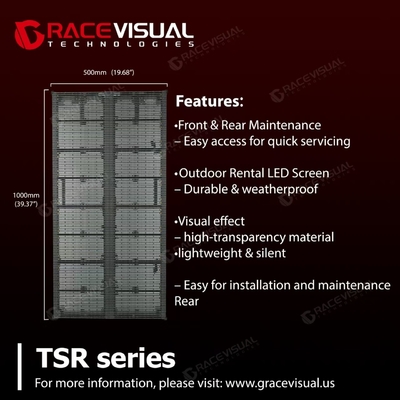

Module Dimension(WxHxD):	500x125mm/19.68”x4.92”	Panel Dimension(WxHxD):	500x1000mm/19.68”x39.37”
No. Of Module/panel(WxH):	1x8	Panel Material:	Aluminum Alloy
Panel Weight:	9KG Per Panel(19.85Ibs)	Gray Scale:	16bit
Contrast Ratio:	6000:1	Avg. Power Consumption:	180w/㎡
Max. Power Consumption:	560w/㎡	Operating Temp/Humidity:	-100C - 600C / 10% - 60%
Storage Temp/Humidity:	-300C - 600C / 10% - 60%	Refresh Rate:	7680hz
Brightness:	5000nits	Viewing Angle(H/V):	160/140
Expected Lifetime:	100,000hrs	Service:	Rear
IP Rating(Front/Rear):	IP65

I. Core Product Features

Exceptional Visual Performance
- 5,000 nits Ultra-High Brightness: Ensures clear visibility even in direct sunlight (e.g., outdoor ads, storefronts).
- 16-bit Grayscale: Delivers 65,536 color shades for smooth gradients and lifelike details.
- 7,680Hz Refresh Rate: Eliminates flicker and motion blur for flawless dynamic content.
Revolutionary Transparency
- 50% Light Transmittance: Preserves natural lighting and exterior views (ideal for glass facades, retail windows).
- Self-Cooling Technology: No external AC required – reduces energy costs and operates silently (e.g., museums, theaters).
Lightweight & Durable Design
- Ultra-Slim Profile: Only 75mm thick; 9kg (19.85 lbs) per panel – easy transport/installation.
- Corner Protectors: Prevents LED damage during handling and setup.
- Aircraft-Grade Aluminum Alloy: Corrosion-resistant with a 100,000-hour lifespan (~11 years of continuous use).
Robust Environmental Adaptability
- Wide Operating Range (-10℃ to 60℃) & IP65 Rating: Dustproof/waterproof for harsh outdoor/industrial environments.

II. Key Selling Points (Competitive Advantages)

✅ "Transparency + HD" Integration

Combines 32,768px/m² pixel density (SMD1921 tech) with high transparency – balances visibility and advertising impact, redefining traditional displays.

✅ Energy & Space Efficient

Avg. power: 180W/m² (Peak: 560W/m²); eliminates AC costs, cutting total energy consumption by 30%+.

✅ Fully Customizable

Panels (500×1000mm base unit) can be tailored to fit curved walls, irregular windows, and creative installations.

✅ Globally Certified

Complies with CCC, CE, ETL, RoHS standards – approved for EU, US, and Asian markets.

III. Target Applications
