TSR Series – Transparent Outdoor Rental LED DisplayP3.9–P7.8 | 7680Hz | 5000 Nits Brightness | Only 9kg per Panel

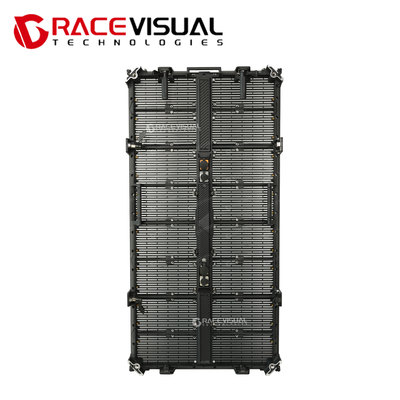

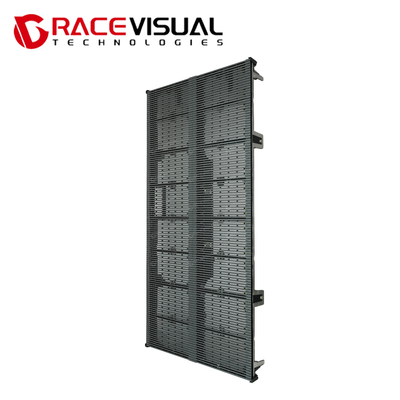

TSR Transparent LED Display
The Next Evolution in High-Performance See-Through Technology

1. Superior Visual Experience

• 5,000 Nits Brightness – Delivers exceptional visibility even in direct sunlight

• 65,536 Shades of Color (16-bit Grayscale) – Ultra-smooth gradients and photo-realistic visuals

• 7,680Hz Refresh Rate – Zero flicker for fast motion and perfect camera capture

2. Breakthrough Transparency

• 50% Light Transmittance – Maintains daylight and clear outside view, ideal for storefronts and facades

• Fanless Self-Cooling System – Cuts energy costs by over 30%, no air conditioning required

• Ultra-Slim & Lightweight – Only 75mm thick, 9kg (19.85 lbs) per panel for easy installation

3. Designed for Harsh Environments

• Operating Range: -10℃ to 60℃ – Stable performance in extreme cold or heat

• IP65 Weatherproof – Fully sealed against rain, dust, and moisture

• Aircraft-Grade Aluminum Frame – Lightweight, corrosion-resistant, and built to last 100,000 hours (11+ years)

4. Modular Smart Engineering

• Flexible 500×1000mm Panels – Supports curved, angled, and creative layouts

• Tool-Free Magnetic Connections – Quick setup and effortless maintenance

• Edge-Protected LEDs – Enhanced protection during shipping and handling

Why Choose TSR?

✅ High Definition + Transparency – 32,768 pixels/m² without blocking views
✅ Energy Efficient – Just 180W/m² average power consumption (560W/m² peak)
✅ Fully Certified – CCC | CE | ETL | RoHS compliant

Perfect for:
• Premium Retail Windows
• Outdoor Transparent Billboards
• Theaters & Museum Displays
• Architectural Glass Installations
