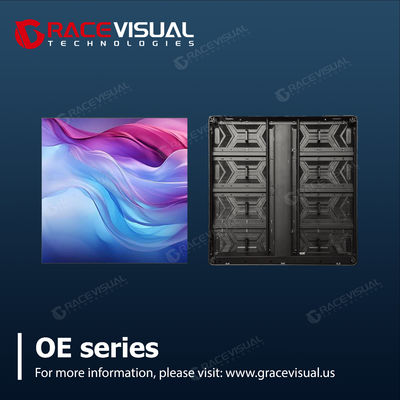

P3.9-P10.4 Outdoor LED Display 5000nits IP65 Die-Cast Aluminum

Large Image : P3.9-P10.4 Outdoor LED Display 5000nits IP65 Die-Cast Aluminum

Product Details:

Place of Origin:	China
Brand Name:	Grace Visual
Certification:	CCC, CE, ETL, RoHS
Model Number:	ORA
Document:	OE.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	6
Packaging Details:	Flight case
Delivery Time:	7-10 days
Payment Terms:	T/T
Supply Ability:	500000

Contact Now

Detailed Product Description

Module Dimension(WxH):	500x250mm/ 19.68"x9.84"	Panel Dimension(WxHxD):	1000x1000mm / 39.37"x39.37"
No. Of Module/panel(WxH):	2x4	Panel Material:	Die-casting Aluminum
Panel Weight:	23.5kg( 51.8lbs)	Gray Scale:	16bit
Contrast Ratio:	4000:1	Refresh Rate:	3840hz
Brightness:	>=5000nits	Viewing Angle(H/V):	140/120
Expected Lifetime:	100,000hrs	Max. Stacking/Hanging:	10
Service:	Front	IP Rating(Front/Rear):	IP65/IP54
Certification:	CCC,CE,ETL,RoHS
Highlight:	outdoor LED display 5000nits , IP65 waterproof LED display , die-cast aluminum LED screen

P3.9–P10.4 Outdoor LED Display

Creative folding design with 90° angle splicing capability and hidden cable wiring. Bright, lightweight, and durable solution ideal for exhibitions, retail spaces, architectural applications, and digital out-of-home (DOOH) media.

Product Specifications

Attribute	Value
Module Dimension (WxH)	500x250mm / 19.68"x9.84"
Panel Dimension (WxHxD)	1000x1000mm / 39.37"x39.37"
No. of Module/panel (WxH)	2x4
Panel Material	Die-casting Aluminum
Panel Weight	23.5kg (51.8lbs)
Gray Scale	16bit
Contrast Ratio	4000:1
Refresh Rate	3840hz
Brightness	≥5000nits
Viewing Angle (H/V)	140/120
Expected Lifetime	100,000hrs
Max. Stacking/Hanging	10
Service	Front
IP Rating (Front/Rear)	IP65/IP54
Certification	CCC, CE, ETL, RoHS

Key Features

Ultra-Lightweight Design: Each panel weighs only 23.5kg (51.8 lbs) for reduced structural load and easier installation.
Multiple Pixel Pitch Options: Available in 3.9mm, 4.8mm, 6.2mm, 7.8mm, and 10.4mm to meet various resolution needs.
Superior Visual Performance: 16-bit grayscale, 4000:1 contrast ratio, and ≥5000 nits brightness for outstanding outdoor visibility.
Tool-Free Module Design: Fast-lock system enables quick maintenance and replacement.

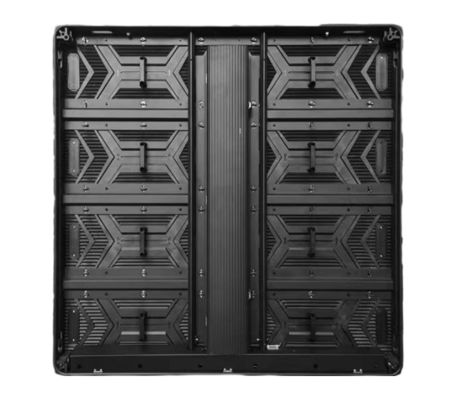

Concealed Wiring: Clean backside design enhances aesthetic presentation.

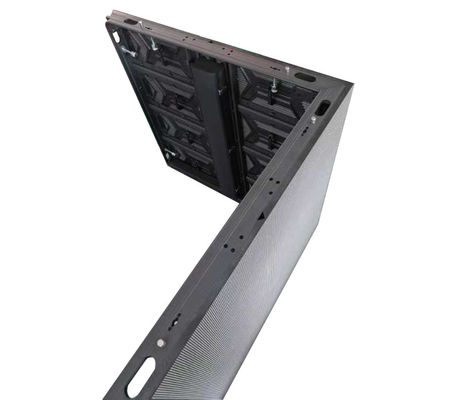

Creative Splicing: Supports 90° right-angle connections and curved/folding configurations.
Robust Construction: High-precision die-cast aluminum frame ensures flat display surface.
Weather Resistant: IP65 front/IP54 rear rating with wide operating temperature range (-10°C to 60°C).
Energy Efficient: Average consumption 218W/m² (max 650W/m²) with 100,000-hour lifespan.

Application Scenarios

Outdoor Advertising: Billboards, commercial squares, and public signage
Events & Entertainment: Stage backdrops for concerts and live events
Public Information: Airports, train stations, and stadium displays
Creative Installations: Architectural facades, retail spaces, and exhibitions

For more information, please visit www.gracevisual.us
