Outdoor LED Display 5000nits Brightness 23.5kg Front Service IP65

Outdoor LED Display 5000nits Brightness 23.5kg Front Service IP65
Outdoor LED Display 5000nits Brightness 23.5kg Front Service IP65 Outdoor LED Display 5000nits Brightness 23.5kg Front Service IP65 Outdoor LED Display 5000nits Brightness 23.5kg Front Service IP65 Outdoor LED Display 5000nits Brightness 23.5kg Front Service IP65 Outdoor LED Display 5000nits Brightness 23.5kg Front Service IP65

Large Image :  Outdoor LED Display 5000nits Brightness 23.5kg Front Service IP65

Product Details:
Place of Origin: China
Brand Name: Grace Visual
Certification: CCC, CE, ETL, RoHS
Model Number: ORA
Document: OE.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 6
Packaging Details: Flight case
Delivery Time: 7-10 days
Payment Terms: T/T
Supply Ability: 500000
Contact Now
Detailed Product Description
Module Dimension(WxH): 500x250mm/ 19.68"x9.84" Panel Dimension(WxHxD): 1000x1000mm / 39.37"x39.37"
No. Of Module/panel(WxH): 2x4 Panel Material: Die-casting Aluminum
Panel Weight: 23.5kg( 51.8lbs) Gray Scale: 16bit
Contrast Ratio: 4000:1 Refresh Rate: 3840hz
Brightness: >=5000nits Viewing Angle(H/V): 140/120
Expected Lifetime: 100,000hrs Max. Stacking/Hanging: 10
Service: Front IP Rating(Front/Rear): IP65/IP54
Certification: CCC,CE,ETL,RoHS
Highlight:

Outdoor LED display 5000nits brightness

,

Front service LED display IP65

,

Outdoor advertising display 23.5kg

Commercial Outdoor LED Screen

Ultra Lightweight 23.5kg | Seamless Splicing | High Brightness ≥5000nits | Hidden Wiring | Front Service Access | Perfect for Airports, Malls, Sports Arenas

Product Specifications
Attribute Value
Module Dimension(WxH) 500x250mm/ 19.68"x9.84"
Panel Dimension(WxHxD) 1000x1000mm / 39.37"x39.37"
No. of Module/panel(WxH) 2x4
Panel Material Die-casting Aluminum
Panel Weight 23.5kg(51.8lbs)
Gray Scale 16bit
Contrast Ratio 4000:1
Refresh Rate 3840hz
Brightness ≥5000nits
Viewing Angle(H/V) 140/120
Expected Lifetime 100,000hrs
Max. Stacking/Hanging 10
Service Front
IP Rating(Front/Rear) IP65/IP54
Certification CCC,CE,ETL,RoHS
OE Series LED Display Features
Key Advantages

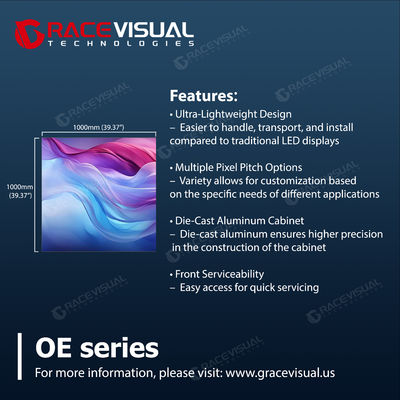

  • Ultra-Lightweight Design
    Each panel weighs only 23.5kg (51.8 lbs), significantly reducing structural load and easing installation and transport.
  • Multiple Pixel Pitch Options
    Available in 3.9mm, 4.8mm, 6.2mm, 7.8mm, and 10.4mm to meet various resolution and viewing distance requirements.
  • Stunning Visual Performance
    • 16-bit grayscale and 4000:1 contrast ratio for rich color depth
    • High brightness ≥5000 nits for excellent visibility even in direct sunlight
    • Ultra-high 3840Hz refresh rate ensures smooth playback and camera-friendly display
Advanced Product Features
  • Tool-Free Module Design
    Fast-lock module system allows for quick, easy maintenance and replacement.

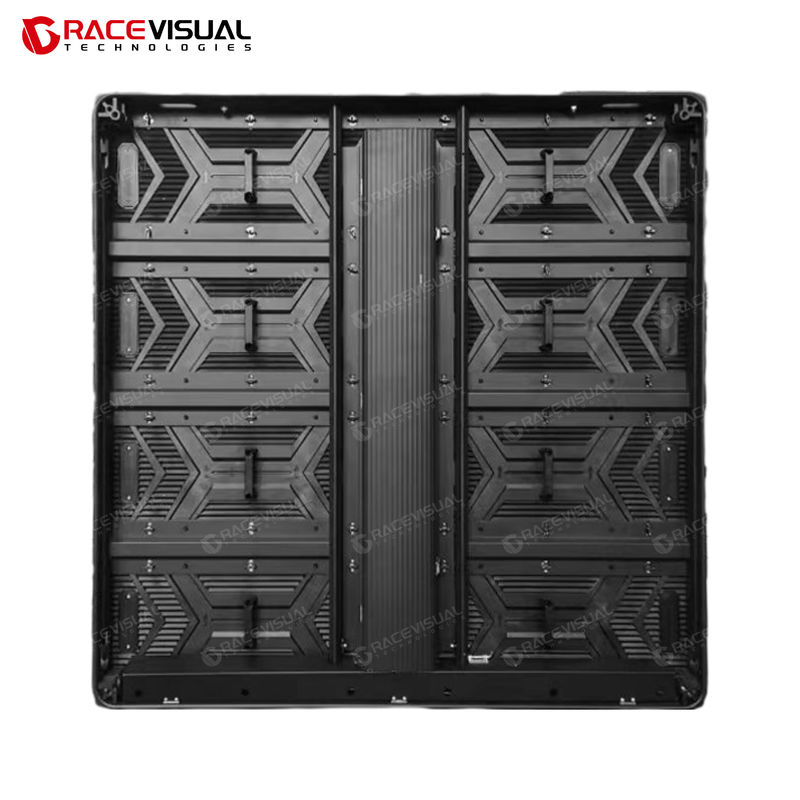

  • Concealed Wiring Structure
    Clean and neat backside design improves overall aesthetics and project presentation.
  • Front Service Support
    Enables installation and maintenance in limited spaces, enhancing flexibility.
  • High-Precision Die-Cast Aluminum Frame
    Ensures seamless splicing and a flat display surface for consistent visuals.

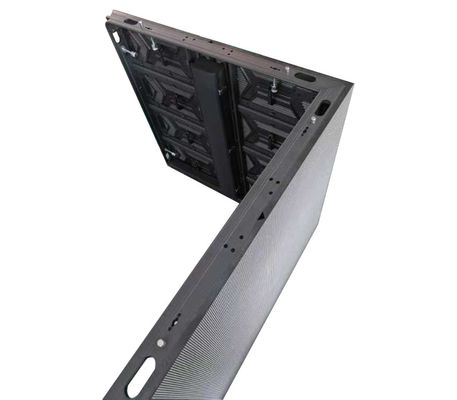

  • Creative Splicing Support
    Capable of 90° right-angle connection and curved/folding screen setup, ideal for creative structures like columns and corners.
  • Excellent Weather Resistance
    • IP65 (front) and IP54 (rear) ratings for reliable outdoor performance
    • Operating temperature: -10°C to 60°C, with 10%-60% humidity tolerance
  • Energy Efficient & Long-Lasting
    • Average power consumption: 218W/m²; Max: 650W/m²
    • Long service life up to 100,000 hours ensures low TCO
Ideal Applications
  • Outdoor Advertising & Media
    Ideal for billboards, commercial squares, and public signage with high brightness and weather durability.
  • Stage & Event Backdrops
    Perfect for concerts and live events with high refresh rate and stacking/hanging support.
  • Transportation & Public Info Display
    Suitable for airports, train stations, stadiums, and other public venues.
  • Creative Installations
    Supports custom and artistic setups for exhibitions, architectural facades, retail installations, and more.

For more information, please visit www.gracevisual.us
