640×480mm LED Display Panel | BUD Pro | Lightweight Aluminum Cabinet | Easy Wall-Mount Installation

BUD Pro Series LED Display – Product Introduction

The BUD Pro Series by Grace Visual Technologies offers a cutting-edge LED display solution featuring exceptional visual performance, energy efficiency, and easy front-access maintenance. Designed with versatility and reliability in mind, it's an ideal choice for various indoor applications such as retail environments, corporate spaces, event venues, and premium digital signage installations.

Key Features

• Multiple Pixel Pitch Options
  Available in pixel pitches ranging from 1.25mm to 2.5mm, catering to high-resolution, close-viewing applications.

• Superior Visual Performance

  • High contrast ratio of 4000:1 for deep blacks and vivid images

  • 16-bit grayscale ensures accurate color reproduction and rich detail

  • Ultra-high refresh rate of 7680Hz, ideal for live broadcasts and motion-intensive content

  • Brightness ≥500nits, suitable for a wide range of indoor lighting conditions

  • Ultra-wide viewing angle of 160° horizontal / 140° vertical, ensuring visibility from multiple angles

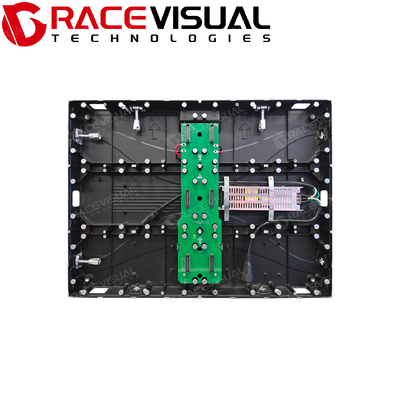

• Front Access Design for Easy Installation & Maintenance

  • Fully front-serviceable modules simplify wall-mount installations and post-installation servicing

  • Cableless module design reduces complexity and improves reliability

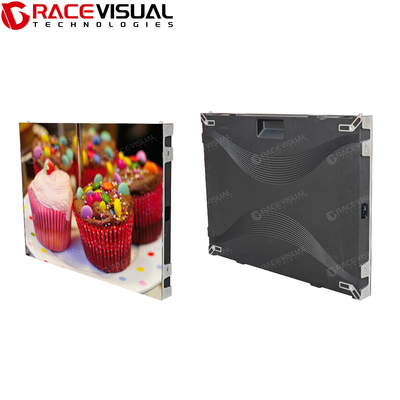

• Lightweight & Seamless Panel Design

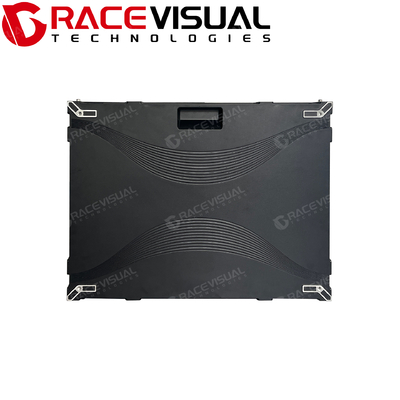

  • Made with die-casting aluminum, each panel weighs only 7.2kg (15.87lbs)

  • Standard panel size: 640×480×85mm (25.2"×18.9"×3.3"), with a 4:3 aspect ratio

  • Seamless splicing and modular flexibility

• Universal Module Compatibility

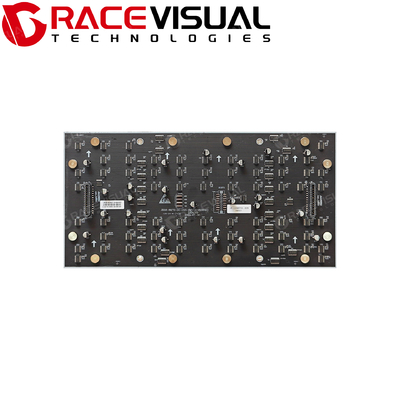

  • LED modules are designed to be interchangeable (left/right), reducing inventory variety and simplifying configuration

• Energy-Efficient and Long-Lasting

  • Avg. power consumption: 64W/panel, Max: 192W/panel

  • Expected lifespan: 100,000 hours, ensuring long-term value

Applications

• Retail Stores – Captivate shoppers with vibrant advertising and promotional displays

• Corporate Environments – Ideal for boardrooms, lobbies, and executive presentations

• Events & Exhibitions – Perfect for dynamic backdrops, real-time displays, and live content

• High-End Digital Signage – Airports, malls, transportation hubs, and other public information systems

Additional Technical Highlights

• LED Type: SMD1010 / SMD1212 / SMD1515 / SMD2121 (varies by model)

• Pixel Density: Up to 640,000 pixels/m²

• Panel Resolution (BUDP-1.2 example): 512×384 pixels

• Front/Rear Protection: IP40/IP21

• Certifications: CCC, CE, ETL, RoHS

• Operating Temperature & Humidity: -10°C to 60°C / 10% to 60% RH
