| Product Name: | P8mm Outdoor Front Service LED Display | Pixel Pitch: | 8mm |
|---|---|---|---|
| Pixel Configuration: | SMD 3535 | Protection Rating: | IP65 |
| High Light: | led display sign,led video display board |
||
Outdoor Advertising Front Service Led Display Billboard IP65 , 8mm Led Screen
Quick Detail:
1. Wide Viewing Angle 140 degree (H/V)
2. Waterproof IP65
3. Super brightness.
4. High cost effective

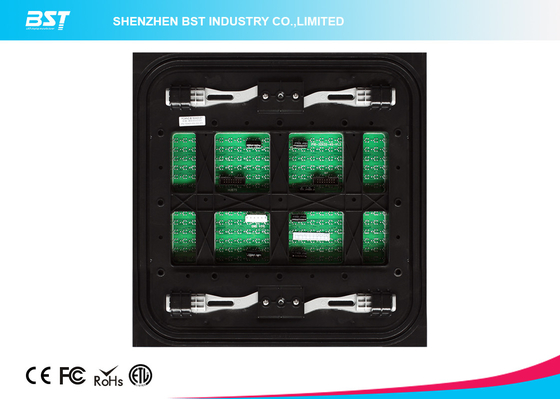

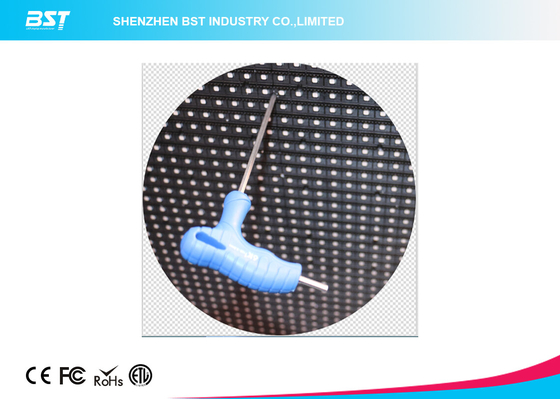

5. Front and rear cabinet access maintenance
6. 100% fully test
Characteristics:
1, High quality and high performance
2, Supplied by high strictly selected SMD3535 LED
3, Perfect color blending and comfortable visual effect
4, 2 years warranty and long term tech-support
5, Excellent uniformity and no mosaic
6, Available models: P6, P8, P10, P16
Applications:

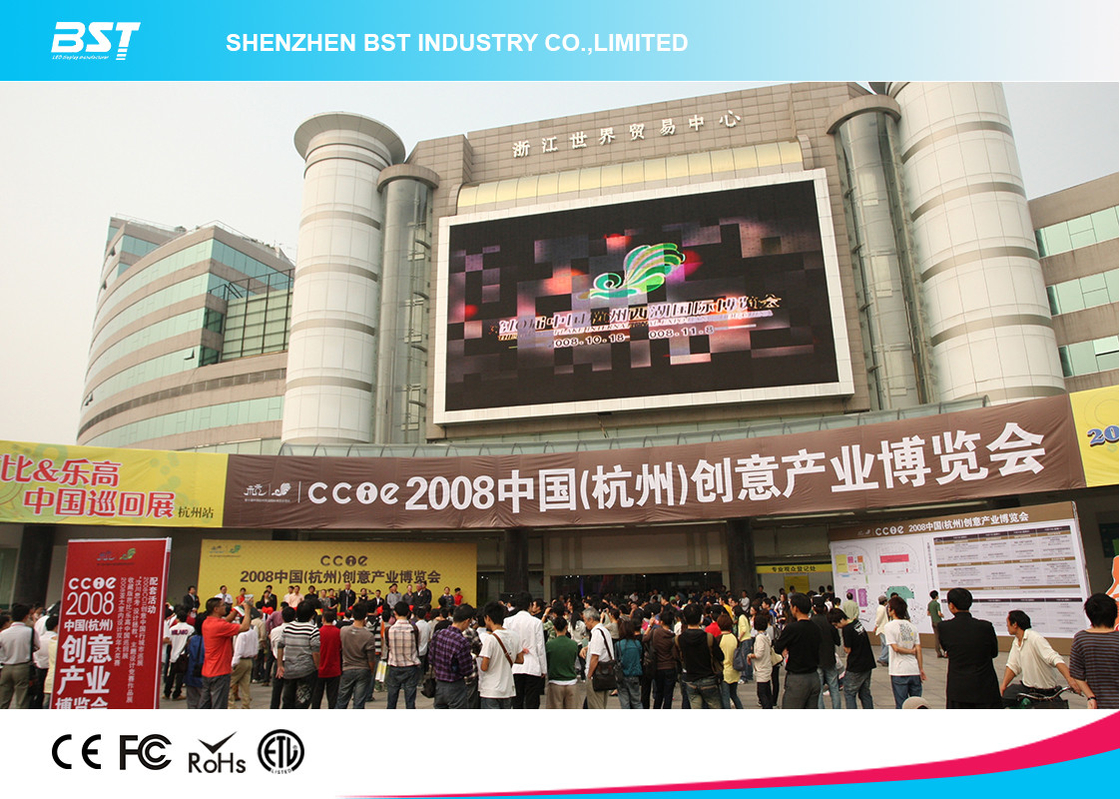

Outdoor full color digital billboards are very popular in outdoor advertising field. This type digital
billboard is widely used outdoor plaza, storefront, outdoor building,stadium,shopping mall,cross road,highway,
airport etc;
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
BST-OFS-8 |
|
Pixel Pitch |
8mm |
|
Module Size |
256mm*256mm |
|
Module Resolution(pixels) |
32*32 |
|
Pael Size |
1024mm×768mm |
|
Panel Resolution(pixels) |
128×96 |
|
Pixel Configuration(RGB) |
SMD3535 |
|
Pixel Density(pixels/m2) |
15625 |
|
Brightness(cdm2) |
>5500 |
|
Best Viewing Distance(m) |
8-100 |
|
Max.Power Consumption(W/m2) |
>1000 |
|
Waterproof Level |
IP65 |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
3535 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Operating Tempreture |
–20~50°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥1500HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50000 hours |
|
Lifespan |
≥100000Hours |
|
Working Voltage |
220V±10% OR 110V±10% |
|
Drive Mode |
Constant 1/4 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Control System |
LINSN |
|
Software |
LED studio 10.0 |
|
Installation |
Wall mount, and stand structure |
