Product Details:
Payment & Shipping Terms:
|
| Weight: | 65Kg | Outdoor Waterproof: | IP65/IP54 |
|---|---|---|---|
| Brightness: | 6500nits | Viewing Angle: | 140 Degree |
| Cabinet Size: | 1280mmX960mm | Drive IC: | MBI5124 |
| High Light: | curved led panels,hd led screen |
||

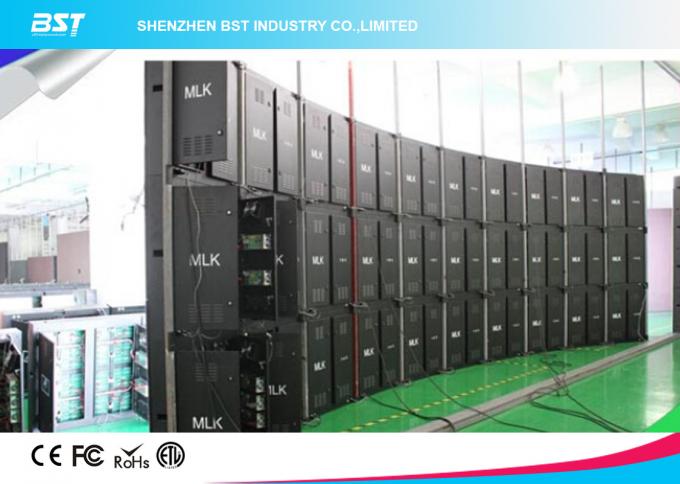

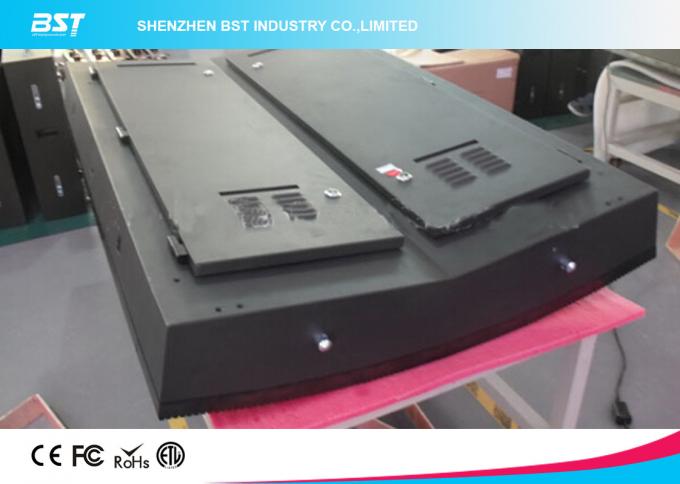

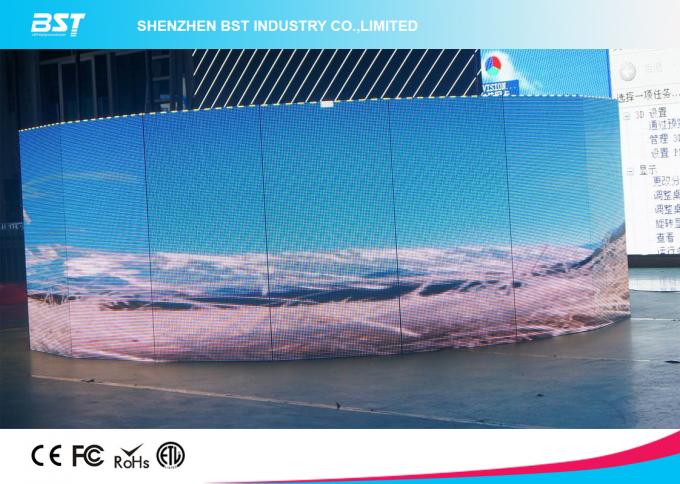

P10 SMD LED Display 6500cd / m2 , Curved LED Video screen 1280 x 960mm Cabinet Size
Products Description:
1. Pixel Pitch:10
2. Pixel Density:10000dots/m2
3. Brightness:>6500cd/m2
4. Refresh Rath:>1500Hz
5. Protection: Outdoor IP65
6. Aerodynamic Design:wind resistant- ideal for large scale setups.
7. Grayscale processing&color calibration techniques ensures amazing graphic quality
8. Lower requirement of Steel structure, 35% structure cost saved
9. 3 Highs: high gray scale, high refresh, high contrast, with vivid display effect;
10. 4 Lows: low power consumption, low noise created, low transportation cost and low installation cost;
11. Various applications: suit for hanging up, piling and fixing installation. Usage: outdoor information publish, outdoor advertising, etc.;
12. 2 Wides: wide compatiblity and wide viewing angle. Models with different pixel pitches are compatible in one led display, horizontal view angle is 140 deg. and vertical 140 deg.;
Specifications:
|
LED Display Series |
BST-OCV-8 |
BST-OCV-10 |
BST-OCV-16 |
|
Pixel Pitch(mm) |
8 |
10 |
16 |
|
Pixel Density(dots/m2) |
15625 |
10000 |
3906 |
|
Brightness(cd/m2) |
>6500 |
>6500 |
>6000 |
|
Color Temperature(after calibration)K |
6500 |
6500 |
6500 |
|
Module Size(W*H*D)(mm) |
1024*1024 |
1280*960 |
1024*1024 |
|
Weight(kg/Panel) |
65 |
75 |
65 |
|
Weight(kg/m2) |
65 |
65 |
65 |
|
LED Type |
SMD3535 |
SMD3535/DIP346 |
3mm Oval lamp |
|
LED Chip |
Epistar |
Epistar |
Epistar |
|
Horizontal/Vertical Viewing Angle(º) |
H140º /V140º |
H140º /V140º |
H120º /V70º |
|
Recommended Viewing Distance(m) |
8m-200m |
10m-200m |
16m-200m |
|
Contrast |
2000:1 |
2000:1 |
2000:1 |
|
Refresh Rate(Hz) |
>1500Hz |
>1500Hz |
>2000Hz |
|
Grey Scale(bit) |
R’G’B’16bit |
R’G’B’16bit |
R’G’B’16bit |
|
Frame Rate(Hz) |
50/60Hz |
50/60Hz |
50/60Hz |
|
Life Time(H) |
≥100000Hours |
≥100000Hours |
≥100000Hours |
|
Protection |
Outdoor |
Outdoor |
Outdoor |
|
Power Supply |
Singular Power Supply |
Singular Power Supply |
Singular Power Supply |
|
Max Power Consumption(W/M2) |
900W |
800W |
800W |
|
Avr Power Consumption (W/M2) |
500W |
400W |
400W |
|
Working Temperature |
-25-60℃ |
-25-60℃ |
-25-60℃ |
|
Working Humidity |
10%-95% |
10%-95% |
10%-95% |
|
Driving Method |
1/4 |
1/4 |
Static |
|
Driving Chip |
MBI5124 |
MBI5124 |
MBI5124 |
|
Cabinet Material |
Epoxy paint coated, aluminum / iron |
Epoxy paint coated, aluminum / iron |
Epoxy paint coated, aluminum / iron |
|
Control Input |
DVI/HDMI/HDSDI |
DVI/HDMI/HDSDI |
DVI/HDMI/HDSDI |
|
Malfunction dot rate |
1 / 10000 |
1 / 10000 |
1 / 10000 |

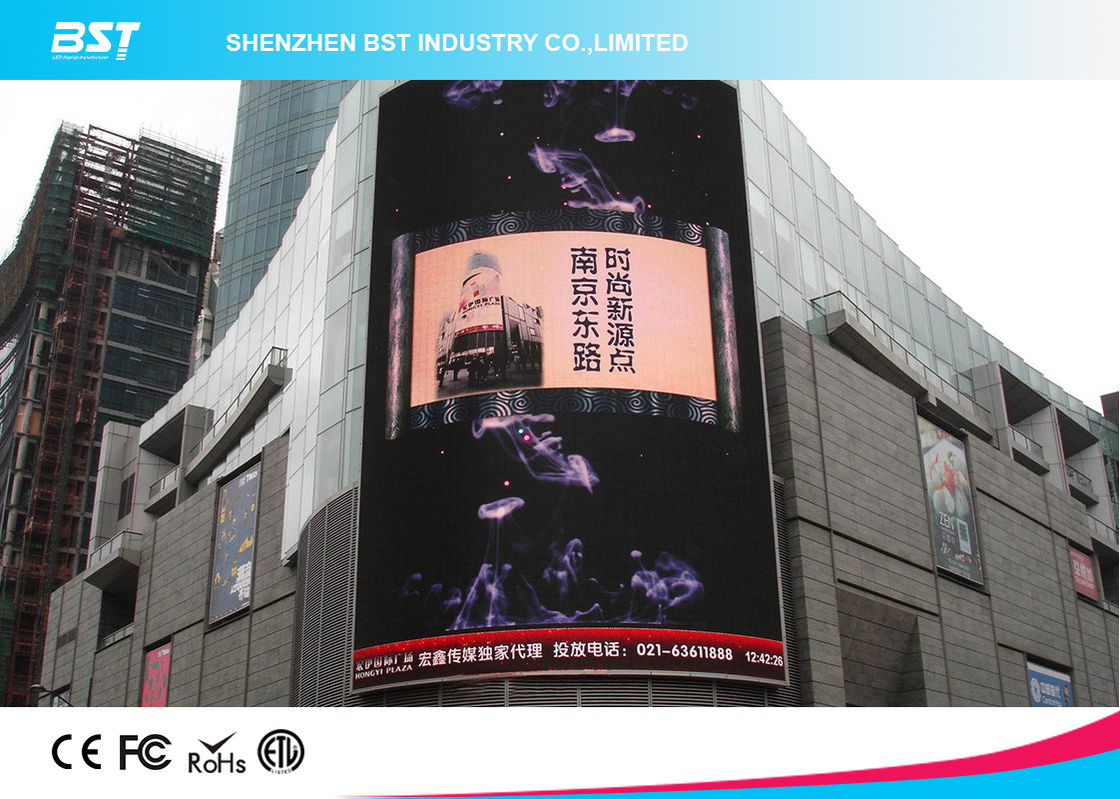

Applications:
High way, commercial advertising, Stadium perimeter, mobile media, entertainment events, business establishments, outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate etc;
