| Pixel Pitch: | 3mm | Led Type: | SMD2121 |
|---|---|---|---|
| Cabinet Size: | 576mm X 576mm | Control System: | Linsn,NOVA |
| Color: | Full Color | Brightness: | > 1500nits/sqm |
| Highlight: | indoor led display screen,advertising led display screen |
||

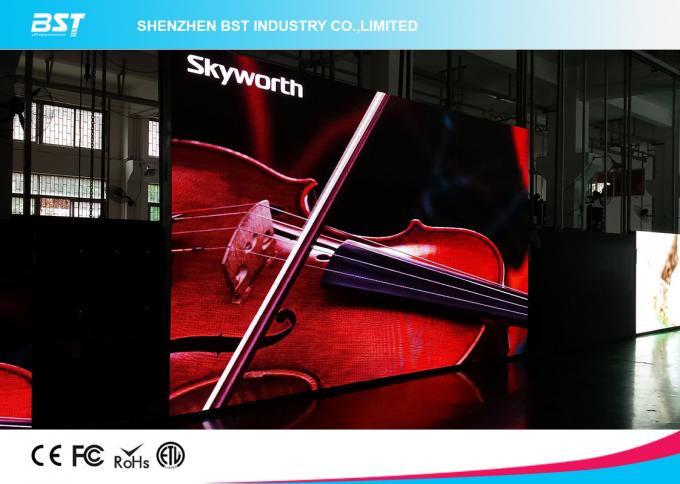

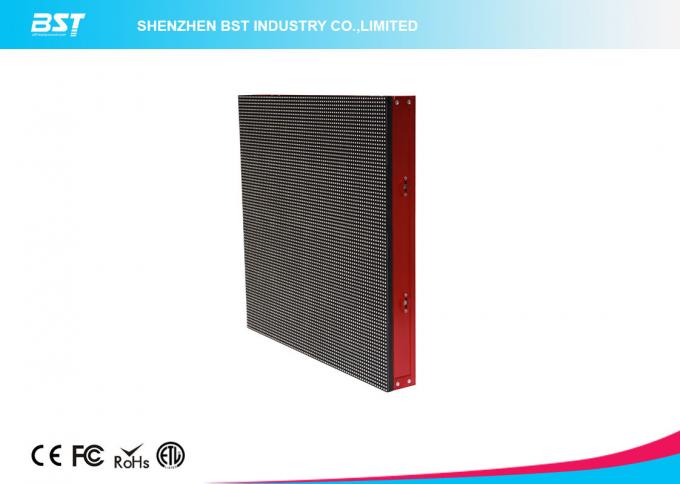

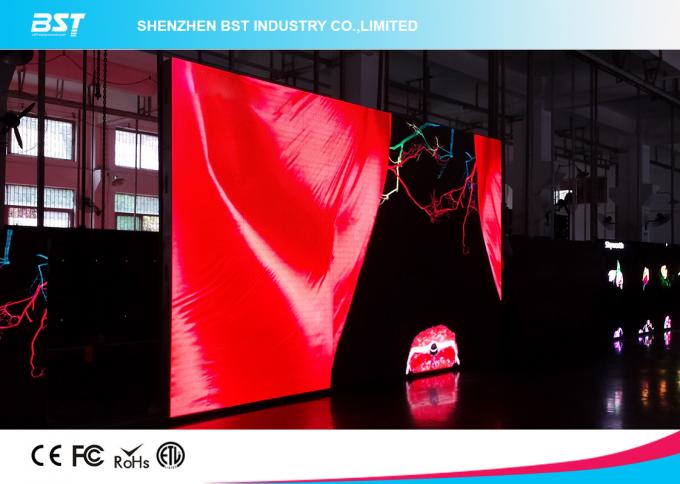

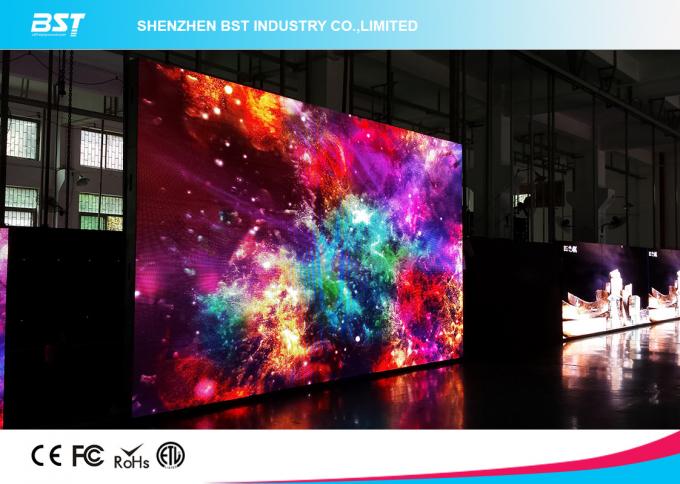

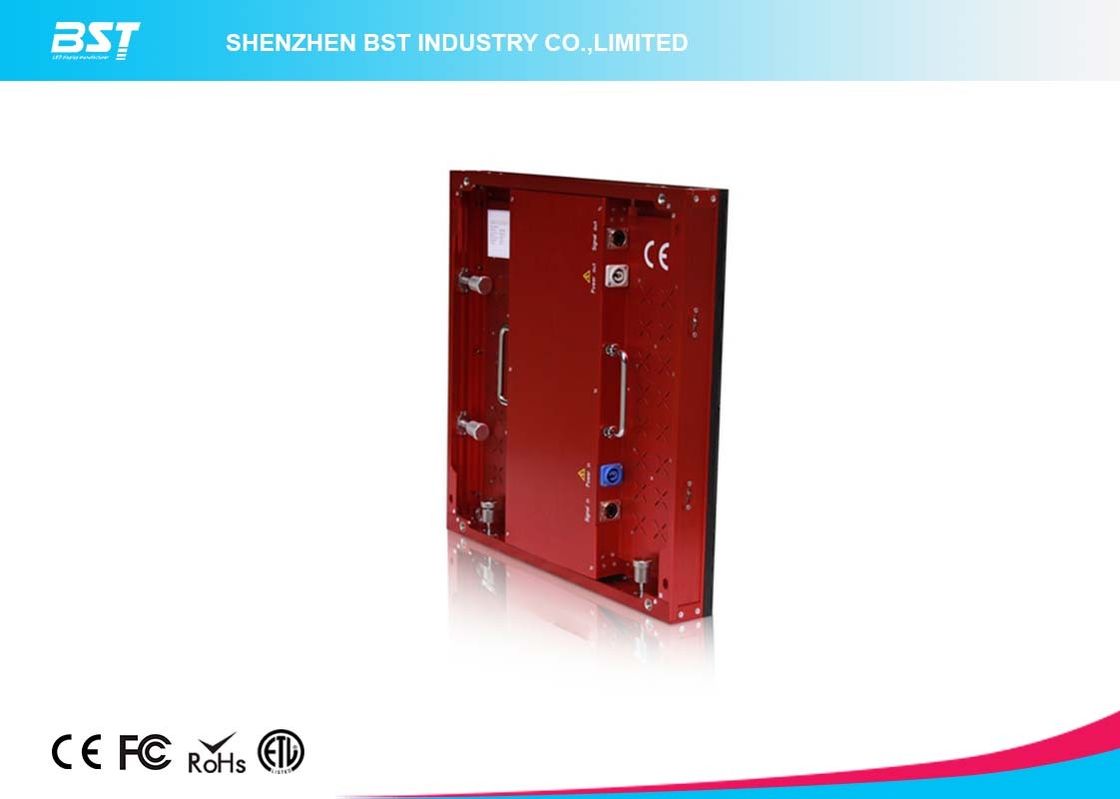

High contrast ratio Indoor Advertising Led Display , P3 SMD2121 Full Color LED Screen
Quick Detail:
High resolution of indoor full color LED display;
Cabinet supper lightweight, thickness 65mm, saving transportation cost and
labor intensity;
Integrated encapsulation SMD2121 LEDs is blessed with higher reliability;
Good color mixture from far or very near distance;
Good color consistency transparent picture;
Good picture uniformity;
Wide viewing angle;
Higher contrast ratio up to 4000:1
The most economical and rational solution for 3 in 1 full color technology.
Macromolecular flexible mask with glareless surface and better contrast ratio;
Nanotechnology and unique positioning system, making the installation and
dismantlement in one step;
Description:
Full color indoor P3 LED screens with integrated 3 in1 SMD full color LED modules as unit is another deeper revolutionary development in the LED screens industry. It shows a super fine and high quality picture on the LED screens and has a much wider viewing angle than the full color DIP lamps LED screens. It rejects the deficiencies of the traditional LED lamp outdoor display screens.
The 3mm 3 in1 SMD has been the outmost smallest pitch of conventional LED lamp display, but BST LED Screens has launched a big quantity of P3mm indoor LED displays into he market, bringing people it's best video picture in daytime.
BST provide full maintenance for a lifetime and charge for the raw materials only and also provide lifetime consultation by E-mail, call, Skype or other ways for free.
We provide CAD drawing on how to fix up the display for free and some other expert suggestion and the operation manual, software, test report and so on.
We provide the technology training for free, which contains the operation training and maintenance training in the factory.
Applications:
Widely used in Advertising media,Concert, TV Show,Super mall, Entertainment,School,Government,Trading conversation,Commodity fair,Exhibition,Cinema,News conferences, Meeting room,Airport,Hotel,Station Hall and other Public Places
Specification:
|
BST- IA3 ( Indoor LED Screen P3 3in1 SMD )
|
|
|
Pixel Pitch |
3mm |
|
Working Voltage |
AC110V- 220V±10% |
|
Power Consumption |
Max 1000W / sqm |
|
Average 400W / sqm |
|
|
LED Brand |
Epistar LED Chips |
|
Maximum Brightness |
> 1,500 nits / m² |
|
Pixel Configuration |
1R1G1B |
|
Pixel Size |
3.0 mm (circle) |
|
Pixel Density |
111111 Pixels/m² |
|
Drive Mode |
1/16 Scanning |
|
Grade Level |
RGB 4096 grade/each |
|
Best Viewing Distance |
<3m ~ >150m |
|
(9ft ~ >492ft) |
|
|
Viewing Angle |
Horizontally >140° / Vertically >140° |
|
Screen Lifetime |
≥ 100,000 hours |
|
Driving IC |
MBI5124 |
|
Refresh Frequency |
≥ 800HZ/s |
|
(1,000+ HZ/s available) |
|
|
Change Frame Frequency |
≥ 60Hz |
|
Protection Level |
IP43 |
|
Control System ¹ |
Simple LED Video Control System |
|
or Advanced LED Video Processor |
|
|
Ambient Temperature |
-20°C ~ +85°C |
|
(-40°C ~ +85°C available ) |
|
|
Relative Humidity |
10%~90% |
|
Screen Weight |
Steel: ≤ 16Kg/cabinet (35 Lbs) |
|
Aluminum: ≤ 12Kg/cabinet (26 Lbs) |
|
|
Input Signal |
RF S-Video RGB RGBHV |
|
YUVYC, etc. |
|
|
Brightness Adjustment ² |
256 levels of each color (RGB) can be adjusted manually and |
|
8 levels of each color can be adjusted automatically. |
|
|
LED Module Size |
192mm x 192mm |
|
(64 pixels x 64 pixels) |
|
|
LED Cabinet Size |
576mm X 576mm |
|
(128 pixels x 128 pixels) |
|
|
Cabinet Material |
Steel or Aluminum |
|
Package Material |
Wooden Case or flight case |
|
Warranty |
2 years |
