Product Details:
Payment & Shipping Terms:
|
| Application: | Outdoor Smd Led Display Screen | Pixel Pitch: | 8mm |
|---|---|---|---|
| Pixel Configuration:: | SMD1R1G1B | IP Rating(Front/Rear):: | IP65/IP54 |
| Viewing Angle:: | 140degree | Input Voltage:: | 110-220 VAC/+/- 10% |
| High Light: | curved led panels,hd led screen |
||
Large Video SMD 3535 Curved LED Panel , 8mm Led Screen for Outdoor Wall advertising
Products Description:

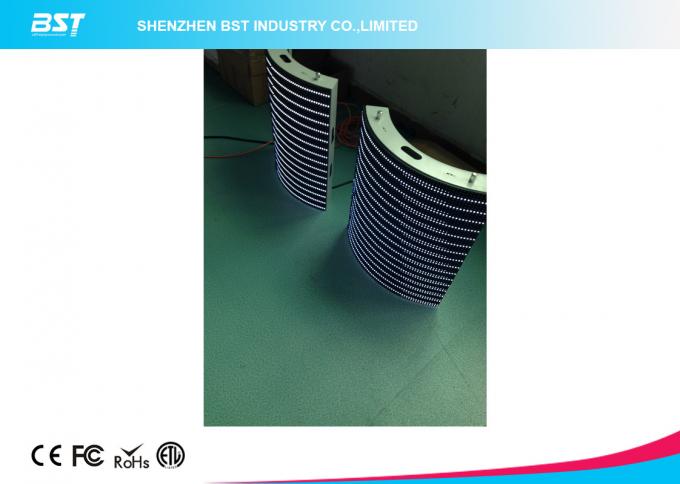

1, 45degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
2, Auto power on/off, work unattended & Electrical surge protection.
3, High brightness: > 6500cd / sqm, can be adjustable
4, Elegant structure, highly waterproof IP65 protection rating and excellent heat dissipation.
5, Customized LED display size and structure
6, 2 year warranty and long term after-sale service
7, General Module design makes perfect flatness and uniform on the surface
8, Easy and fast installation and maintaining design
9, Performance advantage: vivid and colorful display, quick response
10, Stable and short delivery time
11, High quality with competitive price

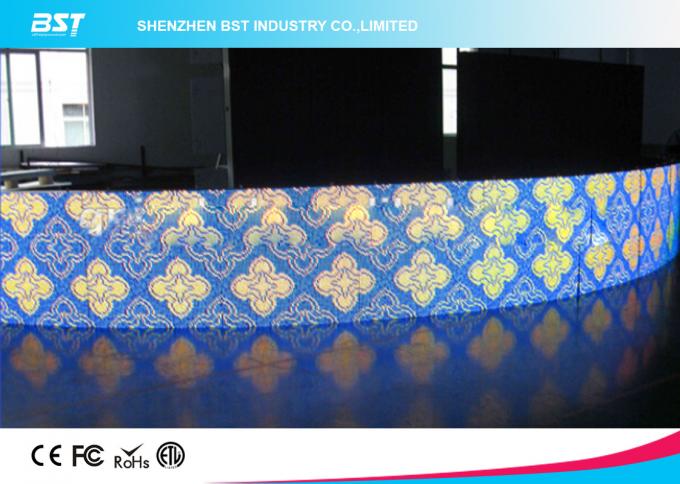

12,It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
13, We make best design with high cost- efficiency due to different demands and we can offer OEM service
as well.
Specification:
|
BST-OCV-8 (Pitch 8mm outdoor full color) |
|
|
Colour temperature |
5000~9000 k |
|
Pixel structure |
SMD3535, 1R1G1B |
|
Input voltage |
AC 110/220 volts |
|
Pixel pitch |
8mm |
|
Module resolution |
32 pixel(W) * 32 pixel mm(H) |
|
Pixel density |
15625 dots/㎡ |
|
Cabinet area |
1.048 sq. meter |
|
Luminance |
6500cd/㎡ |
|
Cabinet dimension |
1024 * 1024mm |
|
Module dimension |
256mm(W) * 256mm(H) |
|
Optimal visual distance |
>10m |
|
Visual angel |
140 / 140 degree (H/V) |
|
Max power consumption |
≤800w / ㎡ |
|
Refresh frequency |
≥1500HZ |
|
Brightness adjustment |
Adjust according to the environment |
|
brightness software (0%-100%adjustable) |
|
|
Gray scale |
point by point 4096 gray grade levels of |
|
each color, 16 bits γ correction available |
|
|
Drive mode |
Static, constant current |
|
Cabinet resolution |
128 * 128 |
|
Frame frequency |
≥60HZ |
|
Average power consumption |
≤600w / ㎡ |
|
Operation temperature |
﹣40℃~ +65℃ |
|
Input signal |
S-video, RF, RGB, Yuv, YC, composite… |
|

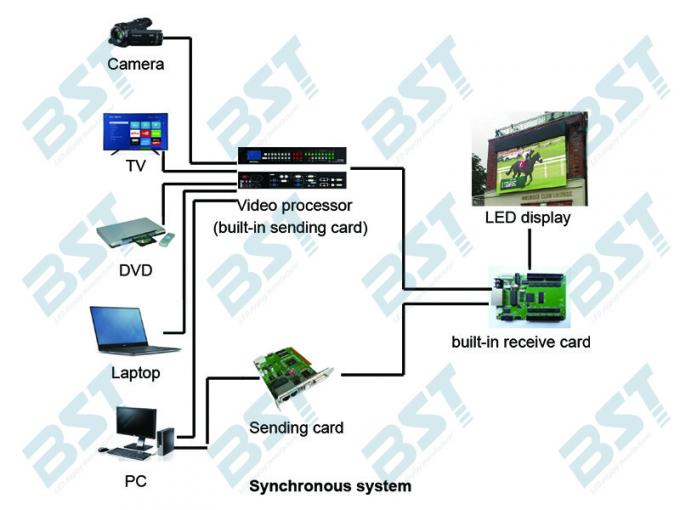

Control system |
DVI card + master control card + receiver card |
|
MTBF |
>5000 hrs |
|
Operation humidity |
10％～90％ |
|
Life span (50% brightness) |
100, 000 hrs |
|
Malfunction dot rate |
1/10000 |
|
Cabinet material |
Epoxy paint coated, aluminum / iron |
|
Ingress protection rate (Front/ rear) |
IP65 / IP54 |
|
Application: |

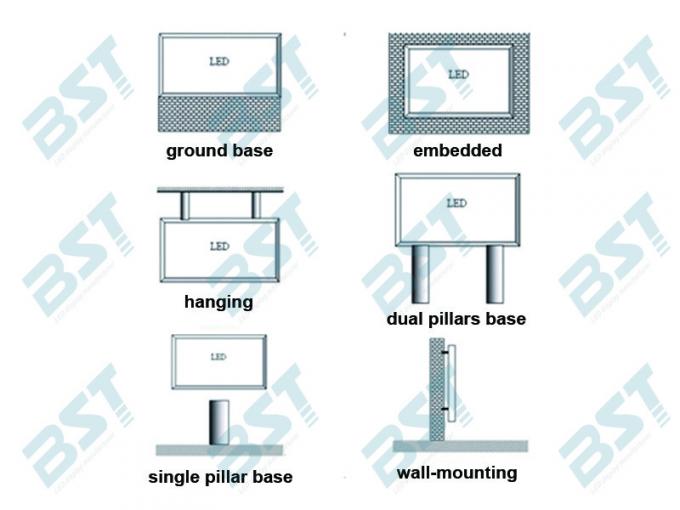

Rental / Permanent installation available |

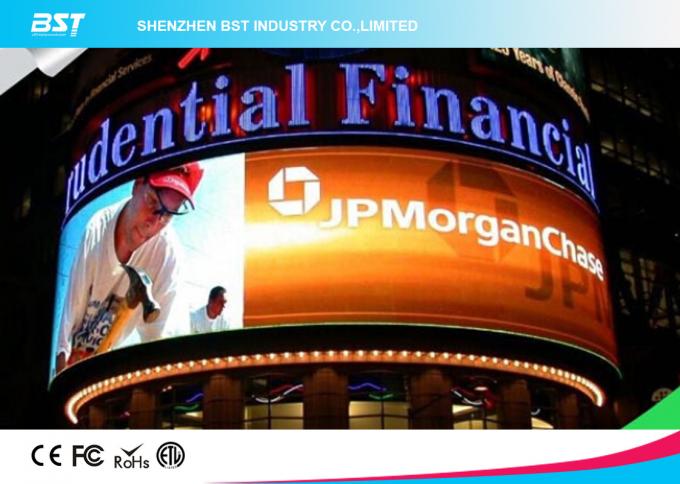

P8mm outdoor curved LED video panel
Application:
Video, graphics, animation, advertising, stadiums, studio, stadium, sports, exhibitions,shopping malls, banks, stock exchange centers, bus station, schools, telecommunications, customs, railways, airports, harbors, etc;
1. Diversified products :
Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.
2. Experienced&Professional:
9 years manufacturing experience on LED displays, professional workmanship & design.
3. Best raw materials:
Taiwan Epistar LED chip,high quality,high brightness and long life span.
4. Competitive price:
100% factory price,competitive and reasonable price.
5. Strict quality control:
100% testing before packing , make sure our quality before delivery.
6. Quality gurantee:
All our LED display screens is more than 100,000 hours life span.
7. Long warranty:
two year warranty, any quality problem during warranty time will be handled .
8. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.
