Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 1.6mm | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Material: | Die Casting Aluminum | Led Type: | SMD1010 |
| Cabinet Size: | 516mm X 345mm | Refresh Rate: | > 1500HZ |
| High Light: | indoor led display screen,advertising led display screen |
||

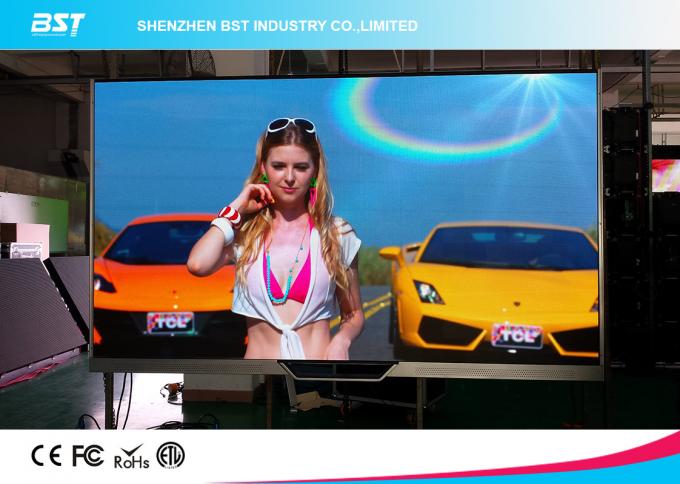

Ultral HD P1.6 SMD1010 Indoor Advertising Led Display For Tv Studio / Trade Show
Quick Detail:
1, It usually use 1/30 scanning to turn down the brightness.
2, First Class SMD1010 3 in 1 Epistar LEDs

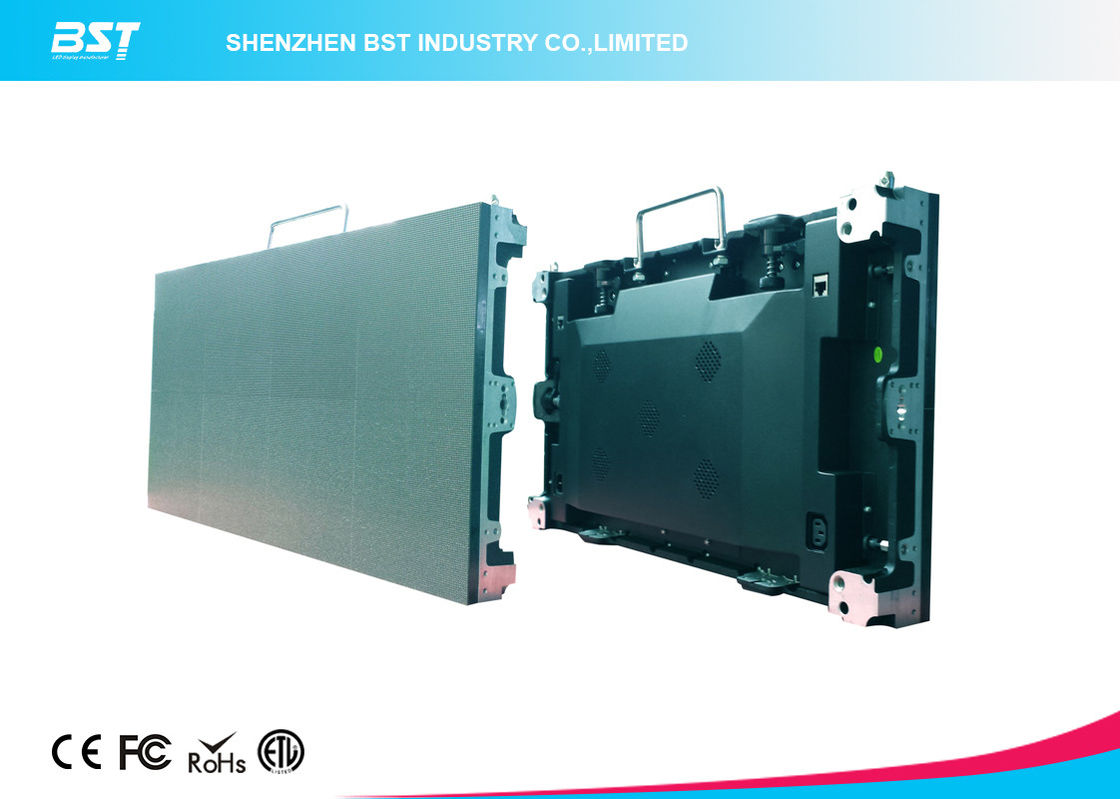

3, Die casting alumminum cabinet ,0.1mm gapline between
4, The module size: 129*145mm,Standard Cabinet size 516*345mm
5, High flatness.Random dismantling, convenient maintenance;
6, Fast locks design, cabinets can be easily assemblied in 5 seconds
7, Ghost-free image;
Description:
(1) PH1.6mm is the smallest pixel pitch for indoor full color LED video display, which has high definition with big pixel density 385,776dots/sqm and large pixels with good and clear image.
(2) Multiplied file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB etc. and also we have three display modes as VGA and DVI. There are also interfaces for Sound signal and video signal.
(3) 4096 grade grey control system and the color are over 4.4trillion.
(4) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(5)Customized design is available,OEM & ODM are welcomed.
(6) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
Applications:
We have a proven track record in the high-end TV studio market; rock solid, flicker free, on-camera performance with full greyscale at low brightnesses.
Competitive Advantage:
The SMD (3-in-1) LED package provides wider viewing angles and extremely close viewing distances.
Advanced video processing produces crystal-clear, detailed images with smooth motion reproductions.
Image feeds delivered in both standard and high-definition formats.
Full-depth image calibration in the factory and in the field provides for a uniform display picture.
Integrates seamlessly with a variety of other BST video products
Area distributor enjoys special discount and protection of sales area.
2 Years guarantee. Only charge for cost of repair after 2 years.
Exclusive and unique solution can be provided by our well-trained and professional engineers and staffs.
BST offer oversea technical support by well-trained engineers if clients required. The relevant costs charge by clients.
Specification:
|
BST-IA1.6mm (Indoor HD Led Display For P1.6mm) |
||
|
Pixel configuration |
SMD1010 1R1G1B 3 in 1 |
|
|
LEDs configuration |
Red:wave length: 625~630nm;300-400mcd |
|
|
Green:wave length: 525~530nm;600-800mcd |
||
|
Blue:wave length: 470~475nm;100-150mcd |
||
|
Pixel pitch(mm) |
1.6 |
|
|
Pixel density(dots/sqm) |
385776 |
|
|
Calibrated brightness(cd/sqm,nit) |
600 nits(adjustable) |
|
|
Calibrated brightness proportion ratio |
R: G: B = 30%:60%:10% |
|
|
Color temperature |
3,500° ~ 9,500° K(adjustable) |
|
|
Contrast ratio |
4,500:1 |
|
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
|
View angle(degree)(50% brightness) |
Horizontal: 140° (70° off center); Vertical: 140° (70° off center) |
|
|
Readability viewing angle |
Horizontal/ Vertical: 160° (80° off center) |
|
|
Color capability |
4.4 trillion |
|
|
Refresh rate(Hz) |
>1500 Hz |
|
|
Frame frequency(Hz) |
>60 Hz |
|
|
Interface port |
DVI interface(DVI connector) |
|
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
|
Protection grade |
IP40 |
|
|
LED Drive |
Constant-current drive |
|
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
|
Signal transmission direction |
Horizontal |
|
|
Operation humidity(RH) |
10-95% |
|
|
Servicing |
Rear serving optional |
|
|
Control mode |
Synchronous & asynchronous available |
|
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
|
Power |
120/240 V AC single phase(50-60Hz) |
|
|
Maximum power consumption(W/SQM) |
1000 |
|
|
Average power consumption(W/SQM) |
400 |
|
|
Screen operation mode(scan/static) |
1/30 |
|
|
Module configuration(Pixels quantities of the module) |
Length |
80 |
|
Height |
90 |
|
|
Module dimensions(mm) |
Length |
129 |
|
Height |
145 |
|
|
Cabinet dimensions(mm) |
Length |
516 |
|
Height |
345 |
|
|
Width |
85 |
|
|
Recommend Optimal Viewing Distance: Minimum & Maximum |
Min |
1.6 |
|
Max |
38 |
|
|
Packing material |
Wooden case/flight case(optional) |
|
